XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302,342

Click highlighted areas on diagram

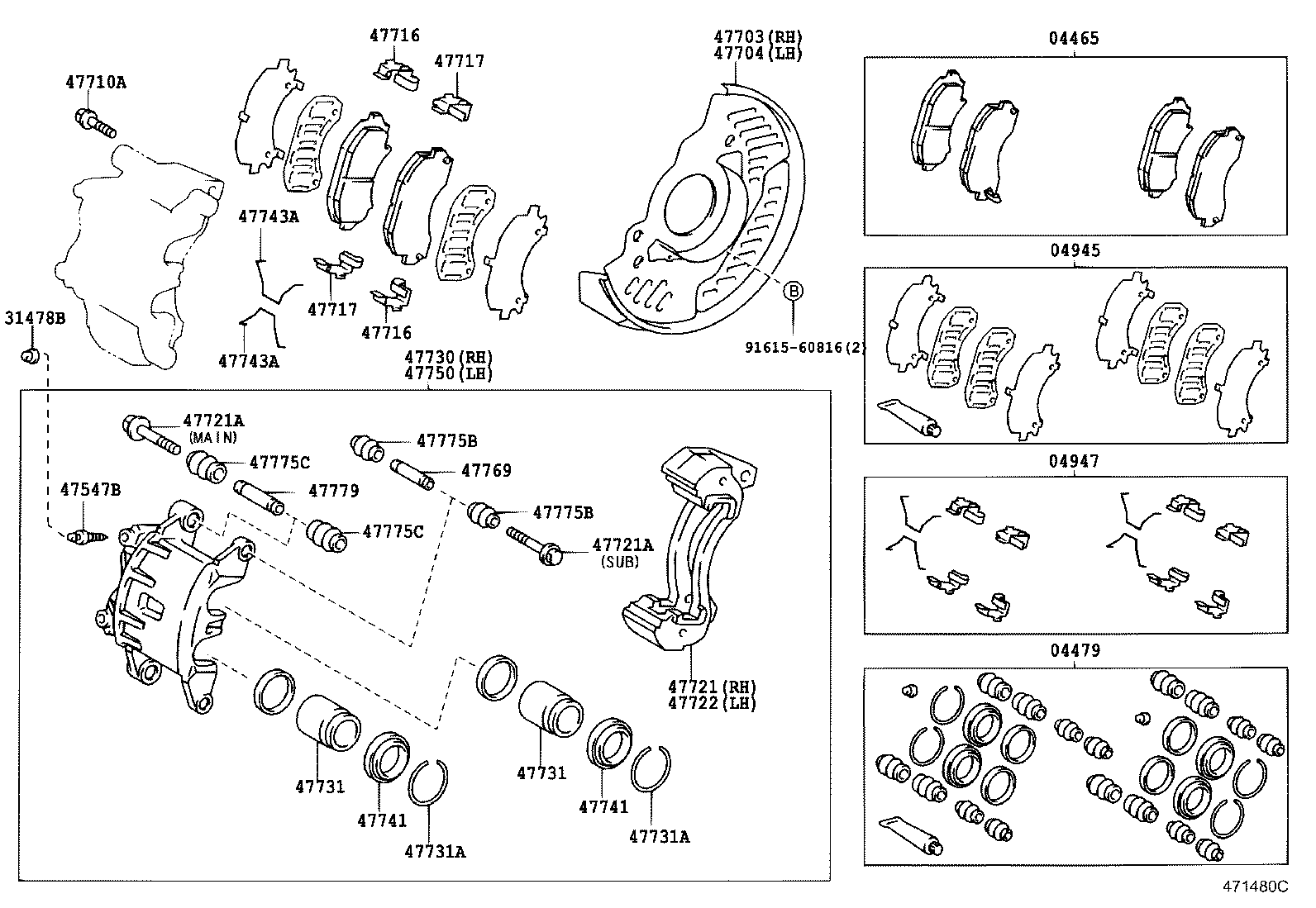

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47710A 47716 47716 47717 47717 47721 47721A 47721A 47722 47730 47731 47731 47731A 47731A 47741 47741 47743A 47743A 47750 47769 47775B 47775B 47775C 47775C 47779 9161560816
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-37030

XZU302,307,342

MARK AISIN T536

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-37010

XZU302,307,342

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-37030

XZU302,307,342

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-36020

XZU302,307,342

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

XZU302,307,342

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

XZU302,307,342

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-37030

XZU302,342

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-37030

XZU302,342

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-16071

XZU302,342

*16-1.5PX30-21.5

 6
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-36020

XZU302,307,342

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-36020

XZU302,307,342

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-36020

XZU302,307,342

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-36020

XZU302,307,342

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-37030

XZU302,342

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-08B87

XZU302,307,342

*8-1.25PX59-27,SUB PIN SIDE

 4
90119-12256

XZU302,307,342

*12-1.25PX75-30,MAIN PIN SIDE

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-08B87

XZU302,307,342

*8-1.25PX59-27,SUB PIN SIDE

 4
90119-12256

XZU302,307,342

*12-1.25PX75-30,MAIN PIN SIDE

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-37020

XZU302,342

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-37030

XZU302,342

 1
47731 - PISTON, FRONT DISC BRAKE
47731-37010

XZU302,307,342

 4
47731 - PISTON, FRONT DISC BRAKE
47731-37010

XZU302,307,342

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

XZU302,307,342

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-61001

XZU302,307,342

 4
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-37010

XZU302,307,342

 4
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-37010

XZU302,307,342

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

XZU302,307,342

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-36020

XZU302,307,342

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-37030

XZU302,342

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-36030

XZU302,307,342

 4
47775B - BOOT, BUSH DUST, NO.1
47775-36040

XZU302,307,342

 8
47775B - BOOT, BUSH DUST, NO.1
47775-36040

XZU302,307,342

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36050

XZU302,307,342

 8
47775C - BOOT, BUSH DUST, NO.2
47775-36050

XZU302,307,342

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-36010

XZU302,307,342

 4
Common parts
91615-60816
