XZU302-TPMMS3 (2000)
Toyota Dyna

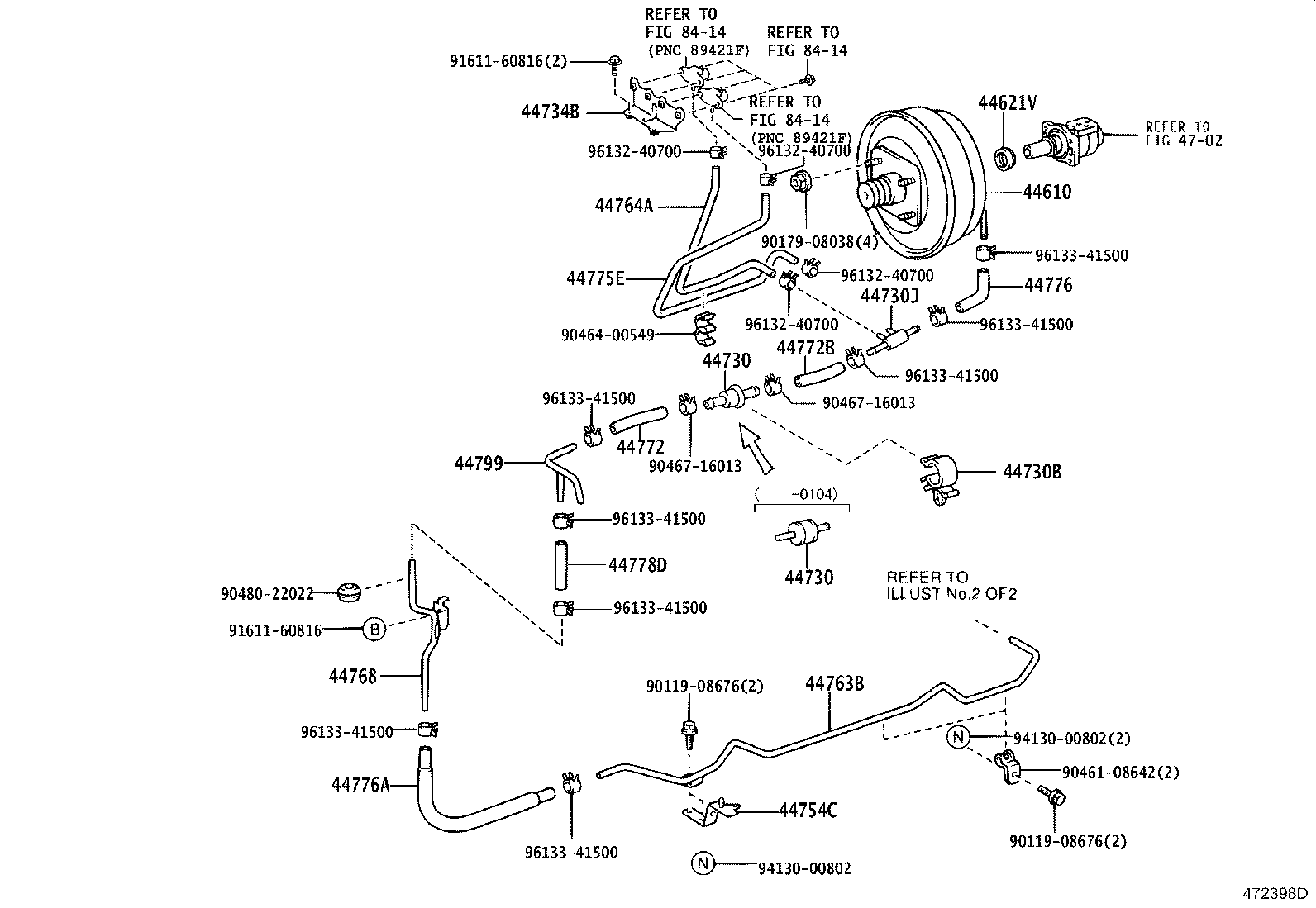

ILLUST NO. 1 OF 2(0010- )XZU302,307,342
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
XZU302,307,342 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20070 |
XZU30#,320,330,34# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20070 |
XZU30#,320,330,34# |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37010 |
XZU30#,320,330,34# |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XZU302,307,342 |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37011 |
XZU302,307,342 |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-37030 |
XZU302,307,342 |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37211 |
XZU302,307,342 |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37090 |
XZU302,307,342 |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37110 |
XZU302,307,342 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37020 |
XZU30#,320,330,34# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-37030 |
XZU302,307,342 |
1 | ||
| 44772-37060 |
XZU302,307,342 |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37100 |
XZU302,307,342 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37050 |
XZU302,307,342 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37170 |
XZU302,307,342 L=380 |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37170 |
XZU30#,320,330,34# |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37010 |
XZU30#,320,330,34# |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90179-08038 | ||||
| 90461-08642 | ||||
| 90464-00549 | ||||
| 90467-16013 | ||||
| 90480-22022 | ||||
| 91611-60816 | ||||
| 94130-00802 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||

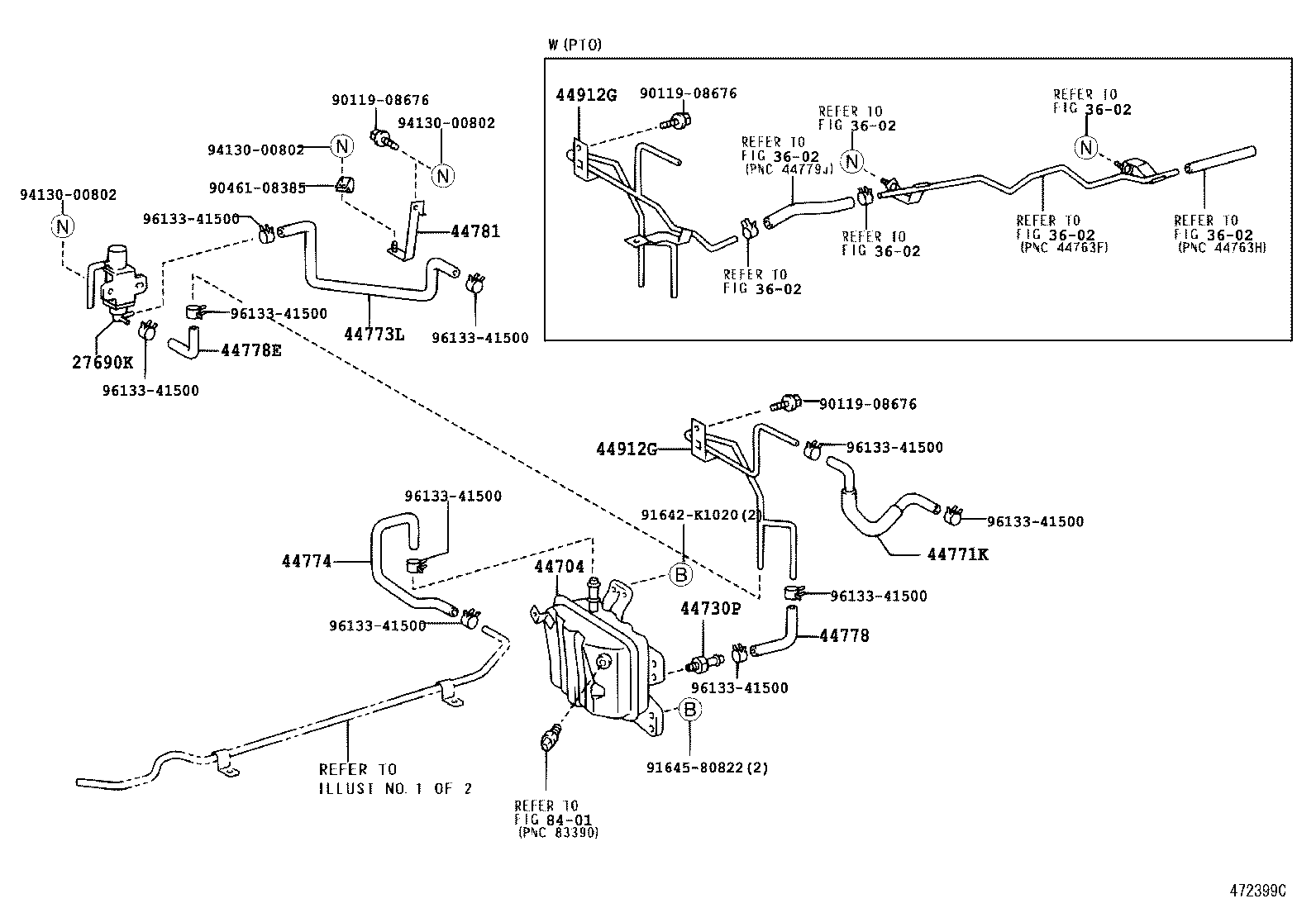

ILLUST NO. 2 OF 2(0010- )XZU302,307,342
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78020 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 27690-78021 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37070 |
XZU30#,320,330,34# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU30#,320,330,34# |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37240 |
XZU302,307,342 |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37060 |
XZU30#,320,330,34# |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37110 |
XZU30#,320,330,34# |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU30#,320,330,34# |
1 | ||
| 44778E - HOSE, CONNECTOR TUBE TO SOLENOID | ||||
| 44778-37060 |
XZU30#,320,330,34# |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37020 |
XZU30#,330,34# |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37510 |
XZU302,307,342 W(PTO) |
1 | ||
| 44912-37310 |
XZU302,307,342 |
1 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37510 |
XZU302,307,342 W(PTO) |
1 | ||
| 44912-37310 |
XZU302,307,342 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90461-08385 | ||||
| 91642-K1020 | ||||
| 91645-80822 | ||||
| 94130-00802 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 3602 | ||||
| 8401 | ||||
