XZU302-TPMMS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

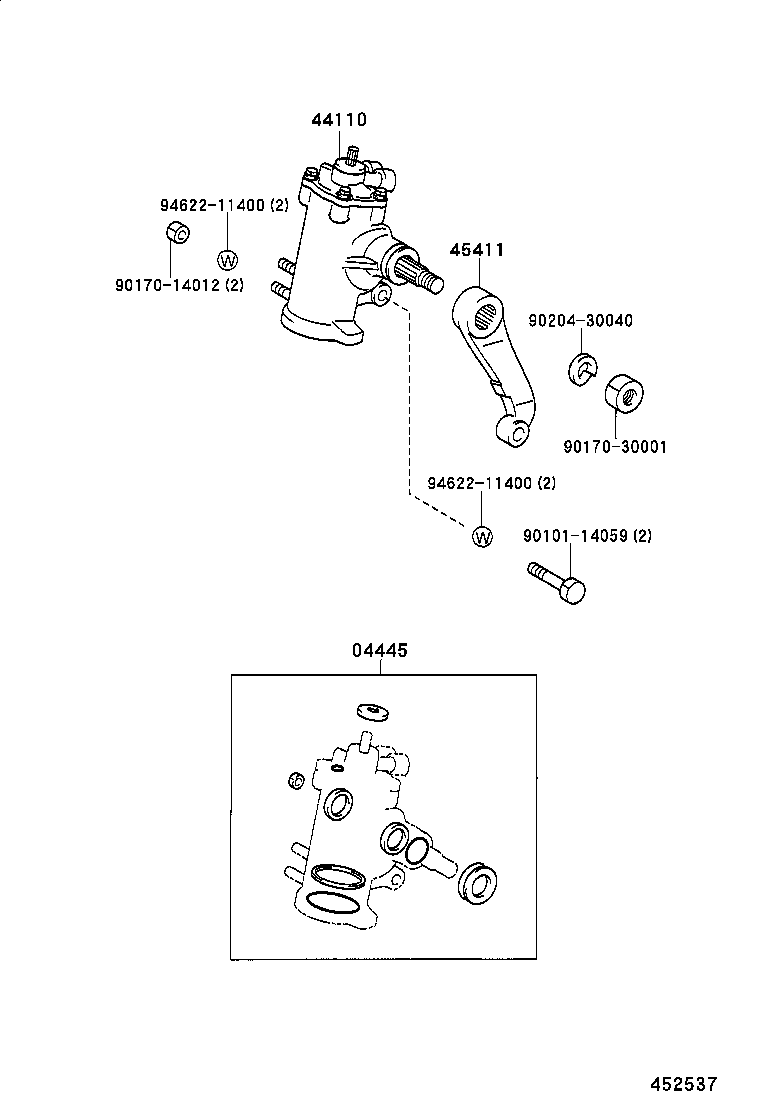

ILLUST NO. 1 OF 3(0010- )XZU302,342
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-37040 |
XZU300,302,320,330,34# |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37110 |
XZU302,342 |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37130 |
XZU302,342 |
1 | ||
| Common parts | ||||
| 90101-14059 | ||||
| 90170-14012 | ||||
| 90170-30001 | ||||
| 90204-30040 | ||||
| 94622-11400 | ||||

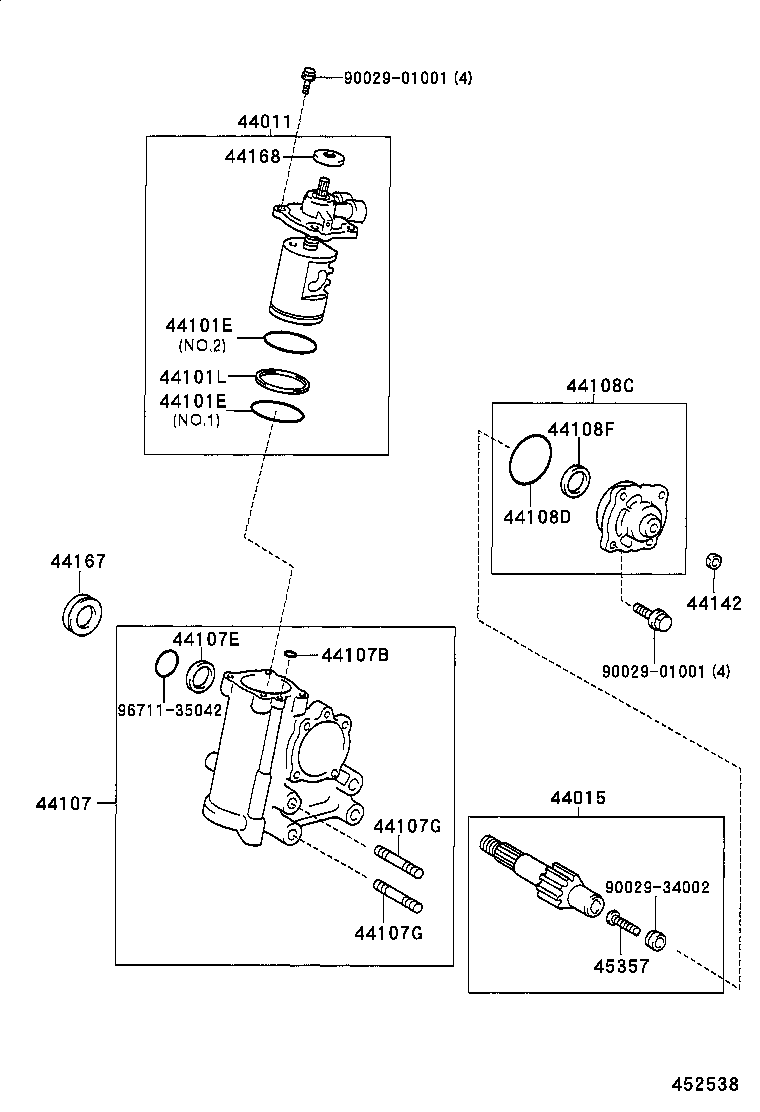

ILLUST NO. 2 OF 3(0010- )XZU302,342
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-37110 |
XZU302,342 |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-37110 |
XZU300,302,320,330,34# |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20006 |
XZU300,302,320,330,34# NO.2 |
1 | ||
| 90029-20047 |
XZU300,302,320,330,34# NO.1 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20006 |
XZU300,302,320,330,34# NO.2 |
1 | ||
| 90029-20047 |
XZU300,302,320,330,34# NO.1 |
1 | ||
| 44101L - SEAL, DUST(FOR POWER PISTON SUB-ASSY) | ||||
| 90029-20708 |
XZU300,302,320,330,34# |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-37090 |
XZU302,342 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20061 |
XZU300,302,320,330,34# |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-21023 |
XZU300,302,320,330,34# |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01502 |
XZU300,302,330,34# |
2 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01502 |
XZU300,302,330,34# |
2 | ||
| 44108C - COVER SUB-ASSY, SECTOR | ||||
| 44108-37110 |
XZU300,302,320,330,34# |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20006 |
XZU300,302,320,330,34# |
1 | ||
| 44108F - SEAL, DUST(FOR SECTOR COVER) | ||||
| 90029-21023 |
XZU300,302,320,330,34# |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
XZU300,302,320,330,34# |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
XZU300,302,320,330,34# |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-25010 |
XZU300,302,320,330,34# |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 90029-02302 |
XZU300,302,320,330,34# |
1 | ||
| Common parts | ||||
| 90029-01001 | ||||
| 90029-34002 | ||||
| 96711-35042 | ||||
(0010-0206)
