XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302,307,342

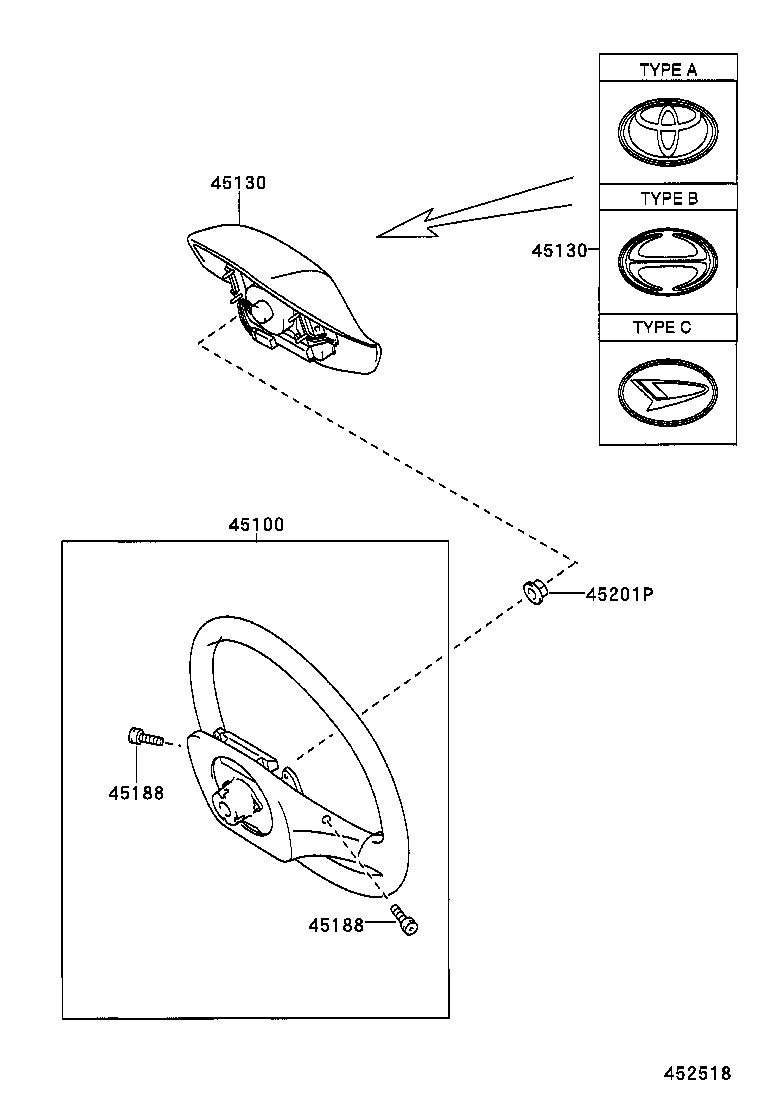

Click highlighted areas on diagram

2-SPOKE,W(*80)

diagram 45100 45130 45130 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36140B0

XZU30#,320,330,34#

2-SPOKE,URETHANE,MD.CHARCOAL,TRIM1#

 1
45100-37040B1

XZU302,307,342

2-SPOKE,URETHANE,W(*80),MD.CHARCOAL,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-37140B0

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION, W(*80),MD.CHARCOAL,TRIM1#

 1
45130-37160B0

XZU302,307,342

TYPE C:REFER TO ILLUSTRATION, W(*80),MD.CHARCOAL,TRIM1#

 1
45130-36120B0

XZU30#,320,330,34#

TYPE A:REFER TO ILLUSTRATION, W/O(*80),MD.CHARCOAL,TRIM1#

 1
45130-37150B0

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION, W(*80),MD.CHARCOAL,TRIM1#

 1
45130-36130B0

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION, W/O(*80),MD.CHARCOAL,TRIM1#

 1
45130-37090B0

XZU302,307,342

TYPE C:REFER TO ILLUSTRATION, W/O(*80),MD.CHARCOAL,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-37140B0

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION, W(*80),MD.CHARCOAL,TRIM1#

 1
45130-37160B0

XZU302,307,342

TYPE C:REFER TO ILLUSTRATION, W(*80),MD.CHARCOAL,TRIM1#

 1
45130-36120B0

XZU30#,320,330,34#

TYPE A:REFER TO ILLUSTRATION, W/O(*80),MD.CHARCOAL,TRIM1#

 1
45130-37150B0

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION, W(*80),MD.CHARCOAL,TRIM1#

 1
45130-36130B0

XZU302,307,342

TYPE B:REFER TO ILLUSTRATION, W/O(*80),MD.CHARCOAL,TRIM1#

 1
45130-37090B0

XZU302,307,342

TYPE C:REFER TO ILLUSTRATION, W/O(*80),MD.CHARCOAL,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

XZU302,307,342

L=15.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

XZU302,307,342

L=15.5

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

XZU30#,320,330,34#

 1
