XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302,342

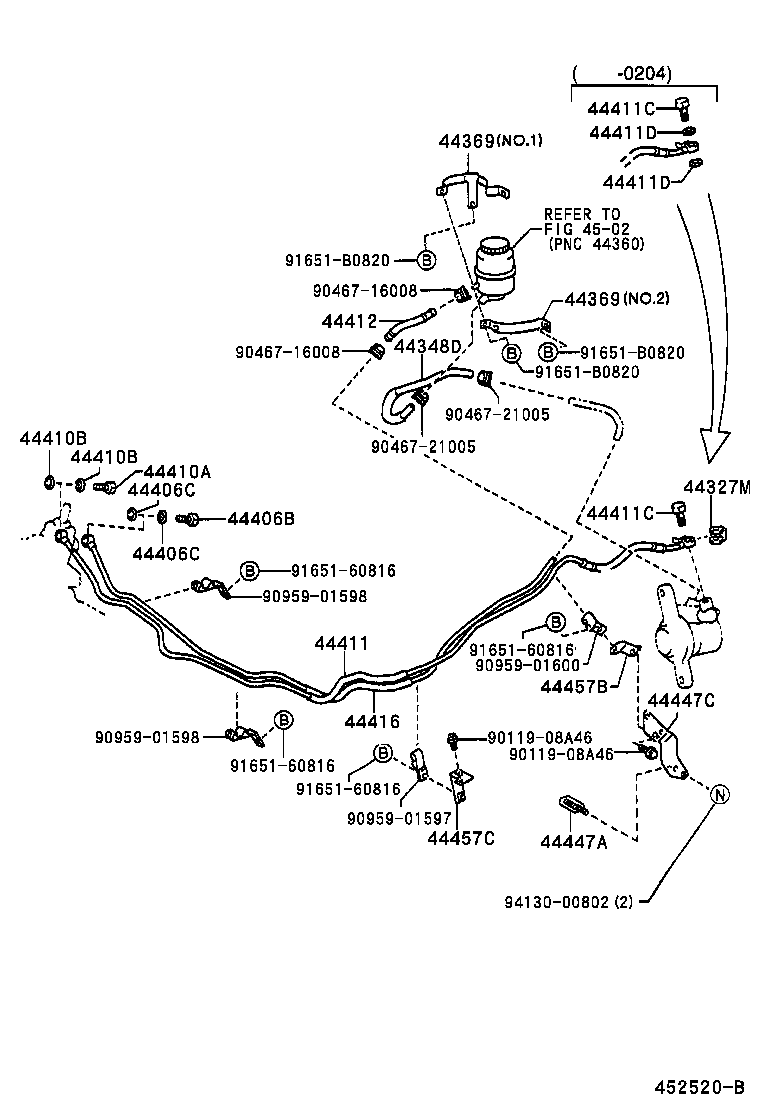

Click highlighted areas on diagram

diagram 44327M 44348D 44369 44369 44406B 44406C 44406C 44410A 44410B 44410B 44411 44411C 44411C 44411D 44411D 44412 44416 44447A 44447C 44457B 44457C 4502 9011908A46 9011908A46 9046716008 9046716008 9046721005 9046721005 9095901597 9095901598 9095901598 9095901600 9165160816 9165160816 9165160816 9165160816 91651B0820 91651B0820 91651B0820 9413000802
Part # Description Qty Price
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37140

XZU302,307,342

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-37090

XZU302,307,342

NO.2

 1
44369-37080

XZU302,307,342

NO.1

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-37090

XZU302,307,342

NO.2

 1
44369-37080

XZU302,307,342

NO.1

 1
44406B - BOLT, UNION(FOR RETURN TUBE)
90401-14003

XZU300,302,320,330,34#

 1
44406C - GASKET(FOR RETURN TUBE)
90430-14235

XZU300,302,320,330,34#

 2
44406C - GASKET(FOR RETURN TUBE)
90430-14235

XZU300,302,320,330,34#

 2
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-14003

XZU300,302,320,330,34#

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

XZU300,302,320,330,34#

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

XZU300,302,320,330,34#

 2
44411 - HOSE, PRESSURE FEED
44411-37101

XZU302,342

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

XZU302,307,342

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

XZU302,307,342

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

XZU30#,320,330,34#

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

XZU30#,320,330,34#

 2
44412 - HOSE, RETURN
44412-37070

XZU302,307,342

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37280

XZU302,342

 1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37120

XZU302,307,342

 1
44447C - BRACKET, HOSE SUPPORT NO.2
44447-37090

XZU302,307,342

 1
44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2
44457-37110

XZU302,342

 1
44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1
44457-37090

XZU302,342

 1
Common parts
90119-08A46
90467-16008
90467-21005
90959-01597
90959-01598
90959-01600
91651-60816
91651-B0820
94130-00802
Linked diagrams
4502
