XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302,307,342

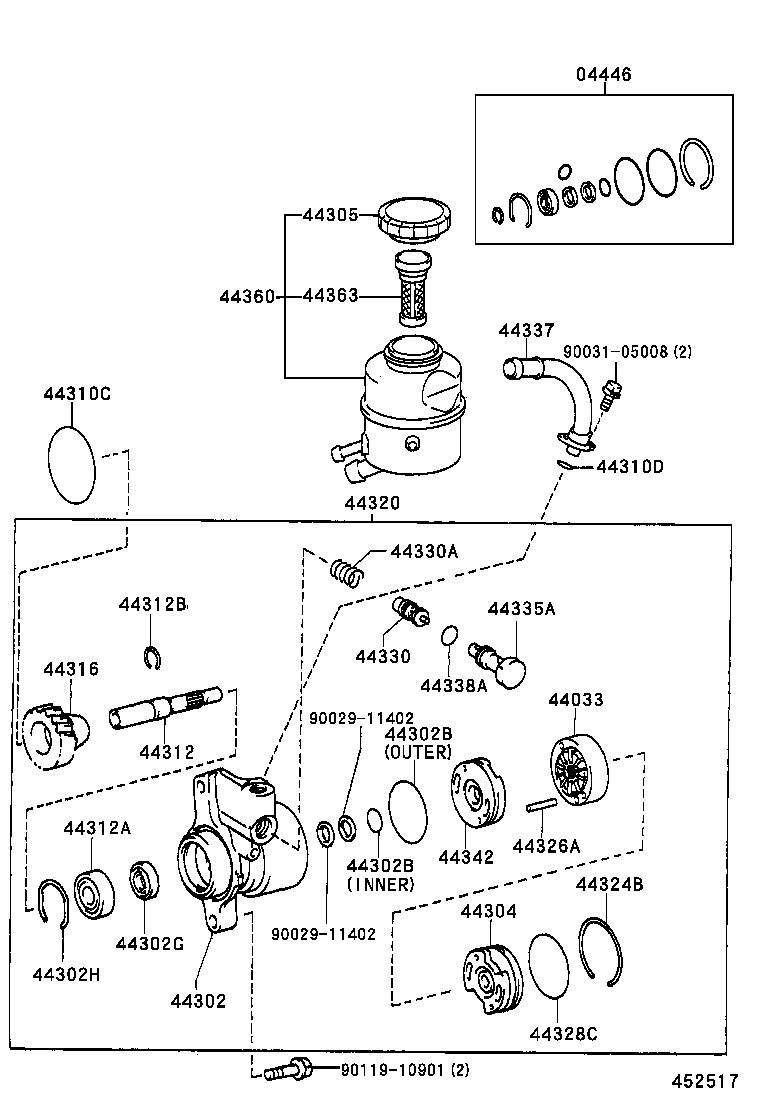

Click highlighted areas on diagram

diagram 04446 44033 44302 44302B 44302B 44302G 44302H 44304 44305 44310C 44310D 44312 44312A 44312B 44316 44320 44324B 44326A 44328C 44330 44330A 44335A 44337 44338A 44342 44360 44363 9002911402 9002911402 9003105008 9011910901
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-37010

XZU302,307,342

 1
44033 - ROTOR SUB-ASSY, W/CAM & VANE
44033-60010

XZU30#,320,330,34#

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-37060

XZU302,307,342

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90029-20056

XZU30#,320,330,34#

INNER

 1
90029-20057

XZU30#,320,330,34#

OUTER

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90029-20056

XZU30#,320,330,34#

INNER

 1
90029-20057

XZU30#,320,330,34#

OUTER

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90029-21018

XZU30#,320,330,34#

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90029-52010

XZU302,307,342

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-37060

XZU302,307,342

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-12030

XZU30#,320,330,34#

 1
44310C - RING, O(FOR VANE PUMP)
90301-60002

XZU30#,320,330,34#

 1
44310D - RING, O(FOR VANE PUMP UNION)
90301-15019

XZU302,307,342

 1
44312 - SHAFT, VANE PUMP
44312-60030

XZU30#,320,330,34#

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90029-36010

XZU302,307,342

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90029-52402

XZU30#,320,330,34#

 1
44316 - GEAR, VANE PUMP
44316-37010

XZU302,307,342

 1
44320 - PUMP ASSY, VANE
44310-37060

XZU302,342

 1
44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR)
90029-52012

XZU302,307,342

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90029-14205

XZU30#,320,330,34#

L=25.8

 2
44328C - RING, O(FOR PUMP HOUSING END)
90029-20058

XZU30#,320,330,34#

 1
44330 - VALVE ASSY, FLOW CONTROL
40420-37060

XZU300,302,320,330,342..20T,30T

MARK B

 1
40410-37060

XZU300,302,320,330,342..20T,30T

MARK C

 1
44330-37060

XZU300,302,320,330,342..20T,30T

MARK D

 1
40430-37060

XZU300,302,320,330,342..20T,30T

MARK A

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90029-60013

XZU30#,320,330,34#

 1
44335A - ORIFICE, FLOW CONTROL VALVE
44335-37010

XZU302,307,342

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37080

XZU302,307,342

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
96711-19016

XZU30#,320,330,34#

OD=19.6,ID=15.8

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-37060

XZU302,307,342

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-37130

XZU30#,320,330,34#

 1
44363 - STRAINER, OIL(FOR VANE PUMP)
44363-37130

XZU30#,320,330,34#

 1
Common parts
90029-11402
90031-05008
90119-10901
