XZU302-TPMMS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 3(0010- )
Click highlighted areas on diagram

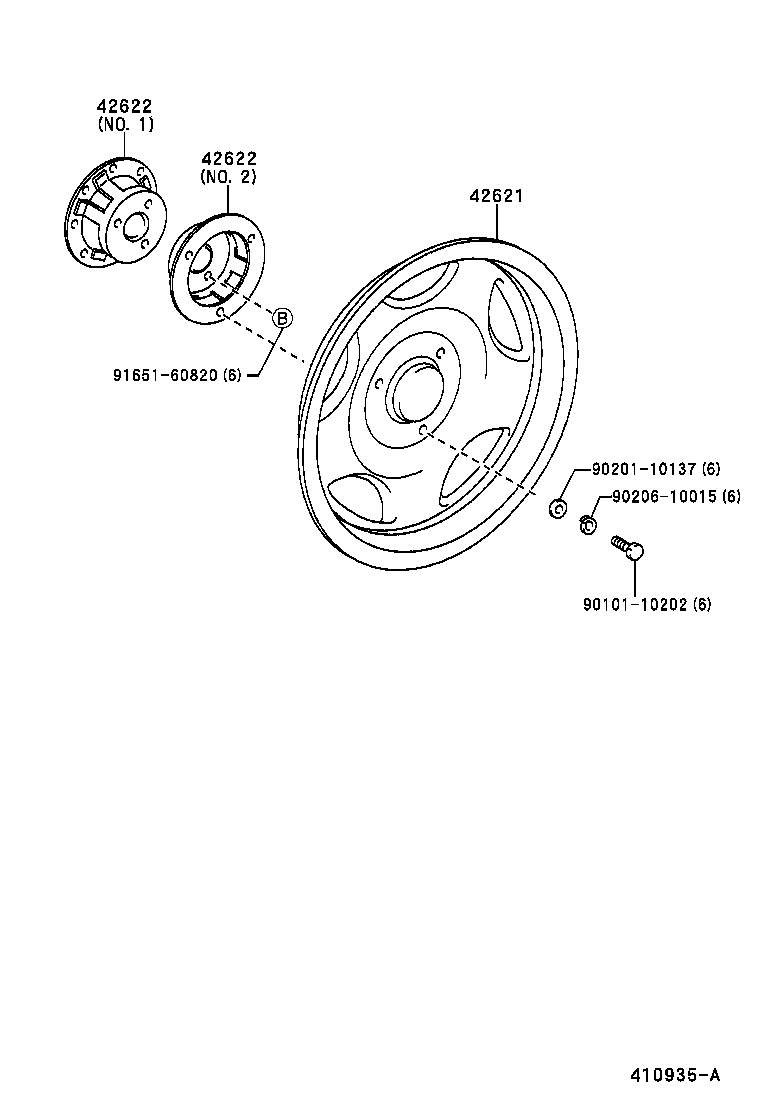

REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42621 - CAP, WHEEL | ||||
| 42623-36030 |
XZU302,342..WT REAR |
2 | ||
| 42621-36180 |
XZU302,307,342..WT FRONT |
2 | ||
| 42622 - HOLDER, WHEEL CAP | ||||
| 42622-37010 |
XZU302,307,342..WT NO.2 |
2 | ||
| 42622-36040 |
XZU302,307,342..WT NO.1 |
2 | ||
| 42622 - HOLDER, WHEEL CAP | ||||
| 42622-37010 |
XZU302,307,342..WT NO.2 |
2 | ||
| 42622-36040 |
XZU302,307,342..WT NO.1 |
2 | ||
| Common parts | ||||
| 90101-10202 | ||||
| 90201-10137 | ||||
| 90206-10015 | ||||
| 91651-60820 | ||||
ILLUST NO. 2 OF 3(0010- )
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42618 - RETAINER, WHEEL CAP | ||||
| 42618-36030 |
XZU302,307,342..WT |
2 | ||
| 42621 - CAP, WHEEL | ||||
| 42623-36030 |
XZU302,342..WT REAR |
2 | ||
| 42621-36180 |
XZU302,307,342..WT FRONT |
2 | ||
| Common parts | ||||
| 90101-10202 | ||||
| 90201-10137 | ||||
| 90206-10015 | ||||
