XZU302-TPMMS3 (2000)
Toyota Dyna

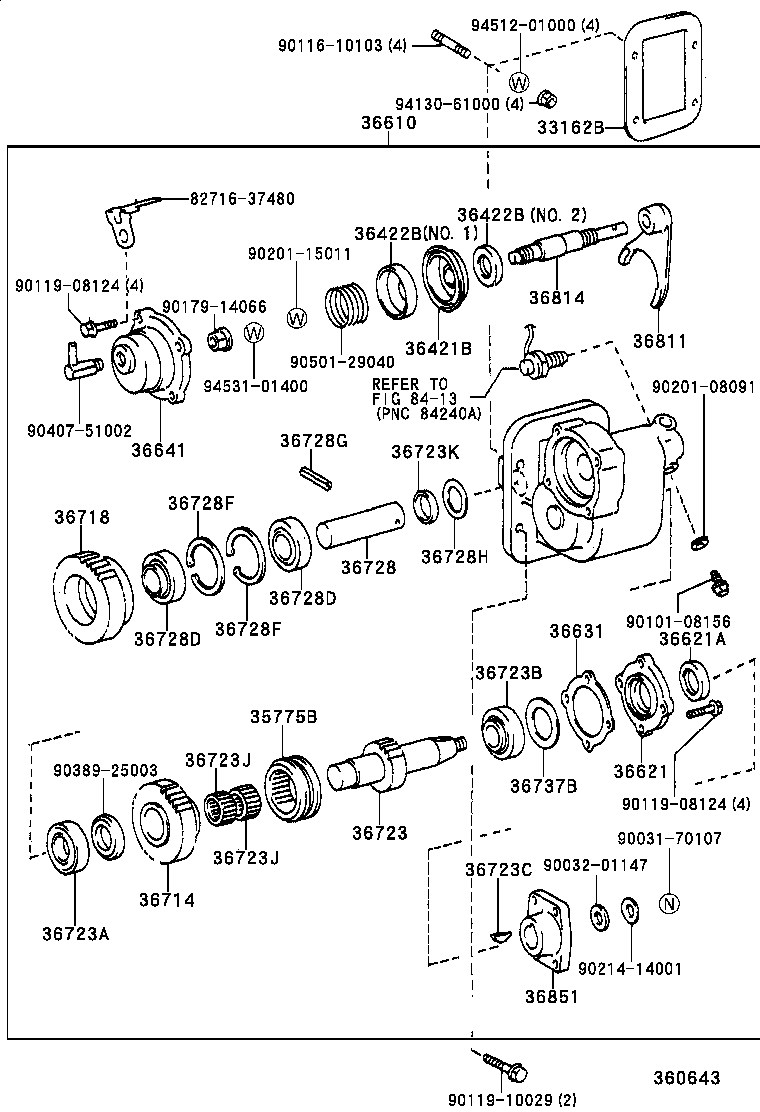

ILLUST NO. 1 OF 3(0010- )XZU302,307
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37030 |
XZU302,307 |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-93100 |
XZU302,307 |
1 | ||
| 36421B - DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36421-93100 |
XZU30#,320,330,34# |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
XZU30#,320,330,34# NO.1 |
1 | ||
| 36422-93101 |
XZU30#,320,330,34# NO.2 |
1 | ||
| 36422B - PLATE, DIAPHRAGM (FOR POWER TAKE-OFF) | ||||
| 36422-93100 |
XZU30#,320,330,34# NO.1 |
1 | ||
| 36422-93101 |
XZU30#,320,330,34# NO.2 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37140 |
XZU302,307 |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93200 |
XZU30#,320,330,34# |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU30#,320,330,34# |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-93101 |
XZU30#,320,330,34# |
1 | ||
| 36641 - CAP, POWER TAKE-OFF SHIFT SHAFT | ||||
| 36641-93100 |
XZU30#,320,330,34# |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93108 |
XZU302,307 |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93112 |
XZU302,307 |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93107 |
XZU302,307 |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97100-06205 |
XZU302,307 |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-22001 |
XZU30#,320,330,34# T=16.25 |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07011 |
XZU30#,320,330,34# |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU30#,320,330,34# |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU30#,320,330,34# |
2 | ||
| 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90387-25009 |
XZU302,307 |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93107 |
XZU302,307 |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
XZU302,307 |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-22001 |
XZU302,307 |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU30#,320,330,34# |
2 | ||
| 36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90521-56108 |
XZU30#,320,330,34# |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU30#,320,330,34# |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XZU30#,320,330,34# T=0.05 |
1 | ||
| 90564-25003 |
XZU30#,320,330,34# T=0.2 |
1 | ||
| 90564-25002 |
XZU30#,320,330,34# T=0.1 |
1 | ||
| 90564-25004 |
XZU30#,320,330,34# T=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42002 |
XZU30#,320,330,34# T=0.07-0.13 |
1 | ||
| 90564-42001 |
XZU30#,320,330,34# T=0.02-0.08 |
1 | ||
| 90564-42003 |
XZU30#,320,330,34# T=0.17-0.23 |
1 | ||
| 90564-42004 |
XZU30#,320,330,34# T=0.47-0.53 |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93104 |
XZU30#,320,330,34# |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93104 |
XZU302,307 |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
XZU30#,320,330,34# |
1 | ||
| Common parts | ||||
| 82716-37480 | ||||
| 90031-70107 | ||||
| 90032-01147 | ||||
| 90101-08156 | ||||
| 90116-10103 | ||||
| 90119-08124 | ||||
| 90119-10029 | ||||
| 90179-14066 | ||||
| 90201-08091 | ||||
| 90201-15011 | ||||
| 90214-14001 | ||||
| 90389-25003 | ||||
| 90407-51002 | ||||
| 90501-29040 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01400 | ||||
| Linked diagrams | ||||
| 8413 | ||||
