XZU302-TPMMS3 (2000)
Toyota Dyna

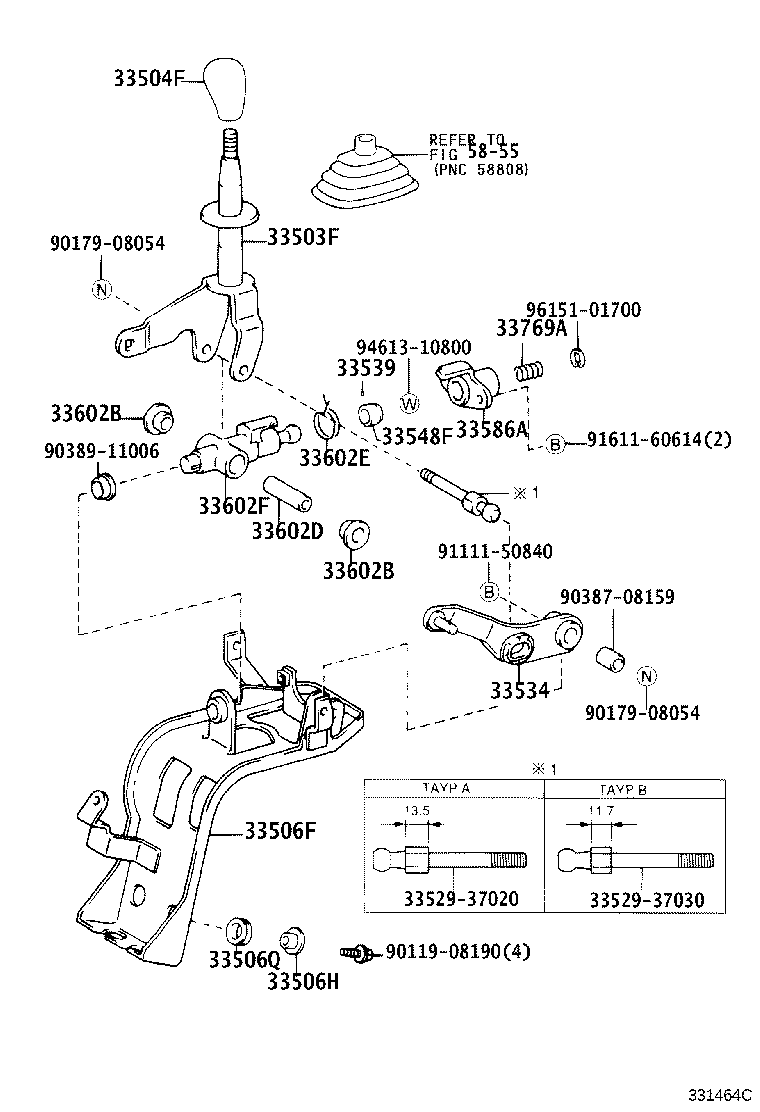

ILLUST NO. 1 OF 2(0010- )XZU302,307,342
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-37060 |
XZU302,307,342 W/O(POWER WINDOW) |
1 | ||
| 33055-37050 |
XZU302,307,342 |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-37040B0 |
XZU30#,320,330,34# DK.CHARCOAL,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-37031 |
XZU302,307,342 |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
XZU30#,320,330,34# |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 33577-37060 |
XZU30#,320,330,34# |
4 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-37060 |
XZU302,307,342 |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
XZU30#,320,330,34# |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
XZU30#,320,330,34# |
1 | ||
| 33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT) | ||||
| 33586-37020 |
XZU30#,320,330,34# |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
XZU30#,320,330,34# |
2 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
XZU30#,320,330,34# |
2 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08063 |
XZU30#,320,330,34# |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03034 |
XZU30#,320,330,34# |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-37020 |
XZU302,307,342 |
1 | ||
| 33769A - SPRING, CROSS SHAFT END | ||||
| 33769-37020 |
XZU30#,320,330,34# |
1 | ||
| Common parts | ||||
| 33529-37020 | ||||
| 33529-37030 | ||||
| 90119-08190 | ||||
| 90179-08054 | ||||
| 90387-08159 | ||||
| 90389-11006 | ||||
| 91111-50840 | ||||
| 91611-60614 | ||||
| 94613-10800 | ||||
| 96151-01700 | ||||
| Linked diagrams | ||||
| 5855 | ||||

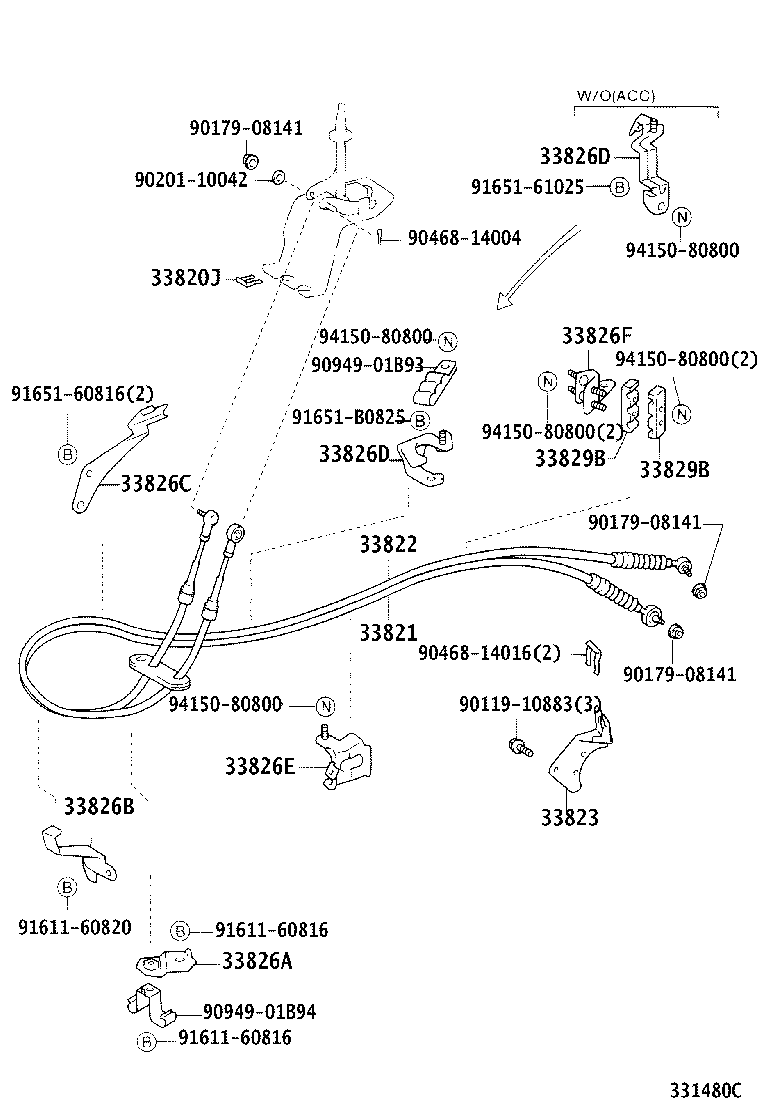

ILLUST NO. 2 OF 2(0010- )XZU302
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37692 |
XZU302,307 |
1 | ||
| 33820-37691 |
XZU302,307 PNC 33820J=TYPE B |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33820-37701 |
XZU302,307 PNC 33820J=TYPE B |
1 | ||
| 33820-37702 |
XZU302,307 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37390 |
XZU302,307 |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37180 |
XZU302,307,342 |
1 | ||
| 33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3 | ||||
| 33826-37210 |
XZU302,307,342 |
1 | ||
| 33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4 | ||||
| 33826-37610 |
XZU302,342 |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37240 |
XZU302,307,342 W(AIR CONDITIONER) |
1 | ||
| 33826-37270 |
XZU302,320,342 W/O(AIR CONDITIONER) |
1 | ||
| 33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5 | ||||
| 33826-37240 |
XZU302,307,342 W(AIR CONDITIONER) |
1 | ||
| 33826-37270 |
XZU302,320,342 W/O(AIR CONDITIONER) |
1 | ||
| 33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6 | ||||
| 33826-37250 |
XZU30#,330,34# |
1 | ||
| 33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7 | ||||
| 33826-37420 |
XZU30#,330,34# |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37150 |
XZU30#,330,34# |
2 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37150 |
XZU30#,330,34# |
2 | ||
| Common parts | ||||
| 90119-10883 | ||||
| 90179-08141 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01B93 | ||||
| 90949-01B94 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-60816 | ||||
| 91651-61025 | ||||
| 91651-B0825 | ||||
| 94150-80800 | ||||
