XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302,307,342

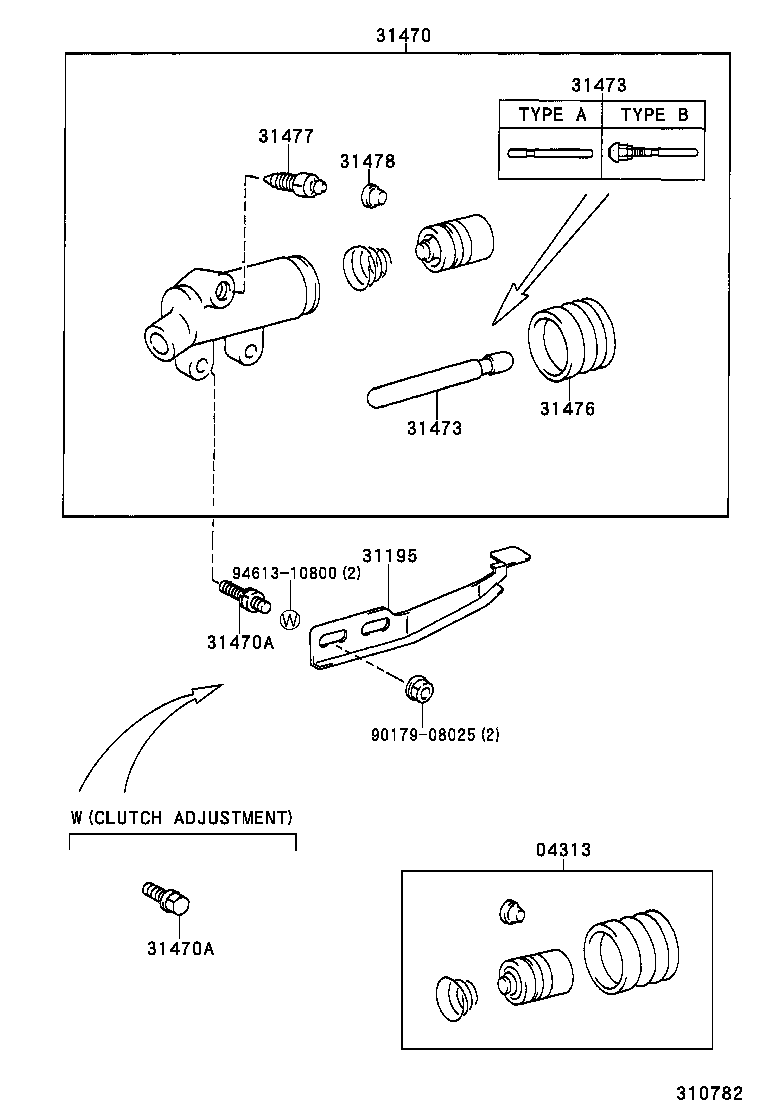

Click highlighted areas on diagram

diagram 04313 31195 31470 31470A 31470A 31473 31473 31476 31477 31478 9017908025 9461310800
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-37030

XZU30#,320,330,34#

 1
31195 - PLATE, CLUTCH DISC WEAR INDICATOR
31195-37040

XZU302,307,342

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-37040

XZU302,307,342

GREEN PAINTED

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

XZU302,307,342

*8-1.25PX25-25,AUSTRALIA SPEC

 2
90109-08248

XZU302,307,342

*8-1.25PX25-20.1

 2
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

XZU302,307,342

*8-1.25PX25-25,AUSTRALIA SPEC

 2
90109-08248

XZU302,307,342

*8-1.25PX25-20.1

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-14030

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-14030

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

XZU30#,320,330,34#

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

XZU30#,320,330,34#

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

XZU30#,320,330,34#

 1
Common parts
90179-08025
94613-10800
