XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302,307,342

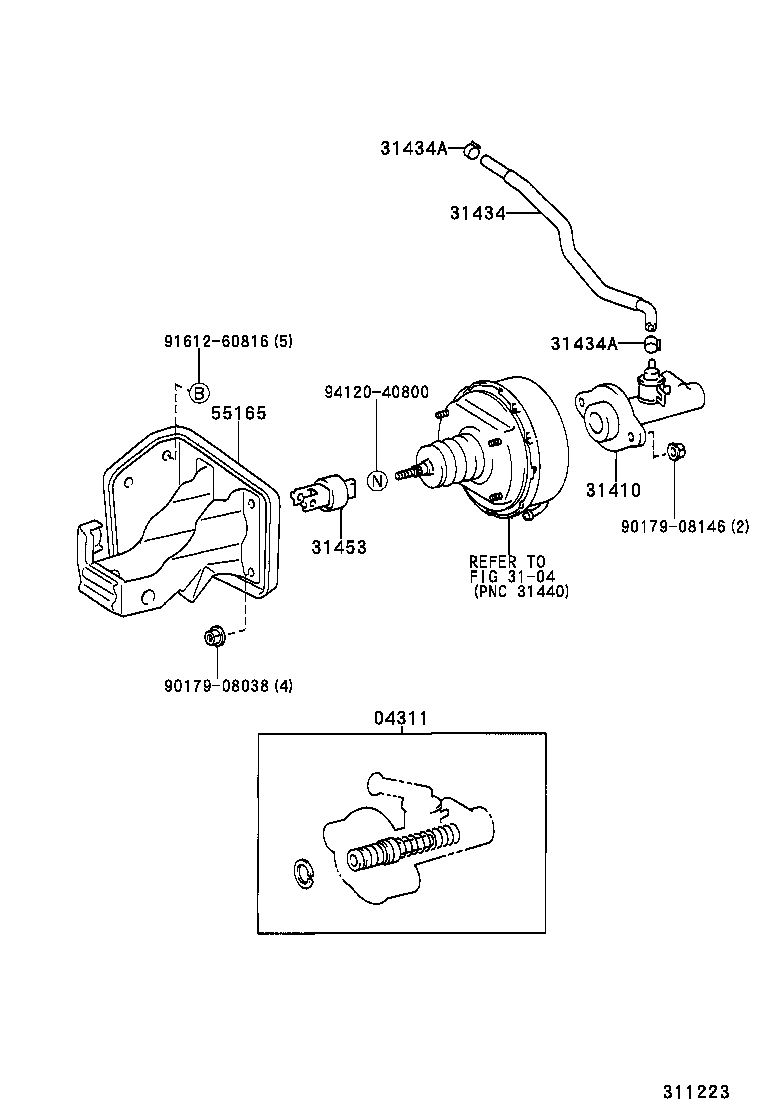

Click highlighted areas on diagram

diagram 04311 3104 31410 31434 31434A 31434A 31453 55165 9017908038 9017908146 9161260816 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-36111

XZU30#,320,330,34#

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31401-36060

XZU30#,320,330,34#

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-37090

XZU302,307,342

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

XZU30#,320,330,34#

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

XZU30#,320,330,34#

 2
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-28020

XZU30#,320,330,34#

 1
55165 - SUPPORT, CLUTCH MASTER CYLINDER
55105-37051

XZU302,307,342

 1
Common parts
90179-08038
90179-08146
91612-60816
94120-40800
Linked diagrams
3104
