XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

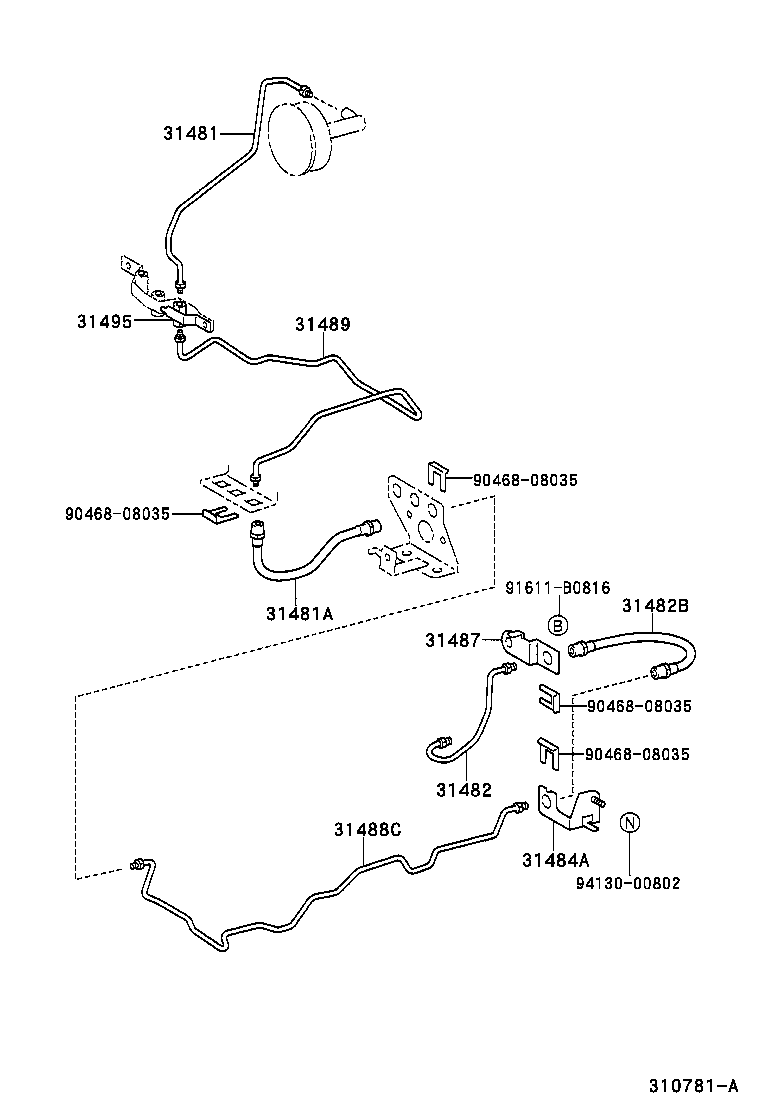

ILLUST NO. 2 OF 2(0010- )XZU302,307,342

Click highlighted areas on diagram

diagram 31481 31481A 31482 31482B 31484A 31487 31488C 31489 31495 9046808035 9046808035 9046808035 9046808035 91611B0816 9413000802
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-37120

XZU302,307,342

 1
31481A - HOSE, CLUTCH, NO.1
90931-01143

XZU30#,320,330,34#

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-37080

XZU302,307,342

 1
31482B - HOSE, CLUTCH, NO.2
90931-01142

XZU30#,320,330,34#

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37150

XZU302,307,342

 1
31487 - PLATE, RELEASE TUBE SET
31487-37050

XZU302,307,342

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31488-37210

XZU302,307,342

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31481-37130

XZU302,307,342

 1
31495 - WAY, CLUTCH TUBE
31495-37010

XZU30#,320,330,34#

 1
Common parts
90468-08035
91611-B0816
94130-00802
