XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )XZU302,307,342

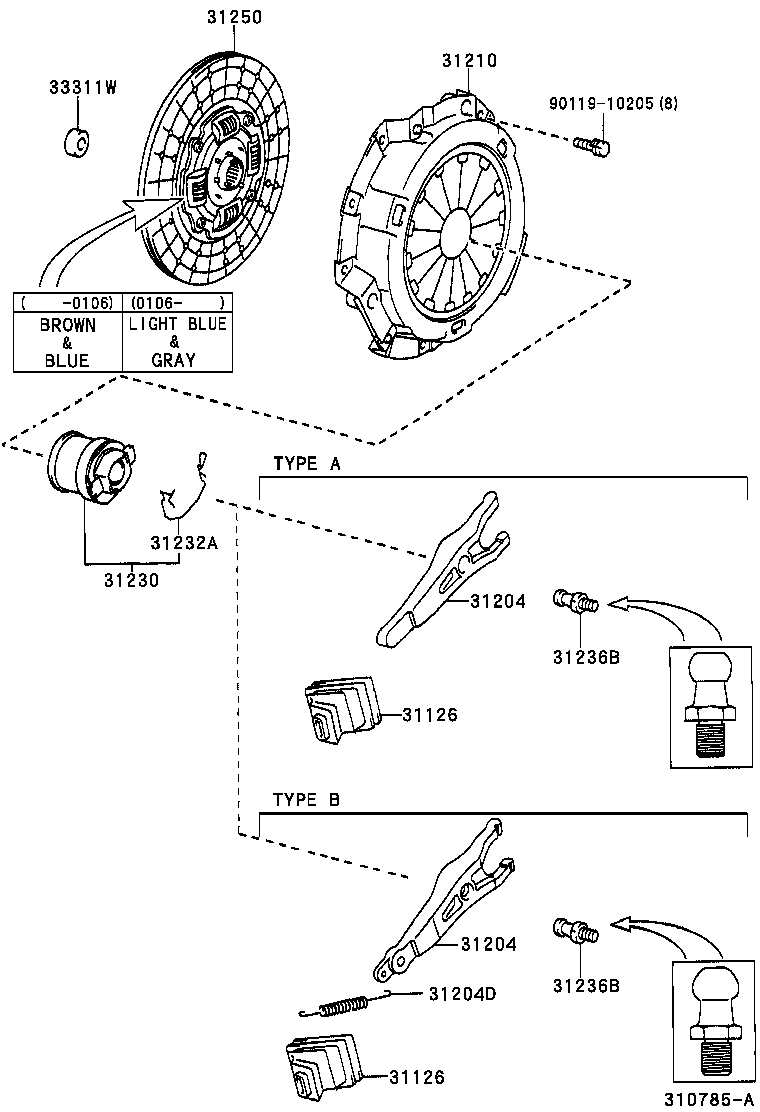

Click highlighted areas on diagram

diagram 31126 31126 31204 31204 31204D 31210 31230 31232A 31236B 31236B 31250 33311W 9011910205
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-36070

XZU30#,320,330,34#

 1
31126 - BOOT, CLUTCH RELEASE FORK
31126-36070

XZU30#,320,330,34#

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-37010

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-37010

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
31210 - COVER ASSY, CLUTCH
31210-36240

XZU302,307,342

 1
31210-36250

XZU302,307,342

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36200

XZU302,307,342

 1
31232A - CLIP, RELEASE BEARING HUB
31232-36030

XZU30#,320,330,34#

 1
31236B - SUPPORT, RELEASE FORK
31236-36060

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
31236B - SUPPORT, RELEASE FORK
31236-36060

XZU302,307,342

TYPE A:REFER TO ILLUSTRATION

 1
31250 - DISC ASSY, CLUTCH
31250-37090

XZU302,307,342

 1
31250-37091

XZU302,307,342

 1
31250-37091

XZU302,307,342

 1
31250-37130

XZU302,307,342

 1
33311W - BEARING (FOR INPUT SHAFT)
90033-63032

XZU302,307,342

 1
Common parts
90119-10205
