XZU302-TPMMS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0010- )S05C

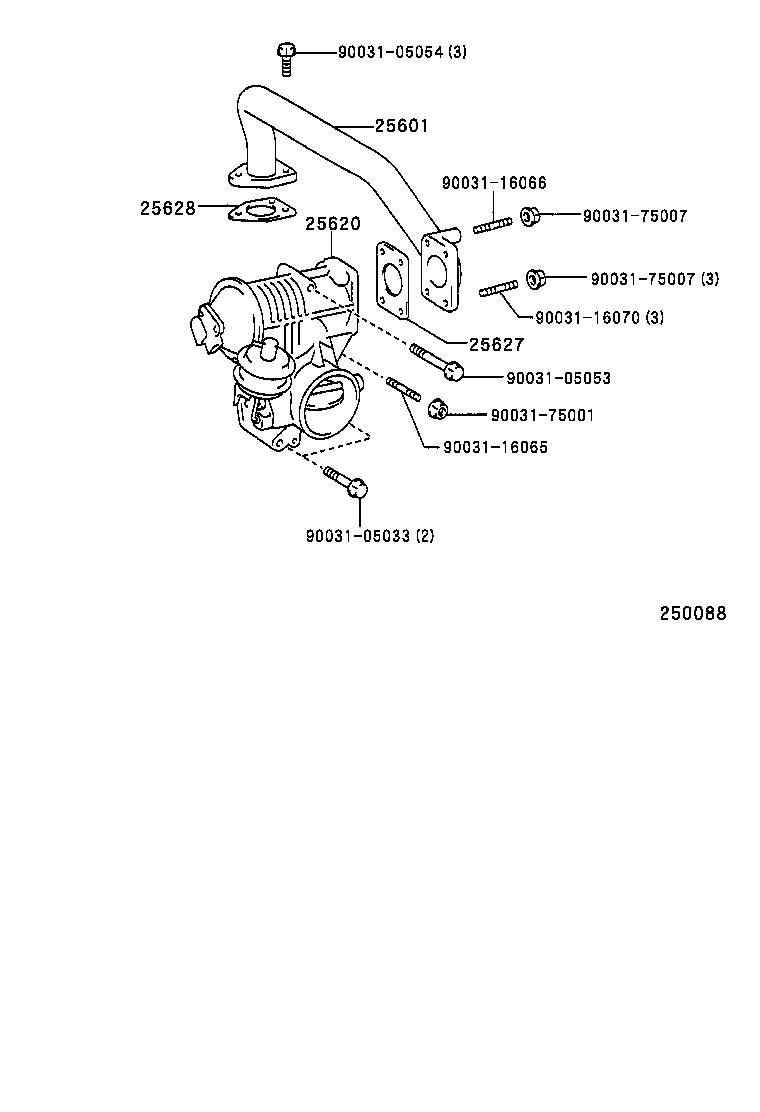

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-78010 |
S05C..XZU302,307,342 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-78041 |
S05C..XZU302,307,342 |
1 | ||
| 25627 - GASKET, EGR VALVE | ||||
| 25627-78010 |
S05C..XZU302,307,342 |
1 | ||
| 25628 - GASKET, EGR INLET | ||||
| 17173-78030 |
S05C..XZU302,307,342 |
1 | ||
| Common parts | ||||
| 90031-05033 | ||||
| 90031-05053 | ||||
| 90031-05054 | ||||
| 90031-16065 | ||||
| 90031-16066 | ||||
| 90031-16070 | ||||
| 90031-75001 | ||||
| 90031-75007 | ||||
