XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )S05C

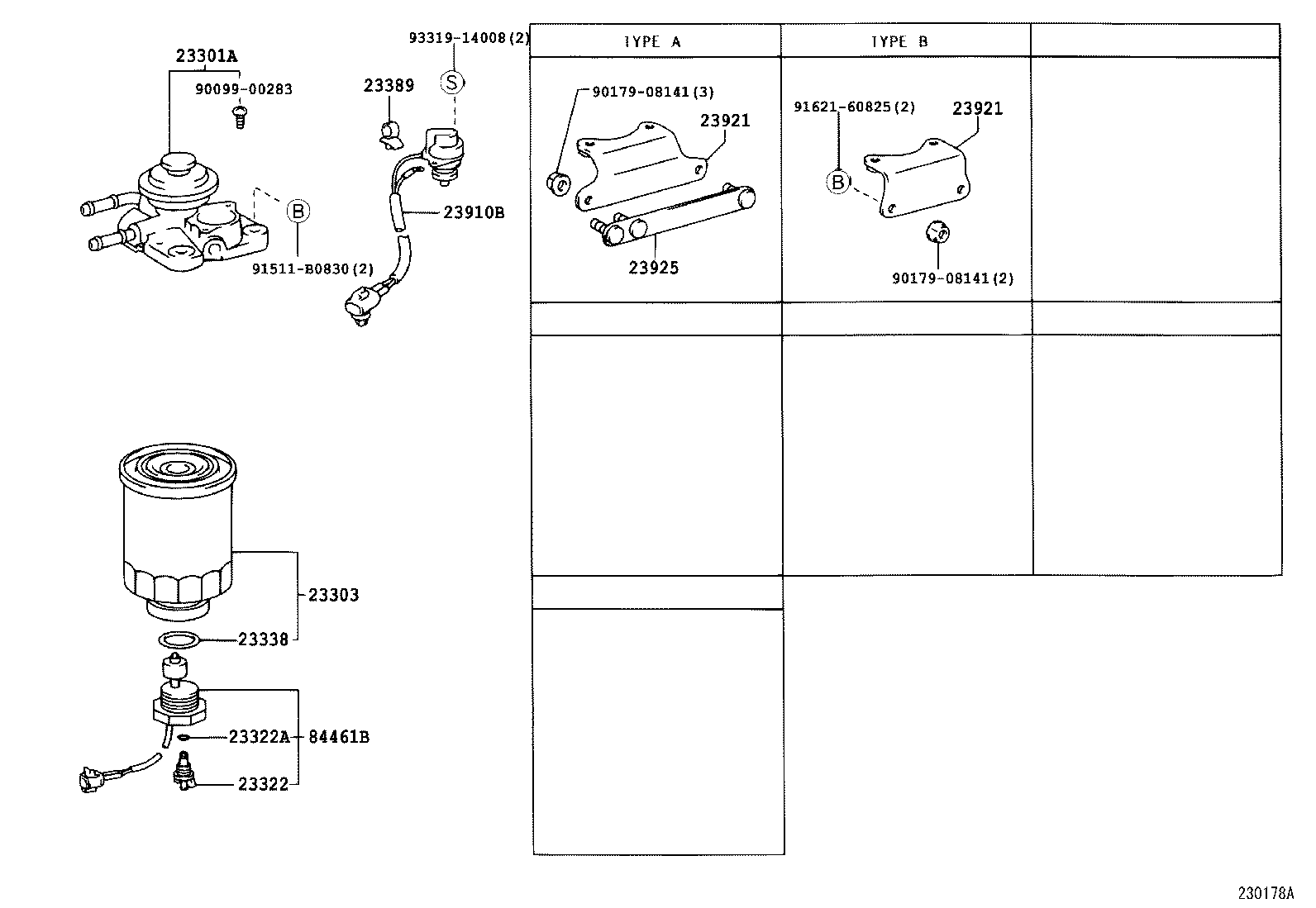

Click highlighted areas on diagram

diagram 23301A 23303 23322 23322A 23338 23389 23910B 23921 23921 23925 84461B 9009900283 9017908141 9017908141 91511B0830 9162160825 9331914008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-78041

S05C..XZU302,307,342

W(FUEL HEATER)

 1
23380-78050

S05C,15BFTE..XZU30#,320,330,34#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-64480

S05C,15BFTE..XZU30#,320,330,34#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

S05C,15BFTE..XZU30#,320,330,34#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

S05C,15BFTE..XZU30#,320,330,34#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

S05C,15BFTE..XZU30#,320,330,34#

 1
23389 - CLAMP, FUEL FILTER
23389-78041

S05C..XZU302,307,342

 1
23910B - HEATER ASSY, FUEL
23910-78011

S05C..XZU302,307,342

 1
23921 - SUPPORT, FUEL FILTER
23921-78100

S05C..XZU302,307

TYPE B:REFER TO ILLUSTRATION

 1
23921 - SUPPORT, FUEL FILTER
23921-78100

S05C..XZU302,307

TYPE B:REFER TO ILLUSTRATION

 1
84461B - SWITCH, LEVEL WARNING
84461-28040

XZU30#,320,330,34#

 1
Common parts
90099-00283
90179-08141
91511-B0830
91621-60825
93319-14008
