XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )S05C

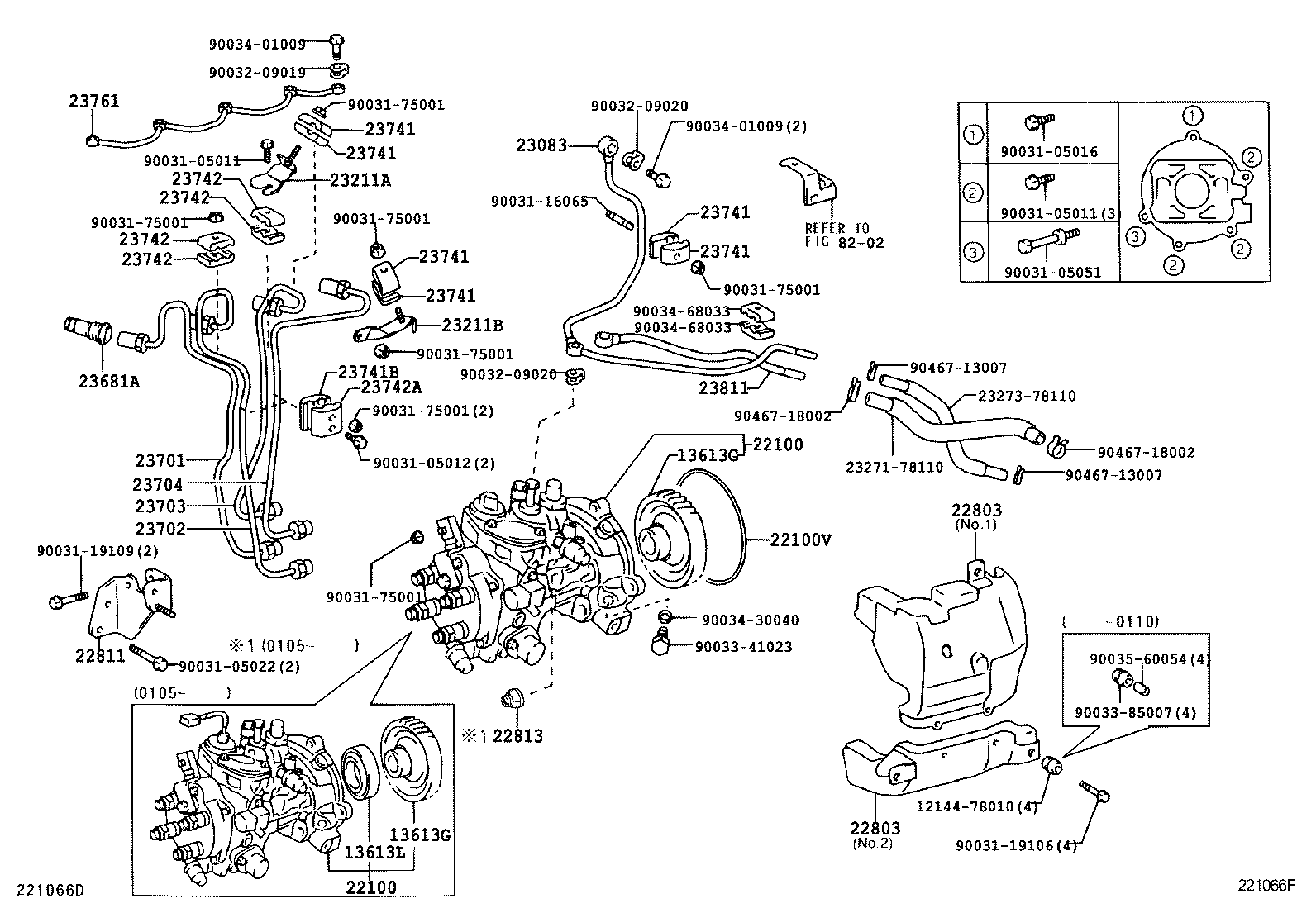

Click highlighted areas on diagram

diagram 1214478010 13613G 13613G 13613L 22100 22100 22100V 22803 22803 22811 22813 23083 23211A 23211B 2327178110 2327378110 23681A 23701 23702 23703 23704 23741 23741 23741 23741 23741 23741 23741B 23742 23742 23742 23742 23742A 23761 23811 8202 9003105011 9003105011 9003105012 9003105016 9003105022 9003105051 9003116065 9003119106 9003119109 9003175001 9003175001 9003175001 9003175001 9003175001 9003175001 9003175001 9003209019 9003209020 9003209020 9003341023 9003385007 9003401009 9003401009 9003430040 9003468033 9003468033 9003560054 9046713007 9046713007 9046718002 9046718002
Part # Description Qty Price
13613G - GEAR, INJECTION PUMP DRIVE
13613-78030

S05C..XZU302,307,342

 1
13613G - GEAR, INJECTION PUMP DRIVE
13613-78030

S05C..XZU302,307,342

 1
13613L - BEARING, BALL(FOR INJECTION PUMP DRIVE GEAR)
90033-60020

S05C..XZU302,307,342

 1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-78072

S05C..XZU302,307,342

 1
22100-78120

S05C..XZU302,307,342

 1
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-78072

S05C..XZU302,307,342

 1
22100-78120

S05C..XZU302,307,342

 1
22100V - RING, O(FOR INJECTION PUMP)
90033-01059

S05C..XZU302,307,342

 1
22803 - COVER SUB-ASSY, FUEL INJECTION PUMP
22803-78080

S05C..XZU302,307,342

NO.1

 1
22803-78081

S05C..XZU302,307,342

NO.1

 1
22803-78021

S05C..XZU302,307,342

NO.2

 1
22803-78082

S05C..XZU302,307,342

NO.1

 1
22803-78022

S05C..XZU302,307,342

NO.2

 1
22803 - COVER SUB-ASSY, FUEL INJECTION PUMP
22803-78080

S05C..XZU302,307,342

NO.1

 1
22803-78081

S05C..XZU302,307,342

NO.1

 1
22803-78021

S05C..XZU302,307,342

NO.2

 1
22803-78082

S05C..XZU302,307,342

NO.1

 1
22803-78022

S05C..XZU302,307,342

NO.2

 1
22811 - STAY, INJECTION PUMP, NO.1
22801-78010

S05C..XZU302,307,342

 1
22813 - PROTECTOR, INJECTION PUMP, NO.1
22813-78010

S05C..XZU302,307,342

 1
23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3
23803-78020

S05C..XZU302,307,342

 1
23211A - BRACKET(FOR INJECTION PIPE NO.3)
23211-78020

S05C..XZU302,307,342

 1
23211B - BRACKET(FOR INJECTION PIPE NO.4)
23211-78030

S05C..XZU302,307,342

 1
23681A - SEAL, NOZZLE HOLDER
23681-78010

S05C..XZU302,307,342

 4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-78041

S05C..XZU302,307,342

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-78040

S05C..XZU302,307,342

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-78040

S05C..XZU302,307,342

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-78040

S05C..XZU302,307,342

 1
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024

S05C..XZU302,307,342

 6
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024

S05C..XZU302,307,342

 6
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024

S05C..XZU302,307,342

 6
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024

S05C..XZU302,307,342

 6
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024

S05C..XZU302,307,342

 6
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024

S05C..XZU302,307,342

 6
23741B - CLAMP, INJECTION PIPE
23742-78030

S05C..XZU302,307,342

 2
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020

S05C..XZU302,307,342

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020

S05C..XZU302,307,342

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020

S05C..XZU302,307,342

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020

S05C..XZU302,307,342

 4
23742A - CLAMP, INJECTION PIPE, NO.3
23742-78020

S05C..XZU302,307,342

 2
23761 - PIPE, NOZZLE LEAKAGE, NO.1
23761-78020

S05C..XZU302,307,342

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-78020

S05C..XZU302,307,342

 1
Common parts
12144-78010
23271-78110
23273-78110
90031-05011
90031-05012
90031-05016
90031-05022
90031-05051
90031-16065
90031-19106
90031-19109
90031-75001
90032-09019
90032-09020
90033-41023
90033-85007
90034-01009
90034-30040
90034-68033
90035-60054
90467-13007
90467-18002
Linked diagrams
8202
