XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )S05C

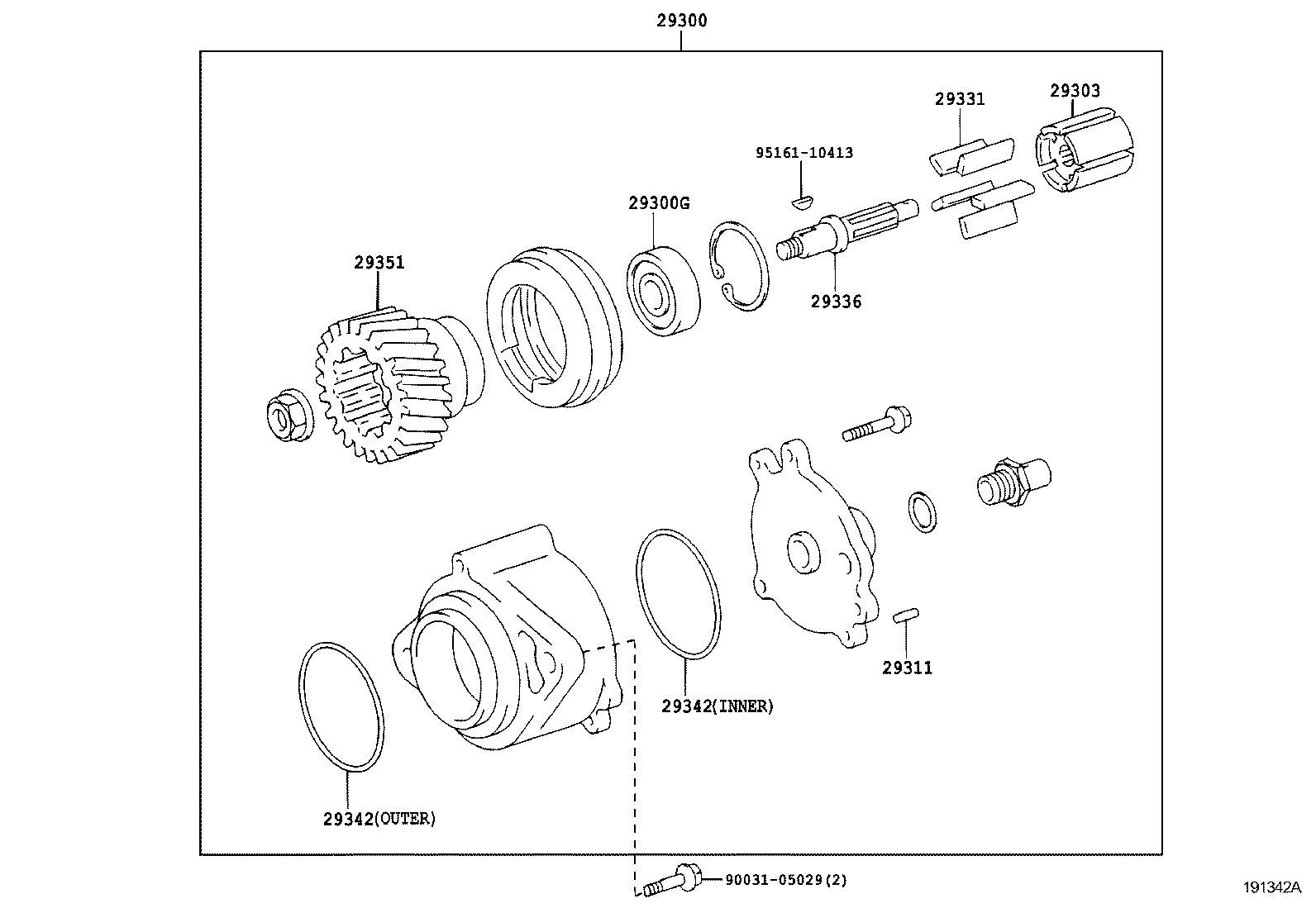

Click highlighted areas on diagram

diagram 29300 29300G 29303 29311 29331 29336 29342 29342 29351 9003105029 9516110413
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-78050

S05C..XZU302,307,342

 1
29300G - BEARING, BALL
90099-10185

S05C,15BFTE..XZU30#,320,330,34#

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-67020

S05C..XZU302,307,342

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

S05C,15BFTE..XZU30#,320,330,34#

 2
29331 - BLADE, VACUUM PUMP, A
29331-67020

S05C..XZU302,307,342

 5
29336 - SHAFT, VACUUM PUMP
29336-58050

S05C..XZU302,307,342

 1
29342 - PACKING, VACUUM PUMP
29342-17010

S05C..XZU302,307,342

INNER

 1
29342-58010

S05C..XZU302,307,342

OUTER

 1
29342 - PACKING, VACUUM PUMP
29342-17010

S05C..XZU302,307,342

INNER

 1
29342-58010

S05C..XZU302,307,342

OUTER

 1
29351 - GEAR, VACUUM PUMP
29351-89101

S05C..XZU302,307,342

 1
Common parts
90031-05029
95161-10413
