XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )S05C

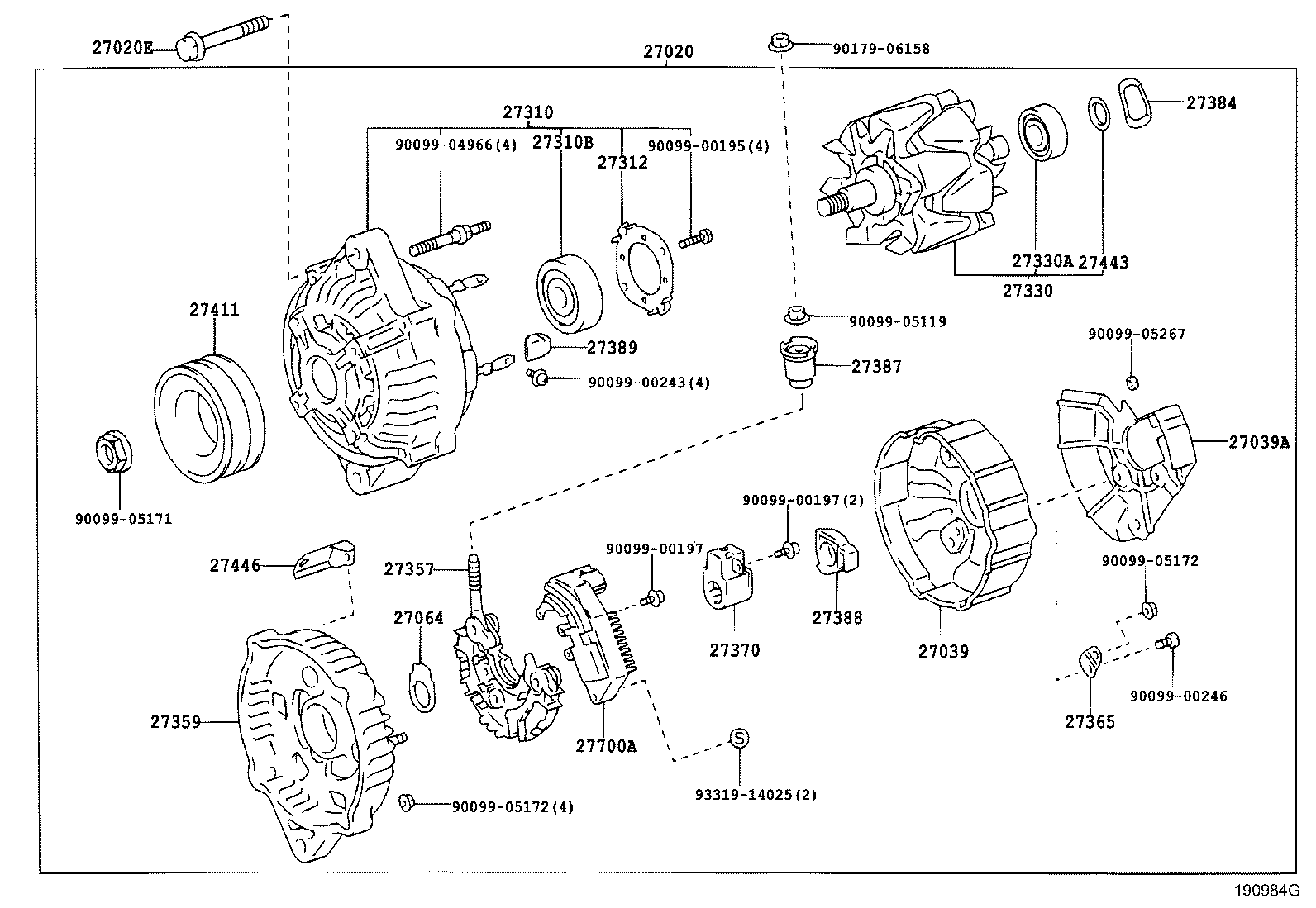

Click highlighted areas on diagram

24V 50A

diagram 27020 27020E 27039 27039A 27064 27310 27310B 27312 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27389 27411 27443 27446 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905171 9009905172 9009905172 9009905267 9017906158 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-78010

S05C..XZU302,307,342

24V 50A

 1
27020E - BOLT(FOR ALTERNATOR)
90031-05027

S05C..XZU302,307,342

 1
27039 - COVER, ALTERNATOR REAR END
27039-50090

S05C..XZU302,307,342

 1
27039A - COVER, ALTERNATOR REAR END, NO.2
27039-58330

S05C..XZU302,307,342

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

S05C,15BFTE..XZU30#,320,330,34#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-17080

S05C,15BFTE..XZU30#,320,330,34#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-58050

S05C..XZU302,307,342

 1
27365 - PLATE, TERMINAL
27365-55080

S05C,15BFTE..XZU30#,320,330,34#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

S05C,15BFTE..XZU30#,320,330,34#

 1
27384 - WASHER
27384-50030

S05C,15BFTE..XZU30#,320,330,34#

 1
27387 - INSULATOR, TERMINAL
27387-42021

S05C,15BFTE..XZU30#,320,330,34#

 1
27388 - COVER, ALTERNATOR BRUSH
27388-46220

S05C,15BFTE..XZU30#,320,330,34#

 1
27389 - INSULATOR, TERMINAL
27389-42010

S05C,15BFTE..XZU30#,320,330,34#

 4
27411 - PULLEY, ALTERNATOR
27411-89102

S05C..XZU302,307,342

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

S05C,15BFTE..XZU30#,320,330,34#

 1
27446 - CLIP, ALTERNATOR CORD
27446-50260

S05C..XZU302,307,342

 1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90099-05267
90179-06158
93319-14025
