XZU302-TPMMS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0010- )S05C

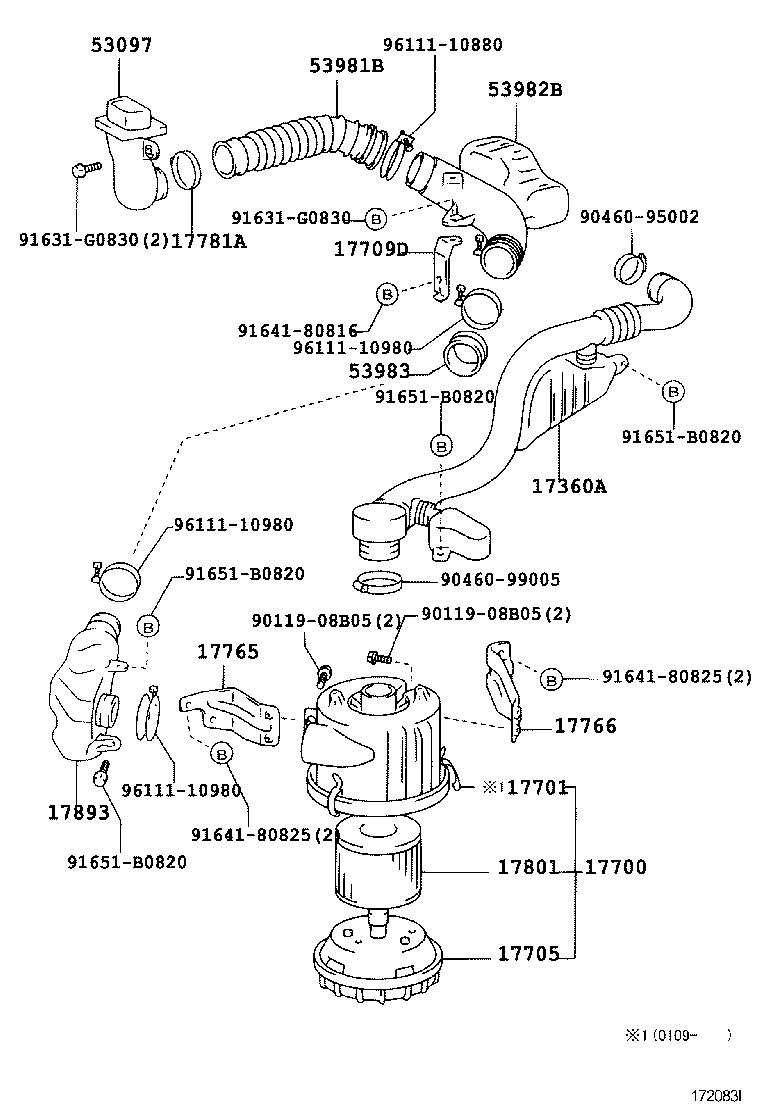

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17360A - TUBE ASSY, AIR | ||||
| 17360-78020 |
S05C..XZU302,307,342 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-78053 |
S05C..XZU302,307,342 |
1 | ||
| 17700-78052 |
S05C..XZU302,307,342 |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-78021 |
S05C..XZU302,307,342 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-78010 |
S05C..XZU302,307,342 |
1 | ||
| 17705-78011 |
S05C..XZU302,307,342 |
1 | ||
| 17709D - BRACKET, AIR CLEANER INLET, NO.1 | ||||
| 53772-37010 |
S05C..XZU302,307,342 |
1 | ||
| 17765 - STAY, AIR CLEANER, NO.1 | ||||
| 17765-78010 |
S05C..XZU302,307,342 |
1 | ||
| 17766 - STAY, AIR CLEANER, NO.2 | ||||
| 17766-78010 |
S05C..XZU302,307,342 |
1 | ||
| 17781A - CLAMP, HOSE | ||||
| 17781-78050 |
S05C..XZU302,307,342 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-78011 |
S05C..XZU302,307,342 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17805-78020 |
S05C..XZU302,307,342 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37200 |
XZU302,307,342 |
1 | ||
| 53981B - INLET, AIR CLEANER PIPE, NO.1 | ||||
| 53981-37060 |
XZU302,307,342 |
1 | ||
| 53982B - INLET, AIR CLEANER PIPE, NO.2 | ||||
| 53982-37020 |
XZU302,307,342 |
1 | ||
| 53983 - INLET, AIR CLEANER PIPE, NO.3 | ||||
| 53983-37020 |
XZU302,307,342 |
1 | ||
| Common parts | ||||
| 90119-08B05 | ||||
| 90460-95002 | ||||
| 90460-99005 | ||||
| 91631-G0830 | ||||
| 91641-80816 | ||||
| 91641-80825 | ||||
| 91651-B0820 | ||||
| 96111-10880 | ||||
| 96111-10980 | ||||
