XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )S05C

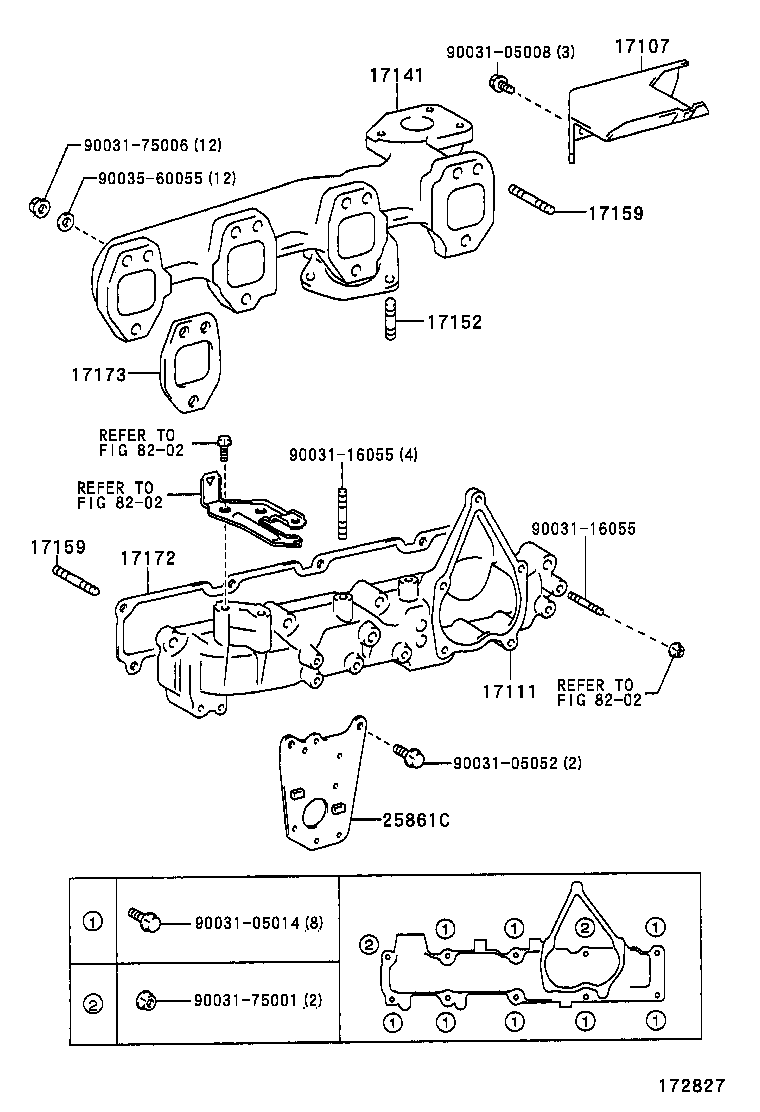

Click highlighted areas on diagram

diagram 17107 17111 17141 17152 17159 17159 17172 17173 25861C 8202 8202 8202 9003105008 9003105014 9003105052 9003116055 9003116055 9003175001 9003175006 9003560055
Part # Description Qty Price
17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT
17107-78010

S05C..XZU302,307,342

 1
17111 - MANIFOLD, INTAKE
17111-78020

S05C..XZU302,307,342

 1
17141 - MANIFOLD, EXHAUST
17141-78030

S05C..XZU302,307,342

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90031-16063

S05C..XZU302,307,342

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16054

S05C..XZU302,307,342

INTAKE SIDE

 2
90031-16069

S05C..XZU302,307,342

EXHAUST SIDE

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90031-16054

S05C..XZU302,307,342

INTAKE SIDE

 2
90031-16069

S05C..XZU302,307,342

EXHAUST SIDE

 12
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-78020

S05C..XZU302,307,342

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-89102

S05C..XZU302,307,342

 4
25861C - BRACKET, VACUUM SWITCHING VALVE
25861-78040

S05C..XZU302,307,342

 1
Common parts
90031-05008
90031-05014
90031-05052
90031-16055
90031-75001
90031-75006
90035-60055
Linked diagrams
8202
