XZU302-TPMMS3 (2000)
Toyota Dyna

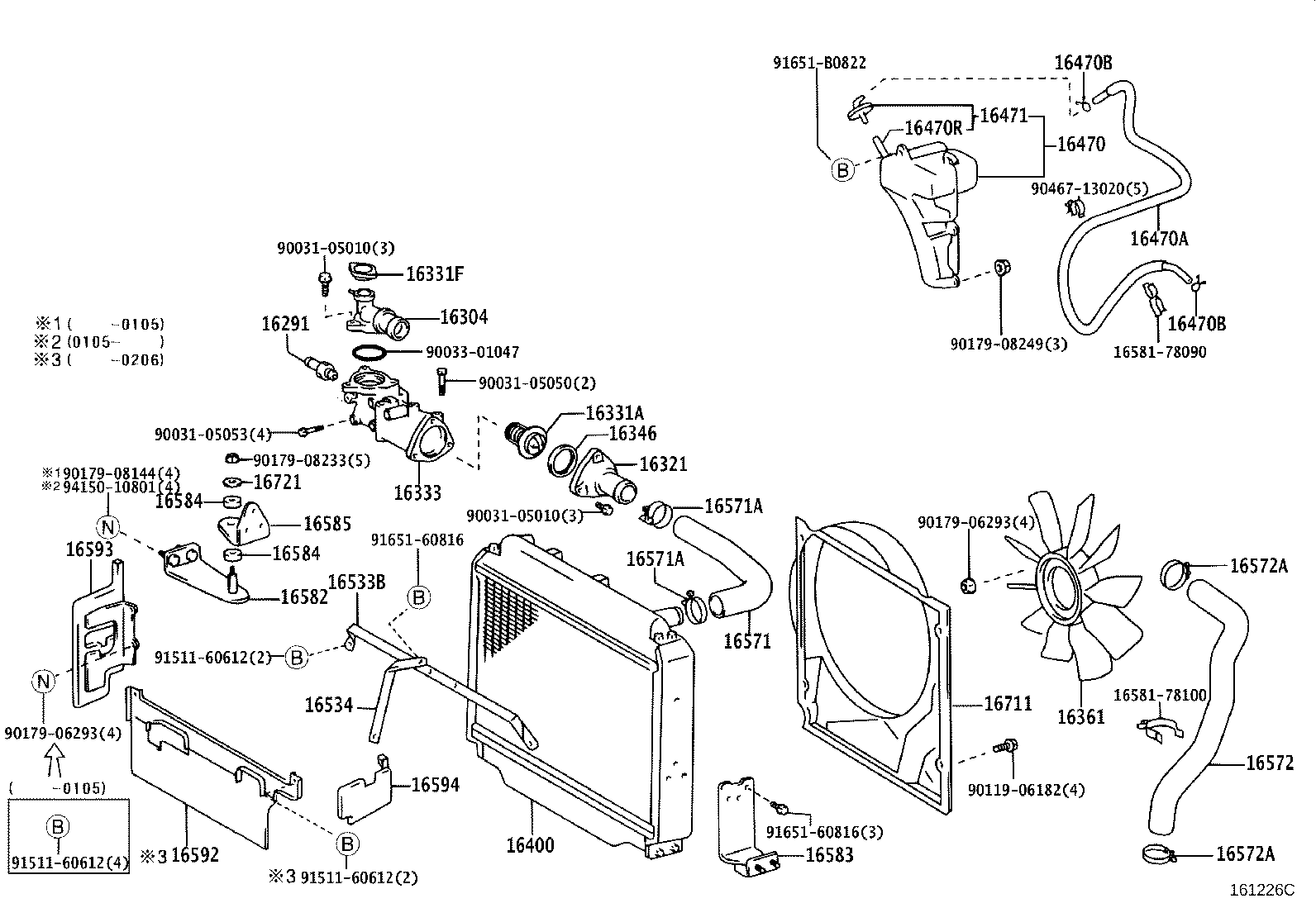

ILLUST NO. 1 OF 2(0010- )S05C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16291 - JOINT, WATER HOSE | ||||
| 87251-30190 |
S05C..XZU302,307,342 |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-78010 |
S05C..XZU302,307,342 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-78010 |
S05C..XZU302,307,342 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90038-33010 |
S05C..XZU302,307,342 *WAX 76.5-90 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-78110 |
S05C..XZU302,307,342 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-78031 |
S05C..XZU302,307,342 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78020 |
S05C..XZU302,307,342 |
1 | ||
| 16361 - FAN | ||||
| 16361-78050 |
S05C..XZU302,307,342 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78080 |
S05C..XZU302,307,342 |
1 | ||
| 16400-78081 |
S05C..XZU302,307,342 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78010 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78020 |
S05C..XZU302,307,342 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
S05C,15BFTE..XZU30#,320,330,34# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
S05C,15BFTE..XZU30#,320,330,34# |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
S05C,15BFTE..XZU30#,320,330,34# L=315 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78010 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78010 |
S05C..XZU302,307,342 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78020 |
S05C..XZU302,307,342 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78060 |
S05C..XZU302,307,342 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78050 |
S05C..XZU302,307,342 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 16581-78050 |
S05C..XZU302,307,342 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78040 |
S05C..XZU302,307,342 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78050 |
S05C..XZU302,307,342 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 16581-78050 |
S05C..XZU302,307,342 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78020 |
S05C..XZU302,307,342 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78010 |
S05C..XZU302,307,342 |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
S05C..XZU302,307,342 |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-78010 |
S05C..XZU302,307,342 |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78020 |
S05C..XZU302,307,342 |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78010 |
S05C..XZU302,307,342 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-78010 |
S05C..XZU302,307,342 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-78010 |
S05C..XZU302,307,342 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78020 |
S05C..XZU302,307,342 |
1 | ||
| 16721 - PLATE, HOLDER | ||||
| 16721-78010 |
S05C..XZU302,307,342 |
1 | ||
| Common parts | ||||
| 16581-78090 | ||||
| 16581-78100 | ||||
| 90031-05010 | ||||
| 90031-05050 | ||||
| 90031-05053 | ||||
| 90033-01047 | ||||
| 90119-06182 | ||||
| 90179-06293 | ||||
| 90179-08144 | ||||
| 90179-08233 | ||||
| 90179-08249 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91651-60816 | ||||
| 91651-B0822 | ||||
| 94150-10801 | ||||

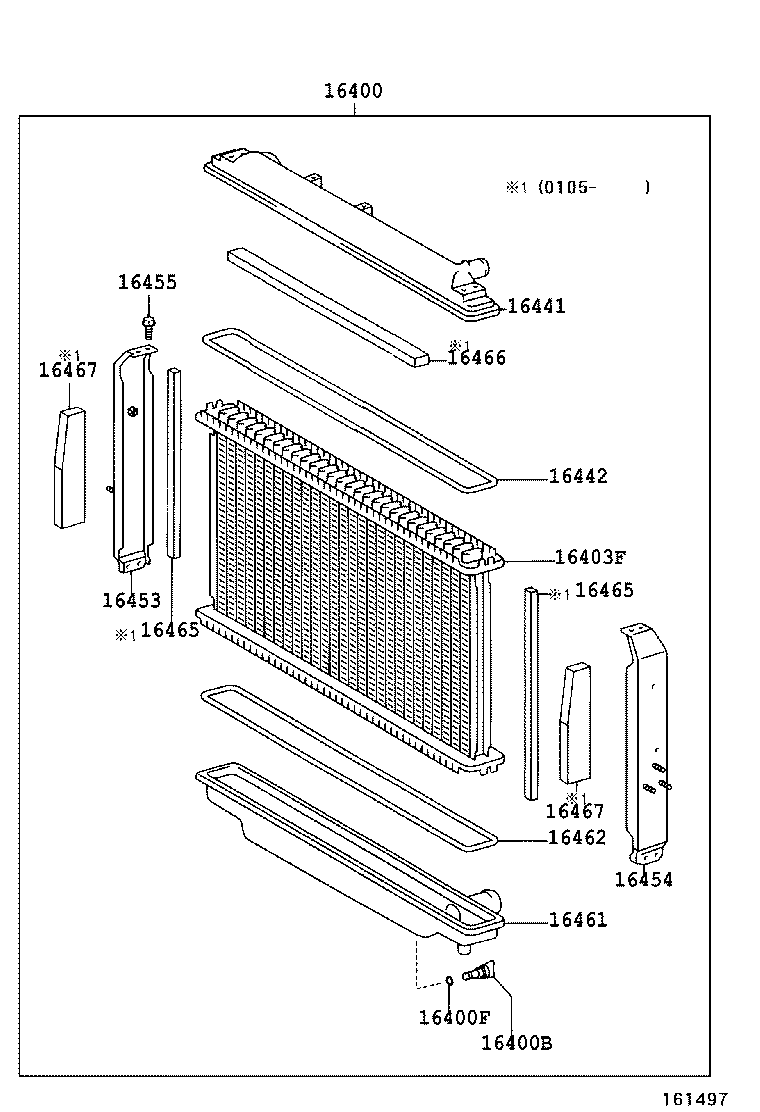

ILLUST NO. 2 OF 2(0010- )S05C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-78080 |
S05C..XZU302,307,342 |
1 | ||
| 16400-78081 |
S05C..XZU302,307,342 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-78080 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 16403-58681 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-78080 |
S05C..XZU302,307,342 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78080 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78080 |
S05C..XZU302,307,342 |
1 | ||
| 16453-78081 |
S05C..XZU302,307,342 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78080 |
S05C..XZU302,307,342 |
1 | ||
| 16454-78081 |
S05C..XZU302,307,342 |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
S05C,15BFTE..XZU30#,320,330,34# |
8 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-78080 |
S05C..XZU302,307,342 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78080 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
S05C..XZU302,307,342 |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-78080 |
S05C..XZU302,307,342 |
2 | ||
| 16466 - SEAL, RADIATOR | ||||
| 16466-78080 |
S05C..XZU302,307,342 |
1 | ||
| 16466-78080 |
S05C,15BFTE..XZU30#,320,330,34# |
1 | ||
| 16467 - SIDE SEAL | ||||
| 16467-78080 |
S05C..XZU302,307,342 |
2 | ||
| 16467-78080 |
S05C,15BFTE..XZU30#,320,330,34# |
2 | ||
| 16467 - SIDE SEAL | ||||
| 16467-78080 |
S05C..XZU302,307,342 |
2 | ||
| 16467-78080 |
S05C,15BFTE..XZU30#,320,330,34# |
2 | ||
