XZU302-TPMMS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0010- )S05C

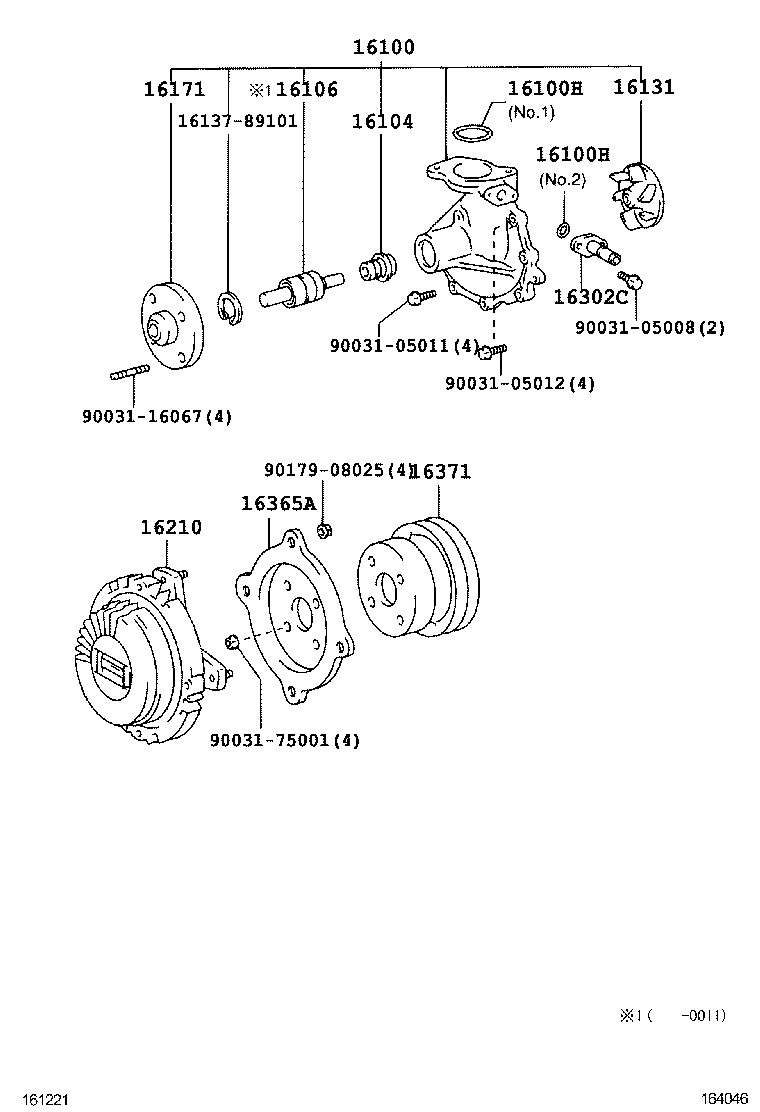

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-78030 |
S05C..XZU302,307,342 |
1 | ||
| 16100-78050 |
S05C..XZU302,307,342 |
1 | ||
| 16100H - RING, O(FOR WATER PUMP) | ||||
| 90033-01047 |
S05C..XZU302,307,342 NO.1 |
1 | ||
| 90033-01060 |
S05C..XZU302,307,342 NO.2 |
1 | ||
| 16100H - RING, O(FOR WATER PUMP) | ||||
| 90033-01047 |
S05C..XZU302,307,342 NO.1 |
1 | ||
| 90033-01060 |
S05C..XZU302,307,342 NO.2 |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-89103 |
S05C..XZU302,307,342 |
1 | ||
| 16106 - BEARING & SHAFT SUB-ASSY, WATER PUMP | ||||
| 16106-89103 |
S05C..XZU302,307,342 |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-89102 |
S05C..XZU302,307,342 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-89103 |
S05C..XZU302,307,342 |
1 | ||
| 16171-89104 |
S05C..XZU302,307,342 |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16250-78050 |
S05C..XZU302,307,342 |
1 | ||
| 16250-78080 |
S05C..XZU302,307,342 |
1 | ||
| 16302C - PIPE SUB-ASSY, WATER INLET | ||||
| 16302-78020 |
S05C..XZU302,307,342 |
1 | ||
| 16365A - SPACER, FAN | ||||
| 16365-78040 |
S05C..XZU302,307,342 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16308-78020 |
S05C..XZU302,307,342 |
1 | ||
| Common parts | ||||
| 16137-89101 | ||||
| 90031-05008 | ||||
| 90031-05011 | ||||
| 90031-05012 | ||||
| 90031-16067 | ||||
| 90031-75001 | ||||
| 90179-08025 | ||||
