XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )S05C

Click highlighted areas on diagram

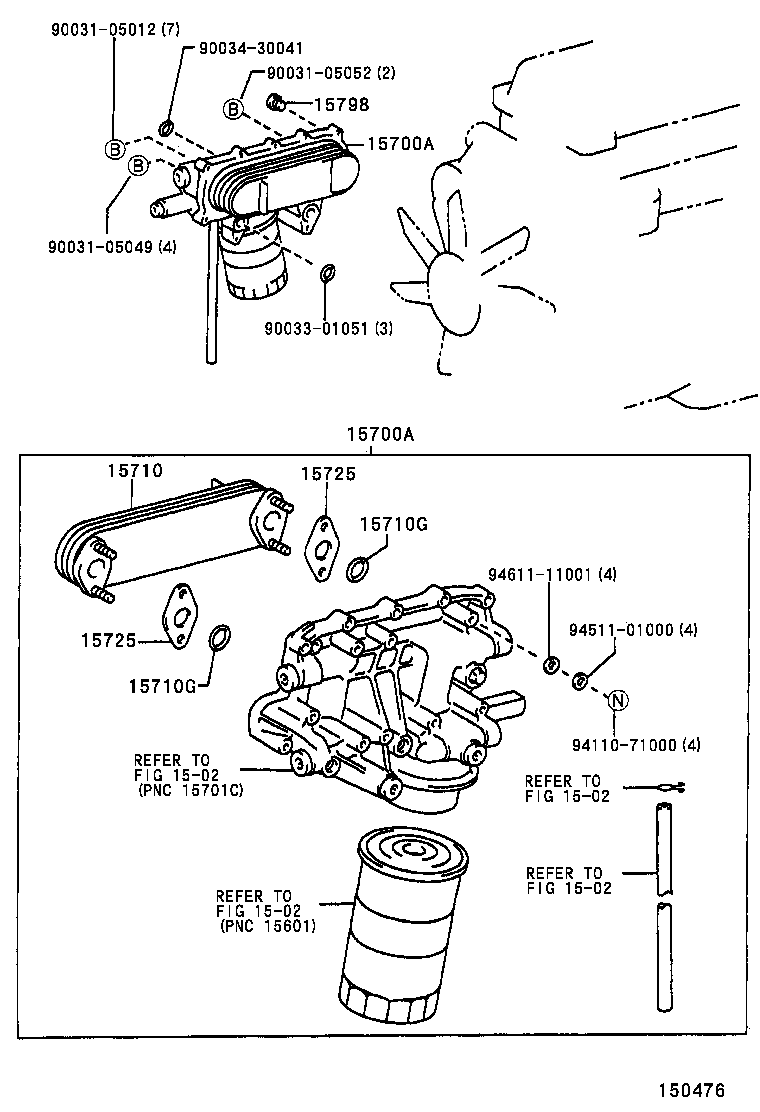

diagram 1502 1502 1502 1502 15700A 15700A 15710 15710G 15710G 15725 15725 15798 9003105012 9003105049 9003105052 9003301051 9003430041 9411071000 9451101000 9461111001
Part # Description Qty Price
15700A - COOLER ASSY, OIL W/BRACKET
15700-78071

S05C..XZU302,307,342

 1
15700A - COOLER ASSY, OIL W/BRACKET
15700-78071

S05C..XZU302,307,342

 1
15710 - COOLER ASSY, OIL
15710-78030

S05C..XZU302,307,342

 1
15710G - RING, O, NO.2
90033-01055

S05C..XZU302,307,342

 2
15710G - RING, O, NO.2
90033-01055

S05C..XZU302,307,342

 2
15725 - GASKET, OIL COOLER COVER
15781-89101

S05C..XZU302,307,342

 2
15725 - GASKET, OIL COOLER COVER
15781-89101

S05C..XZU302,307,342

 2
15798 - PLUG, OIL NOZZLE UNION BOLT
15798-89101

S05C..XZU302,307,342

 1
Common parts
90031-05012
90031-05049
90031-05052
90033-01051
90034-30041
94110-71000
94511-01000
94611-11001
Linked diagrams
1502
