XZU302-TPMMS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )S05C

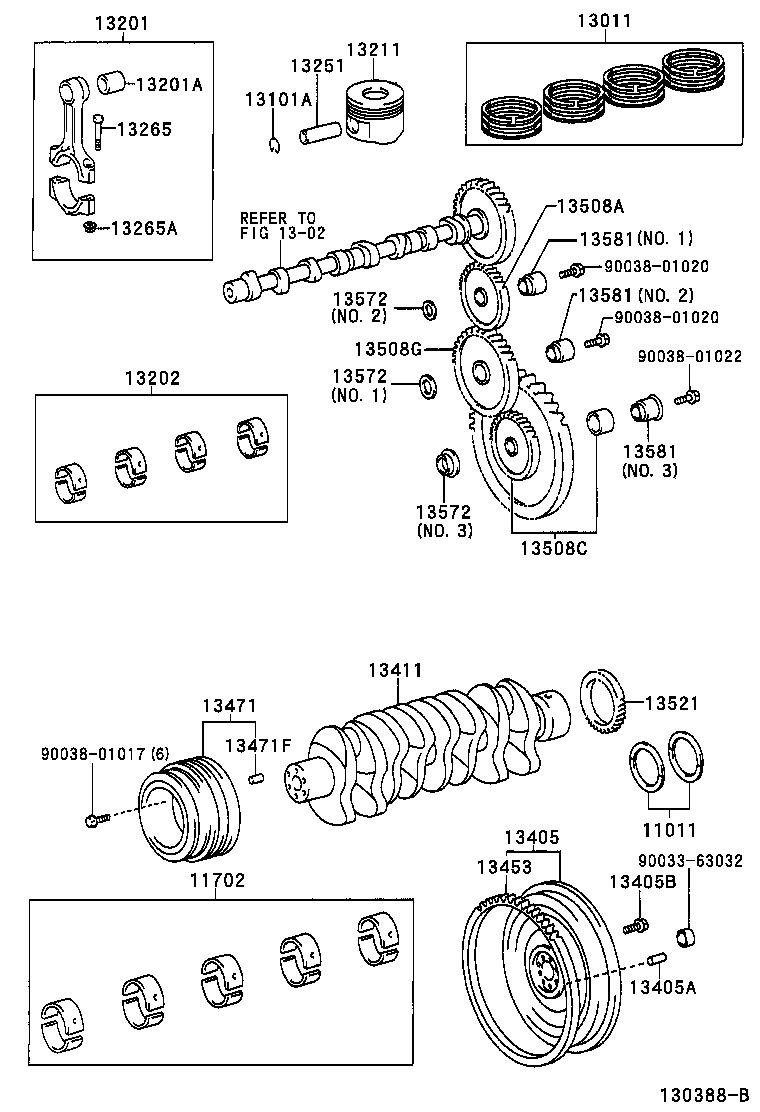

Click highlighted areas on diagram

diagram 11011 11702 13011 1302 13101A 13201 13201A 13202 13211 13251 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471F 13508A 13508C 13508G 13521 13572 13572 13572 13581 13581 13581 9003363032 9003801017 9003801020 9003801020 9003801022
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-78020

S05C..XZU302,307,342

STD

 1
11013-89104

S05C..XZU302,307,342

O/S 0.250

 1
11702 - BEARING SET, CRANKSHAFT
11704-89104

S05C..XZU302,307,342

U/S 0.25

 1
11701-89104

S05C..XZU302,307,342

STD

 1
11706-89103

S05C..XZU302,307,342

U/S 0.75

 1
11707-89103

S05C..XZU302,307,342

U/S 1.00

 1
11705-89104

S05C..XZU302,307,342

U/S 0.50

 1
13011 - RING SET, PISTON
13011-78030

S05C..XZU302,307,342

STD

 1
13011-78031

S05C..XZU302,307,342

STD

 1
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90035-21020

S05C..XZU302,307,342

 8
13201 - ROD SUB-ASSY, CONNECTING
13260-78021

S05C..XZU302,307,342

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
13271-89101

S05C..XZU302,307,342

 4
13202 - BEARING SET, CONNECTING ROD
13204-89101

S05C..XZU302,307,342

U/S 0.25

 1
13205-89101

S05C..XZU302,307,342

U/S 0.50

 1
13041-89101

S05C..XZU302,307,342

STD

 1
13206-89101

S05C..XZU302,307,342

U/S 0.75

 1
13207-89101

S05C..XZU302,307,342

U/S 1.00

 1
13211 - PISTON
13218-78020

S05C..XZU302,307,342

 4
13251 - PIN, PISTON
13251-89101

S05C..XZU302,307,342

 4
13265 - BOLT, CONNECTING ROD
13265-78020

S05C..XZU302,307,342

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
13266-89102

S05C..XZU302,307,342

 8
13405 - FLYWHEEL SUB-ASSY
13450-78010

S05C..XZU302,307,342

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-10008

S05C..XZU302,307,342

L=24,OD=10

 2
13405B - BOLT, FLYWHEEL SETTING
90031-09050

S05C..XZU302,307,342

 8
13411 - CRANKSHAFT
13411-78030

S05C..XZU302,307,342

 1
13453 - GEAR, FLYWHEEL RING
13453-89102

S05C..XZU302,307,342

 1
13471 - PULLEY, CRANKSHAFT
13470-78040

S05C..XZU302,307,342

 1
13471F - PIN, STRAIGHT(FOR CRANKSHAFT PULLEY)
90250-08016

S05C..XZU302,307,342

 1
13508A - GEAR SUB-ASSY, IDLE
13508-78030

S05C..XZU302,307,342

 1
13508C - GEAR SUB-ASSY, IDLE, NO.2
13508-89103

S05C..XZU302,307,342

 1
13508-89104

S05C..XZU302,307,342

 1
13508G - GEAR SUB-ASSY, IDLE, NO.3
13508-89101

S05C..XZU302,307,342

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-89102

S05C..XZU302,307,342

 1
13572 - PLATE, IDLE GEAR THRUST
13572-89104

S05C..XZU302,307,342

NO.2

 1
13572-89105

S05C..XZU302,307,342

NO.3

 1
13572-78010

S05C..XZU302,307,342

NO.1

 1
13572 - PLATE, IDLE GEAR THRUST
13572-89104

S05C..XZU302,307,342

NO.2

 1
13572-89105

S05C..XZU302,307,342

NO.3

 1
13572-78010

S05C..XZU302,307,342

NO.1

 1
13572 - PLATE, IDLE GEAR THRUST
13572-89104

S05C..XZU302,307,342

NO.2

 1
13572-89105

S05C..XZU302,307,342

NO.3

 1
13572-78010

S05C..XZU302,307,342

NO.1

 1
13581 - SHAFT, IDLE GEAR, NO.1
13581-78020

S05C..XZU302,307,342

NO.1

 1
13581-89102

S05C..XZU302,307,342

NO.3

 1
13581-78030

S05C..XZU302,307,342

NO.2

 1
13581 - SHAFT, IDLE GEAR, NO.1
13581-78020

S05C..XZU302,307,342

NO.1

 1
13581-89102

S05C..XZU302,307,342

NO.3

 1
13581-78030

S05C..XZU302,307,342

NO.2

 1
13581 - SHAFT, IDLE GEAR, NO.1
13581-78020

S05C..XZU302,307,342

NO.1

 1
13581-89102

S05C..XZU302,307,342

NO.3

 1
13581-78030

S05C..XZU302,307,342

NO.2

 1
Common parts
90033-63032
90038-01017
90038-01020
90038-01022
Linked diagrams
1302
