XZU302-TPMMS3 (2000)
Toyota Dyna
(0010- )S05C

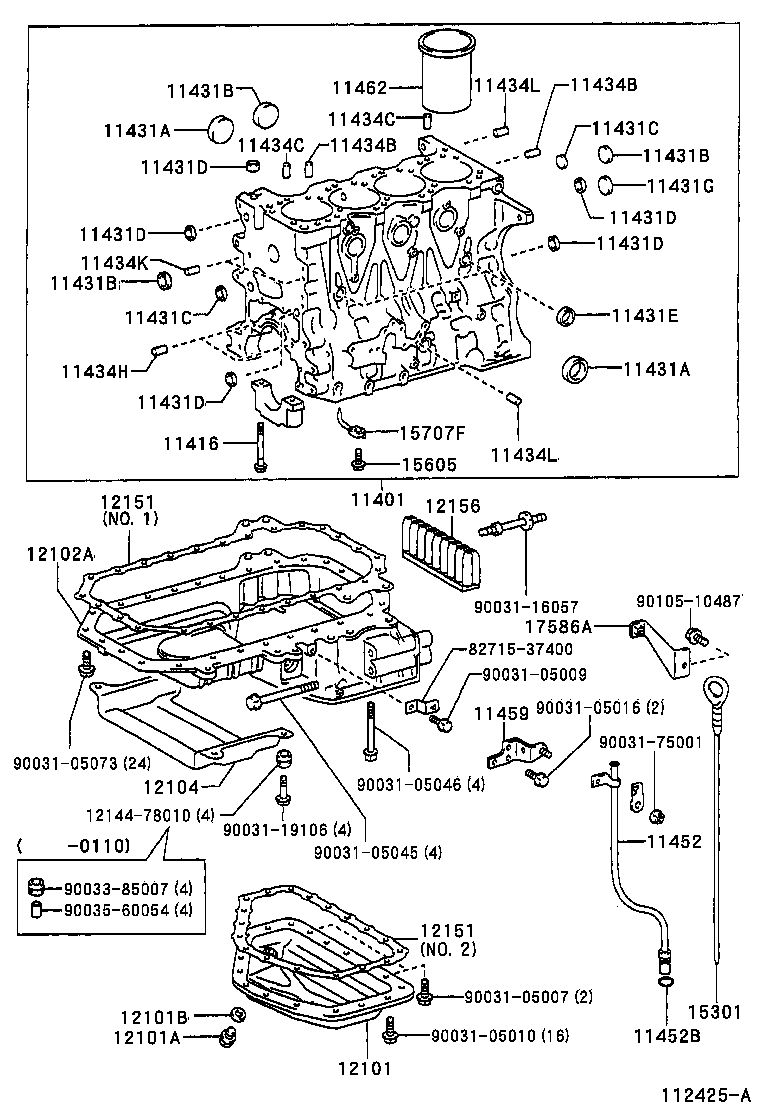

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-78031 |
S05C..XZU302,307,342 |
1 | ||
| 11401-78030 |
S05C..XZU302,307,342 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90031-09052 |
S05C..XZU302,307,342 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
S05C..XZU302,307,342 OD=50 |
4 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90033-31026 |
S05C..XZU302,307,342 OD=50 |
4 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31027 |
S05C..XZU302,307,342 OD=42 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31027 |
S05C..XZU302,307,342 OD=42 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90033-31027 |
S05C..XZU302,307,342 OD=42 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31021 |
S05C..XZU302,307,342 OD=22 |
2 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90033-31021 |
S05C..XZU302,307,342 OD=22 |
2 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
S05C..XZU302,307,342 OD=17 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
S05C..XZU302,307,342 OD=17 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
S05C..XZU302,307,342 OD=17 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
S05C..XZU302,307,342 OD=17 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90033-31020 |
S05C..XZU302,307,342 OD=17 |
5 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 90033-31025 |
S05C..XZU302,307,342 OD=26 |
3 | ||
| 11431G - PLUG, TIGHT | ||||
| 90033-31025 |
S05C..XZU302,307,342 OD=26 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08016 |
S05C..XZU302,307,342 L=16,OD=8 |
3 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-08016 |
S05C..XZU302,307,342 L=16,OD=8 |
3 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08016 |
S05C..XZU302,307,342 L=16,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08016 |
S05C..XZU302,307,342 L=16,OD=8 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90250-08016 |
S05C..XZU302,307,342 |
2 | ||
| 11434K - PIN, STRAIGHT(FOR WATER PUMP) | ||||
| 90250-08016 |
S05C..XZU302,307,342 |
2 | ||
| 11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING) | ||||
| 90250-08015 |
S05C..XZU302,307,342 |
2 | ||
| 11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING) | ||||
| 90250-08015 |
S05C..XZU302,307,342 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-78050 |
S05C..XZU302,307,342 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90033-01058 |
S05C..XZU302,307,342 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-78020 |
S05C..XZU302,307,342 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-78090 |
S05C..XZU302,307,342 MARK A |
4 | ||
| 11461-78100 |
S05C..XZU302,307,342 MARK B |
4 | ||
| 11461-78110 |
S05C..XZU302,307,342 MARK C |
4 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-78020 |
S05C..XZU302,307,342 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90033-41020 |
S05C..XZU302,307,342 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90202-18002 |
S05C..XZU302,307,342 |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12111-78030 |
S05C..XZU302,307,342 |
1 | ||
| 12104 - COVER SUB-ASSY, OIL PAN, NO.1 | ||||
| 12104-78011 |
S05C..XZU302,307,342 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-78010 |
S05C..XZU302,307,342 NO.1 |
1 | ||
| 12151-78020 |
S05C..XZU302,307,342 NO.2 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-78010 |
S05C..XZU302,307,342 NO.1 |
1 | ||
| 12151-78020 |
S05C..XZU302,307,342 NO.2 |
1 | ||
| 12156 - INSULATOR, OIL PAN | ||||
| 12156-78010 |
S05C..XZU302,307,342 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-78040 |
S05C..XZU302,307,342 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15703-78010 |
S05C..XZU302,307,342 |
4 | ||
| 15707F - PIPE SUB-ASSY, OIL | ||||
| 15707-78010 |
S05C..XZU302,307,342 |
4 | ||
| 17586A - BRACKET, HEAT INSULATOR | ||||
| 17586-78020 |
S05C..XZU302,307,342 |
1 | ||
| Common parts | ||||
| 12144-78010 | ||||
| 82715-37400 | ||||
| 90031-05007 | ||||
| 90031-05009 | ||||
| 90031-05010 | ||||
| 90031-05016 | ||||
| 90031-05045 | ||||
| 90031-05046 | ||||
| 90031-05073 | ||||
| 90031-16057 | ||||
| 90031-19106 | ||||
| 90031-75001 | ||||
| 90033-85007 | ||||
| 90035-60054 | ||||
| 90105-10487 | ||||
