XZU302-TPMLS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

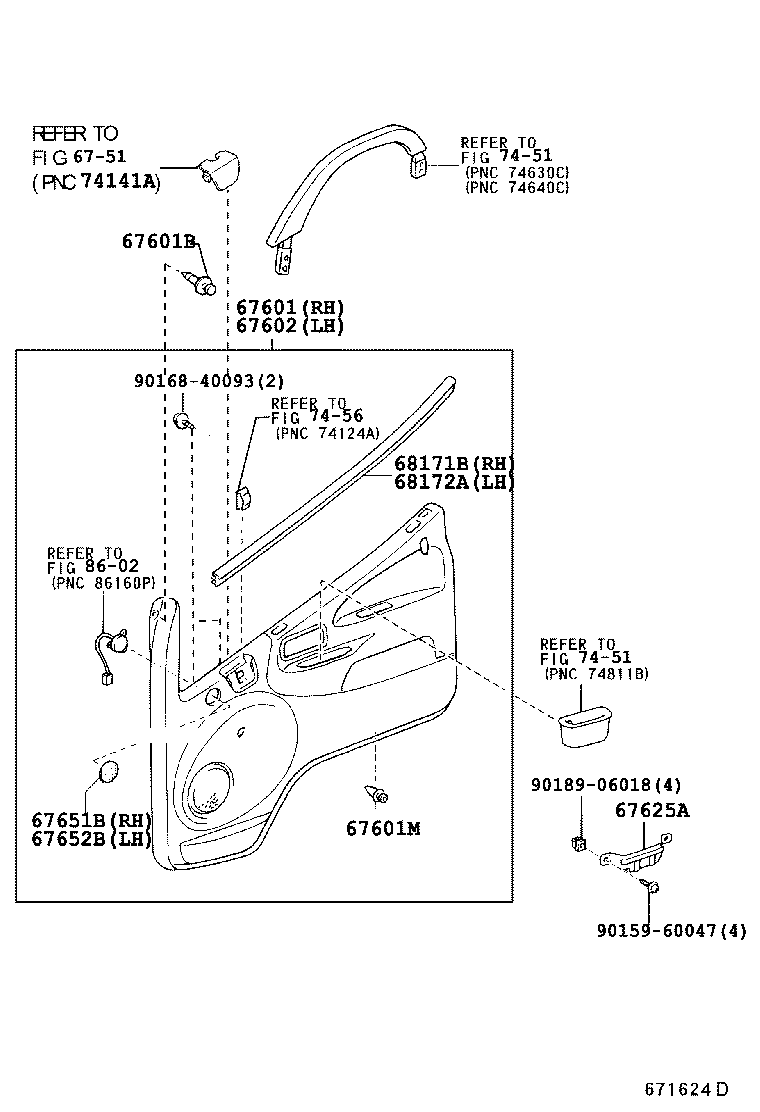

ILLUST NO. 1 OF 3(9907-0212)

Click highlighted areas on diagram

diagram 6751 67601 67601B 67601M 67602 67625A 67651B 67652B 68171B 68172A 7451 7451 7456 8602 9015960047 9016840093 9018906018
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-37090B0

XZU30#,320,330,34#

W(POWER WINDOW),MD.CHARCOAL,TRIM1#

 1
67610-37080B0

XZU302,307,342

MD.CHACORL,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-0707122

XZU302,307,342

BLACK,058 ,199 ,766 ,8P0

 2
90467-07071B6

XZU30#,320,330,34#

MD.CHARCOAL,TRIM1#

 2
67601M - RETAINER, DOOR TRIM, NO.2
67771-12050

XZU30#,320,330,34#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-37130B0

XZU302,307,342

MD.CHARCORL,TRIM1#

 1
67620-37140B0

XZU30#,320,330,34#

W(POWER WINDOW),MD.CHARCOAL,TRIM1#

 1
67625A - BRACKET, FRONT DOOR TRIM, NO.1
67625-26010

XZU30#,320,330,34#

 2
67651B - GRILLE, SPEAKER DOOR, RH
67651-37040B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
67652B - GRILLE, SPEAKER DOOR, LH
67651-37040B0

XZU302,307,342

MD.CHARCOAL,TRIM1#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-37010

XZU30#,320,330,34#

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-37010

XZU30#,320,330,34#

 1
Common parts
90159-60047
90168-40093
90189-06018
Linked diagrams
6751
7451
7456
8602

ILLUST NO. 3 OF 3(0010- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
