XZU302-TPMLS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

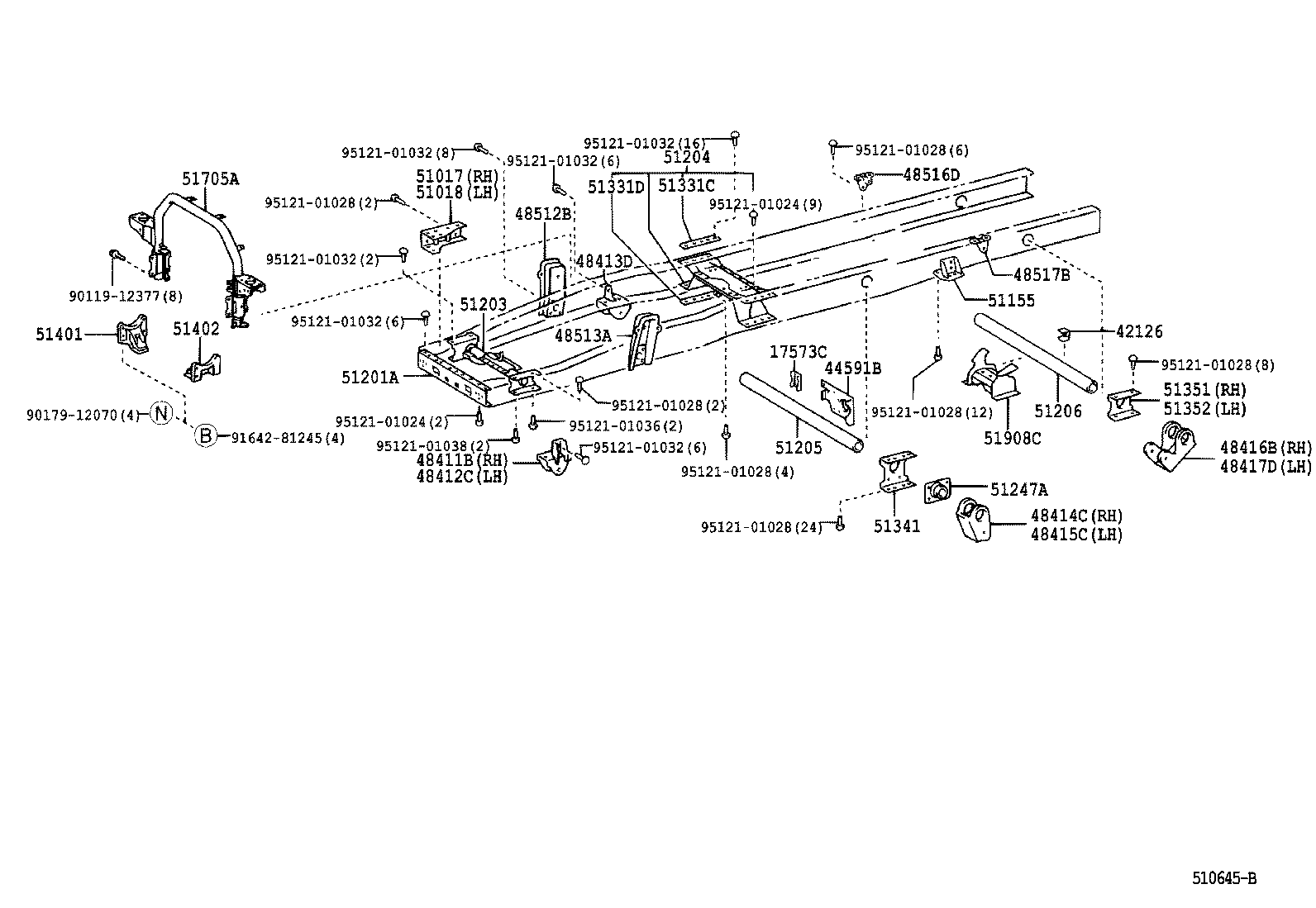

ILLUST NO. 2 OF 2(0010- )ST

Click highlighted areas on diagram

FRAME

diagram 17573C 42126 44591B 48411B 48412C 48413D 48414C 48415C 48416B 48417D 48512B 48513A 48516D 48517B 51017 51018 51155 51201A 51203 51204 51205 51206 51247A 51331C 51331D 51341 51351 51352 51401 51402 51705A 51908C 9011912377 9017912070 9164281245 9512101024 9512101024 9512101028 9512101028 9512101028 9512101028 9512101028 9512101028 9512101028 9512101032 9512101032 9512101032 9512101032 9512101032 9512101032 9512101036 9512101038
Part # Description Qty Price
17573C - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78020

S05C..XZU302..ST

 1
42126 - ATTACHMENT, BRAKE 3 WAY
42126-37020

XZU302..ST

 2
44591B - BRACKET, BRAKE ACTUATOR
44591-37030

XZU302..ST

 1
48411B - BRACKET, SPRING, NO.1 RH
48411-37070

XZU300,302,330,34#

 1
48412C - BRACKET, SPRING, NO.1 LH
48412-37060

XZU300,302,330,34#

 1
48413D - BRACKET, SPRING, NO.2
48413-37060

XZU300,302,330,34#

 2
48414C - BRACKET, SPRING, NO.3 RH
48414-37120

XZU302..ST

 1
48415C - BRACKET, SPRING, NO.3 LH
48415-37030

XZU302..ST

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-37090

XZU302..ST

 1
48417D - BRACKET, SPRING, NO.4 LH
48416-37090

XZU302..ST

 1
48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37050

XZU300,302,320,330,34#

 1
48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-37050

XZU300,302,320,330,34#

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48516-37020

XZU302..ST

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48516-37020

XZU302..ST

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37020

XZU302,342

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37020

XZU302,307,342

 1
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37070

XZU302..ST

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37090

XZU30#,330,34#

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37080

XZU30#,330,34#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37120

XZU302

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-37040

XZU302..ST

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51241-37040

XZU302..ST

 1
51247A - REINFORCEMENT, FRAME NO.4 CROSSMEMBER
51247-37010

XZU302..ST

 2
51331C - GUSSET, FRAME NO.3 CROSSMEMBER
51331-37020

XZU302,342

 2
51331D - GUSSET, FRAME NO.3 CROSSMEMBER
51331-37030

XZU302,342

 2
51341 - GUSSET, FRAME NO.4 CROSSMEMBER, RH
51341-37030

XZU302..ST

 2
51351 - GUSSET, CROSSMEMBER, NO.5 RH
51351-37060

XZU302..ST

 1
51352 - GUSSET, CROSSMEMBER, NO.5 LH
51351-37060

XZU302..ST

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-37090

XZU302,342

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-37070

XZU302,342

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-37070

XZU302,342

 1
51908C - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-37150

XZU302..ST

 1
Common parts
90119-12377
90179-12070
91642-81245
95121-01024
95121-01028
95121-01032
95121-01036
95121-01038
