XZU302-TPMLS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0010- )XZU302,307,342

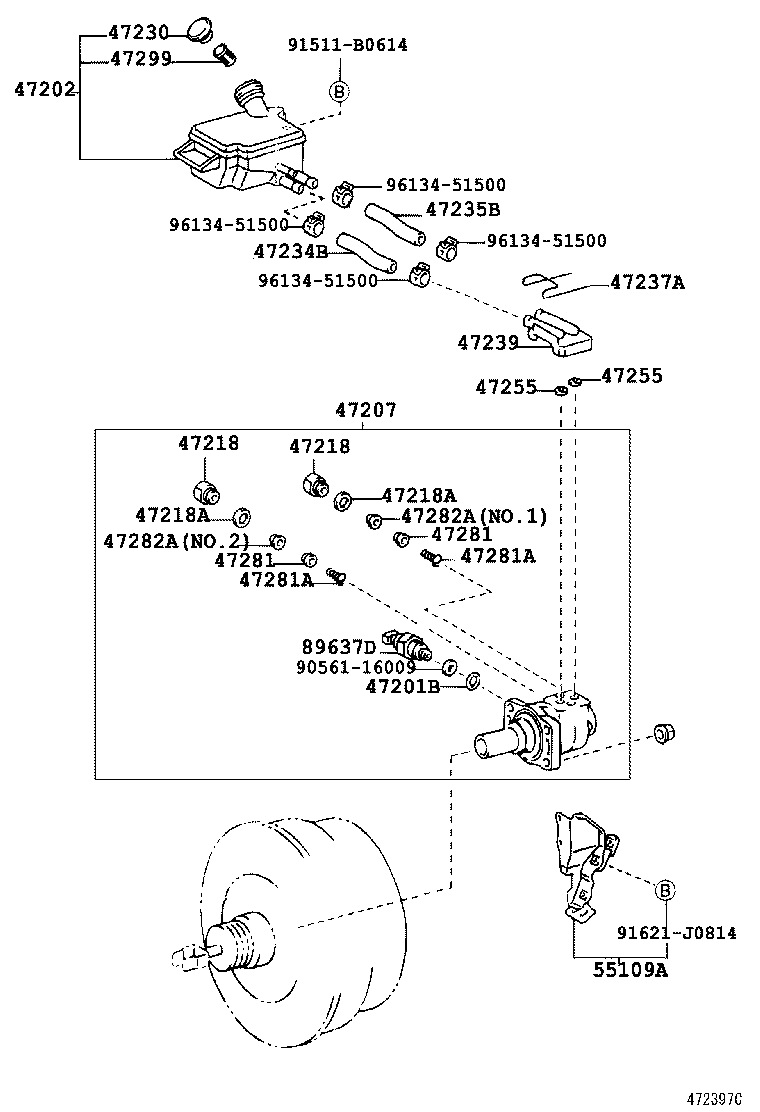

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90301-15014 |
XZU302,307,342 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-37050 |
XZU302,307,342 |
1 | ||
| 47220-37051 |
XZU302,307,342 |
1 | ||
| 47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK | ||||
| 47207-36021 |
XZU302,307,342 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36091 |
XZU30#,320,330,34# |
2 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-36091 |
XZU30#,320,330,34# |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-16013 |
XZU30#,320,330,34# |
2 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-16013 |
XZU30#,320,330,34# |
2 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-37020 |
XZU30#,320,330,34# |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-37080 |
XZU302,307,342 |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-37070 |
XZU302,307,342 |
1 | ||
| 47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK | ||||
| 47237-36020 |
XZU30#,320,330,34# |
1 | ||
| 47239 - CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47239-37010 |
XZU302,307,342 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
XZU30#,320,330,34# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-52010 |
XZU30#,320,330,34# |
2 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-36010 |
XZU30#,320,330,34# |
2 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-36010 |
XZU30#,320,330,34# |
2 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90905-01054 |
XZU30#,320,330,34# |
2 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90905-01054 |
XZU30#,320,330,34# |
2 | ||
| 47282A - SEAT, OUTLET CHECK VALVE, NO.1 | ||||
| 47282-36020 |
XZU302,307,342 NO.2 |
1 | ||
| 47282-36010 |
XZU302,307,342 NO.1 |
1 | ||
| 47282A - SEAT, OUTLET CHECK VALVE, NO.1 | ||||
| 47282-36020 |
XZU302,307,342 NO.2 |
1 | ||
| 47282-36010 |
XZU302,307,342 NO.1 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-28010 |
XZU30#,320,330,34# |
1 | ||
| 55109A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 55109-37010 |
XZU30#,320,330,34# |
1 | ||
| 89637D - SENSOR, OIL PRESSURE | ||||
| 89637-51010 |
XZU302,307,342 |
1 | ||
| Common parts | ||||
| 90561-16009 | ||||
| 91511-B0614 | ||||
| 91621-J0814 | ||||
| 96134-51500 | ||||
