XZU302-TPMLS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

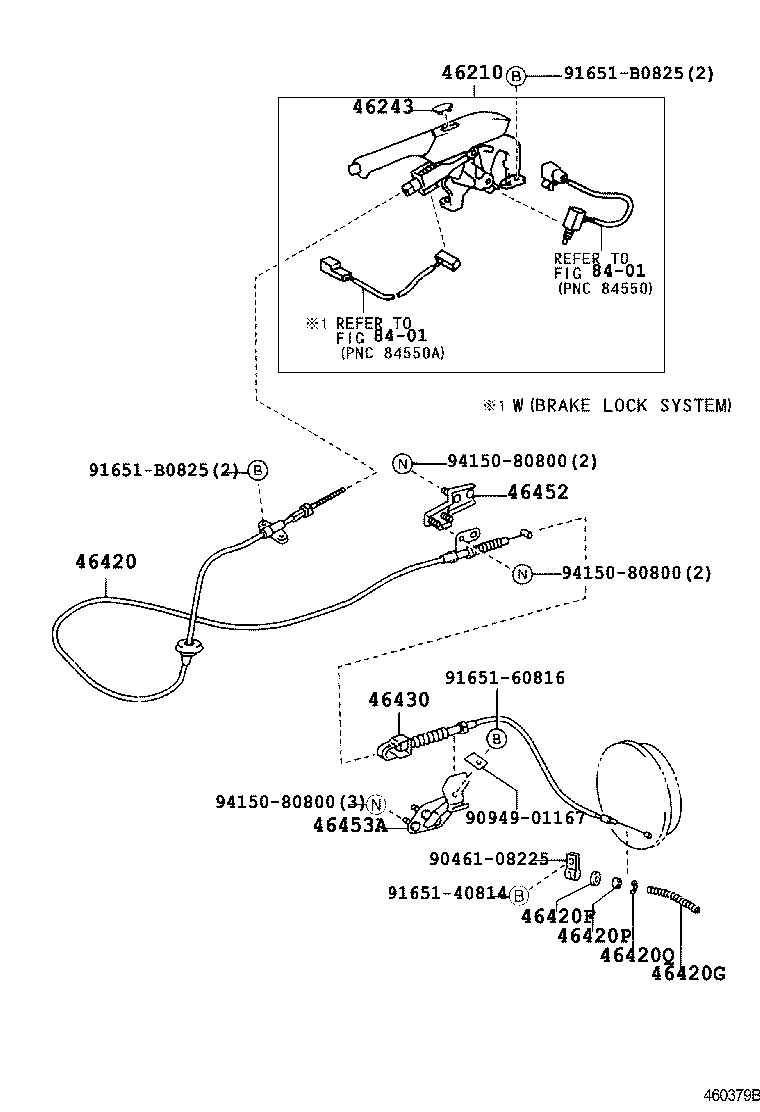

ILLUST NO. 1 OF 2(0010- )20T

Click highlighted areas on diagram

diagram 46210 46243 46420 46420F 46420G 46420P 46420Q 46430 46452 46453A 8401 8401 9046108225 9094901167 9165140814 9165160816 91651B0825 91651B0825 9415080800 9415080800 9415080800
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-37012B0

XZU302,307,342

DK.CHARCOAL,TRIM1#

 1
46243 - COVER, PARKING BRAKE LEVER
46243-37020B0

XZU302,307,342

DK.CHARCOAL,TRIM1#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37161

XZU302,307,342

 1
46420F - SEAL, DUST(FOR PARKING BRAKE CABLE)
90303-10001

XZU30#,320,330,342..20T,30T

 1
46420Q - RING, E(FOR PARKING BRAKE CABLE)
96160-00700

XZU30#,320,330,342..20T,30T

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37500

XZU302,307

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-37020

XZU30#,330,34#

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37070

XZU30#,330,34#

 1
Common parts
90461-08225
90949-01167
91651-40814
91651-60816
91651-B0825
94150-80800
Linked diagrams
8401
