XZU302-TPMLS3 (2000)
Toyota Dyna
Production
Oct 2000
-
Jun 2002
Engine
S05C
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0010- )XZU302,307

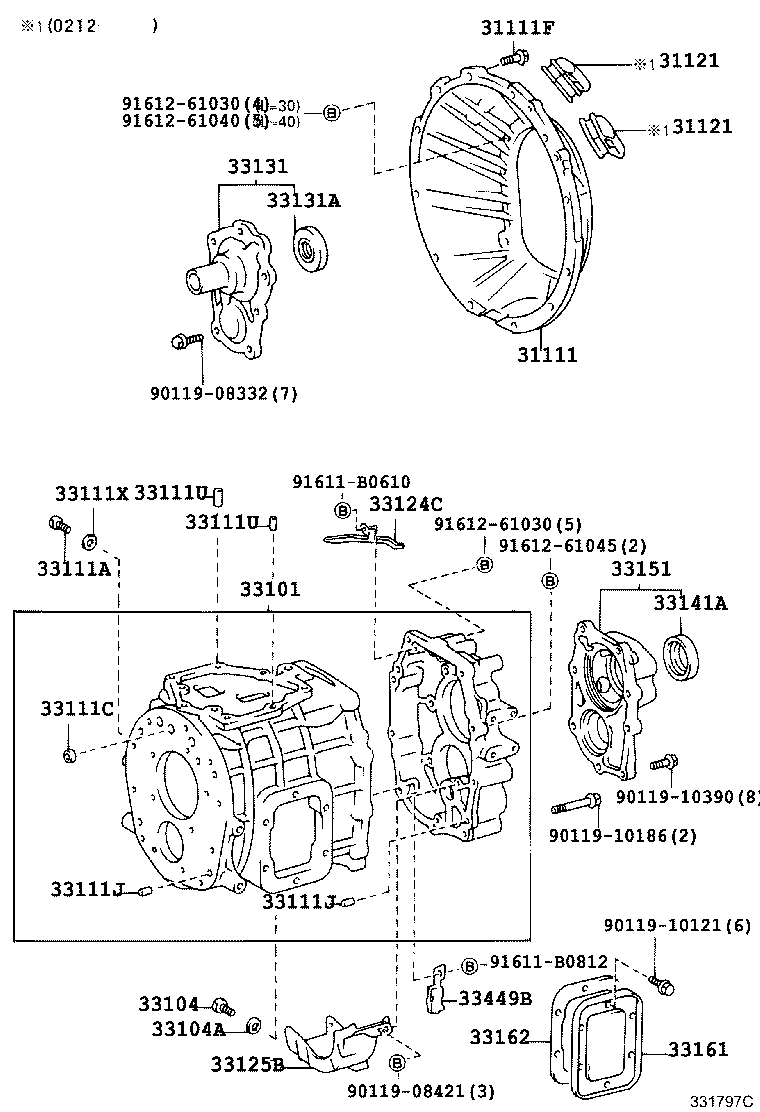

Click highlighted areas on diagram
M155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-37030 |
XZU302,307 |
1 | ||
| 31111F - BOLT(FOR CLUTCH HOUSING & ENGINE SETTING) | ||||
| 90119-10898 |
XZU302,307,342 |
12 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU30#,320,330,34# |
2 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU30#,320,330,34# |
2 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-36083 |
XZU302,307 |
1 | ||
| 33101-36084 |
XZU302,307 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
XZU30#,320,330,34# |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
XZU30#,320,330,34# |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
XZU30#,320,330,34# |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-11600 |
XZU302,307 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
XZU302,307 L=16,OD=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
XZU302,307 L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-13017 |
XZU302,307 L=12,OD=13 |
2 | ||
| 90253-11001 |
XZU302,307 L=11,OD=11 |
1 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-13017 |
XZU302,307 L=12,OD=13 |
2 | ||
| 90253-11001 |
XZU302,307 L=11,OD=11 |
1 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
XZU302,307 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
XZU302,307 |
1 | ||
| 33125B - RECEIVER, MANUAL TRANSMISSION CASE | ||||
| 33125-36020 |
XZU302,307 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-37020 |
XZU302,307 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-35023 |
XZU30#,320,330,34# |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-48011 |
XZU302,307 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-36031 |
XZU302,307 |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
XZU30#,320,330,34# |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
XZU30#,320,330,34# |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
XZU302,307 |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-08421 | ||||
| 90119-10121 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 91611-B0610 | ||||
| 91611-B0812 | ||||
| 91612-61030 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
