XZU302-TPMLS3 (2000)

Toyota Dyna

Production Oct 2000 - Jun 2002
Engine S05C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0010- )S05C..XZU302..ST

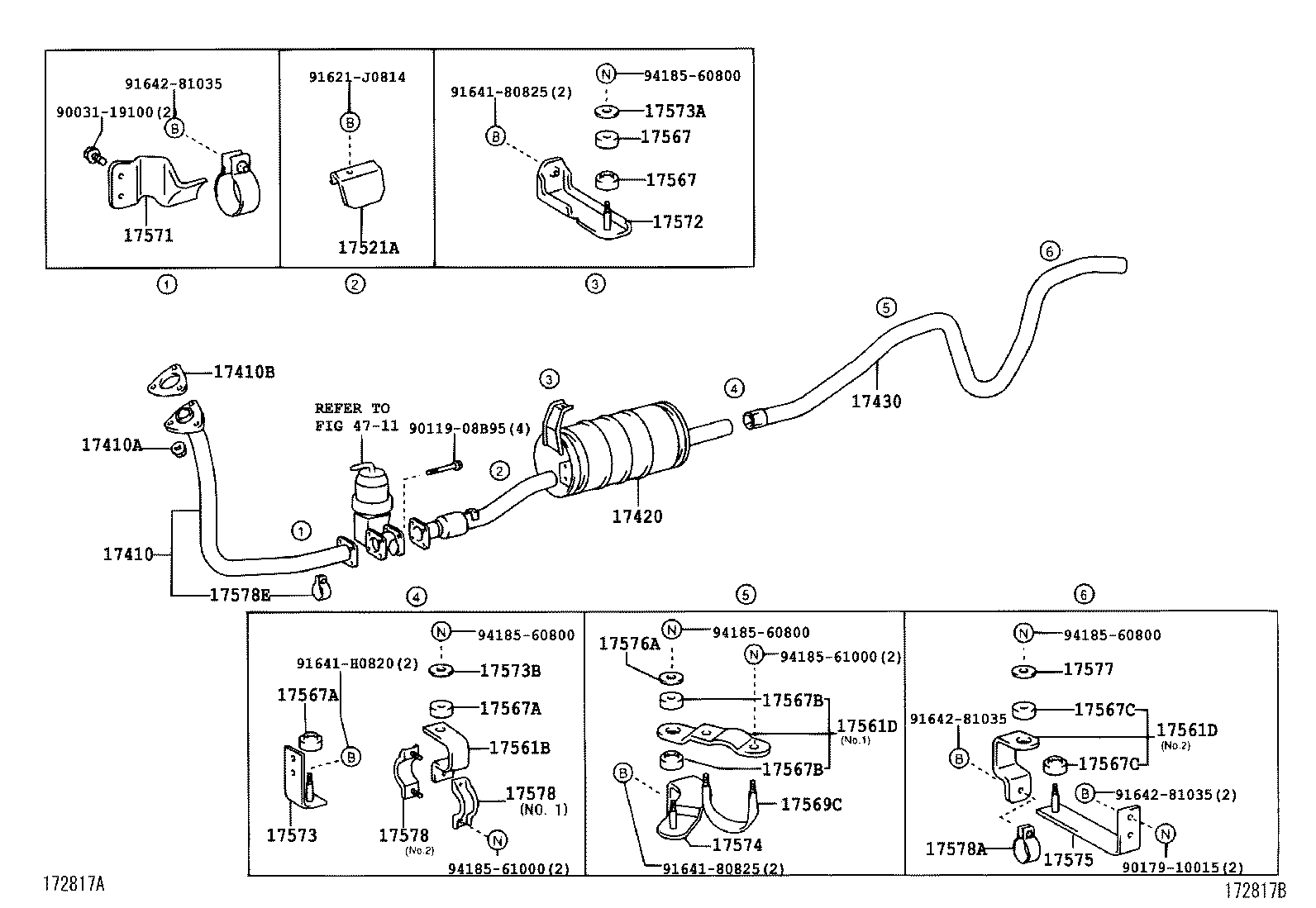

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17430 17521A 17561B 17561D 17561D 17567 17567 17567A 17567A 17567B 17567B 17567C 17567C 17569C 17571 17572 17573 17573A 17573B 17574 17575 17576A 17577 17578 17578 17578A 17578E 4711 9003119100 9011908B95 9017910015 91621J0814 9164180825 9164180825 91641H0820 9164281035 9164281035 9164281035 9418560800 9418560800 9418560800 9418560800 9418561000 9418561000
Part # Description Qty Price
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

S05C,15BFTE..XZU30#,320,330,34#

 3
17410B - GASKET, EXHAUST PIPE
90917-06087

S05C..XZU302,307,342

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-78141

S05C..XZU302,307

W/O(PNC 17521A)

 1
17403-78142

S05C..XZU302,307

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78020

S05C..XZU302..ST

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-78010

S05C..XZU302,307,342

NO.2

 1
17561D - SUPPORT, EXHAUST PIPE, NO.1
17561-78030

S05C,15BFTE..XZU30#,330,34#

NO.1

 1
17561-78080

S05C..XZU302,307,342

NO.2

 1
17561D - SUPPORT, EXHAUST PIPE, NO.1
17561-78030

S05C,15BFTE..XZU30#,330,34#

NO.1

 1
17561-78080

S05C..XZU302,307,342

NO.2

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

S05C..XZU302,307,342

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78010

S05C..XZU302,307,342

 2
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78020

S05C..XZU302,307,342

 1
17572-78021

S05C..XZU302,307,342

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78090

S05C..XZU302..ST

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
16721-78010

S05C..XZU302,307,342

 1
17578A - CLAMP, MUFFLER
17578-78020

S05C..XZU302,307,342

 1
Common parts
90031-19100
90119-08B95
90179-10015
91621-J0814
91641-80825
91641-H0820
91642-81035
94185-60800
94185-61000
Linked diagrams
4711
