WU95R-MDDTN3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

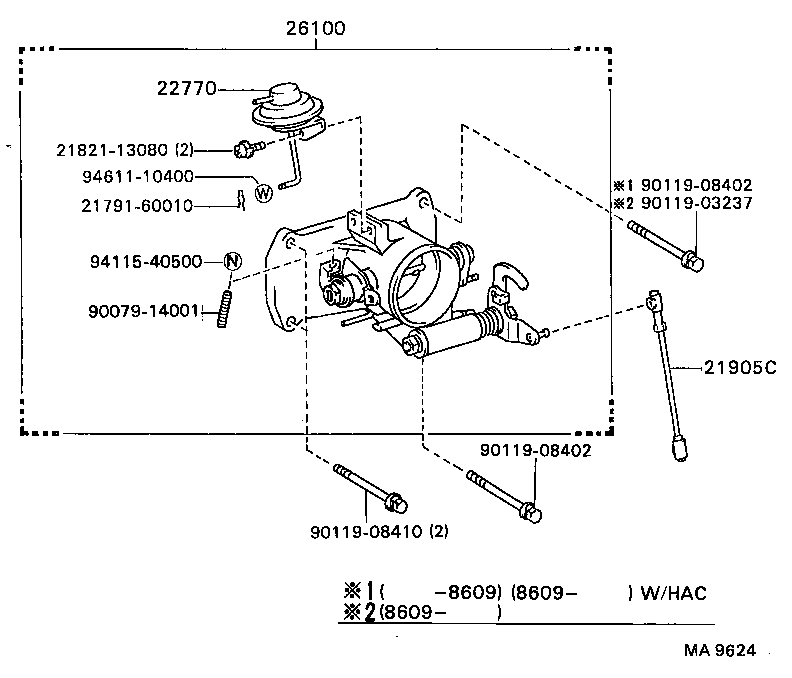

Click highlighted areas on diagram

diagram 2179160010 2182113080 21905C 22770 26100 9007914001 9011903237 9011908402 9011908402 9011908410 9411540500 9461110400
Part # Description Qty Price
21905C - ROD, ACCELERATOR CONNECTING(FOR VENTURI)
21905-78010

1W..WU9#

 1
22770 - ACTUATOR, IDEL UP
26133-78020

1W..WU9#

 1
26100 - VENTURI ASSY
26100-78021

1W..WU9#

 1
26100-78020

1W..WU9#

 1
Common parts
21791-60010
21821-13080
90079-14001
90119-03237
90119-08402
90119-08410
94115-40500
94611-10400
