WU95R-MDDTN3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

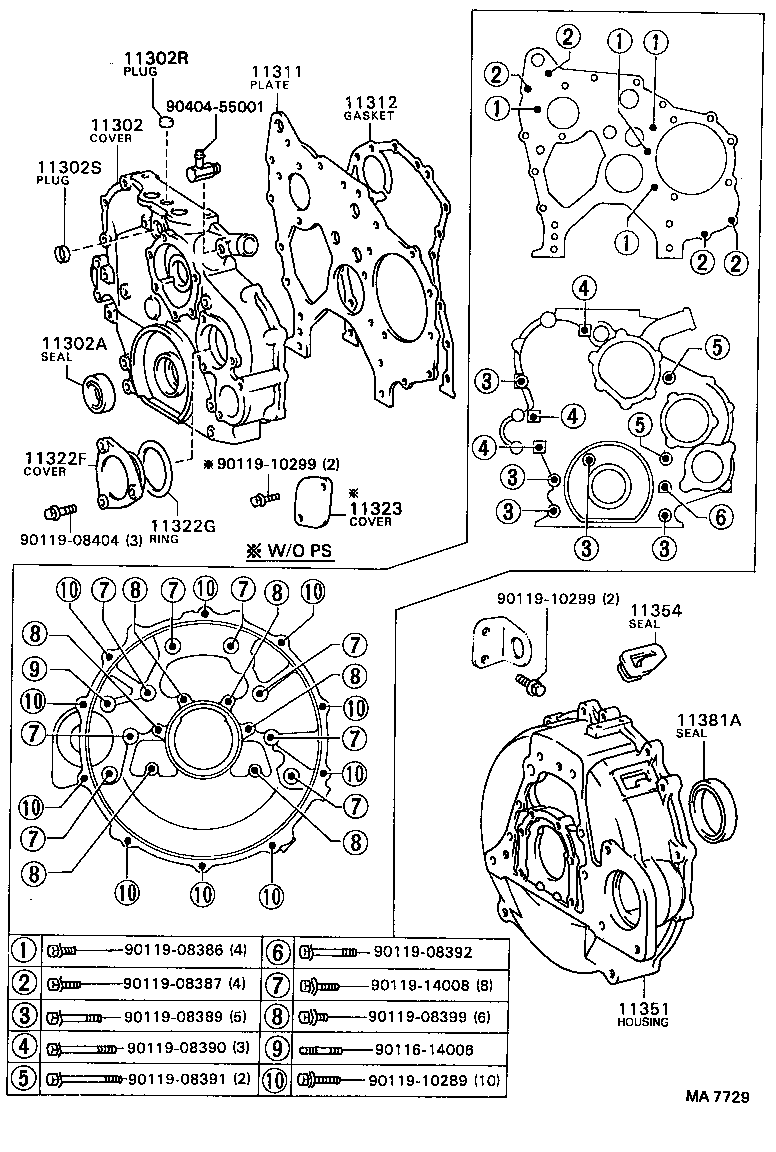

Click highlighted areas on diagram

diagram 11302 11302A 11302R 11302S 11311 11312 11322F 11322G 11323 11351 11354 11381A 9011614006 9011908386 9011908387 9011908389 9011908390 9011908391 9011908392 9011908399 9011908404 9011910289 9011910299 9011910299 9011914008 9040455001
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-78020

1W..WU9#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-58005

1W..WU9#

 1
11302R - PLUG, TIGHT, NO.1(FOR TIMING GEAR COVER)
90331-22002

1W..WU9#

OD=22

 1
11302S - PLUG, TIGHT, NO.2(FOR TIMING GEAR COVER)
90331-32002

1W..WU9#

OD=32

 1
11311 - PLATE, FRONT END
11311-78010

1W..WU9#

 1
11312 - GASKET, FRONT END PLATE
11312-78010

1W..WU9#

 1
11322F - COVER, TIMING GEAR, NO.2
11322-78010

1W..WU9#

 1
11322G - RING, O(FOR TIMING GEAR COVER)
90301-81003

1W..WU9#

 1
11323 - COVER, TIMING GEAR, NO.3
11323-78010

1W..WU9#..GEN,SA

W/O POWER STEERING

 1
11351 - HOUSING, FLYWHEEL
11351-78021

1W..WU9#

 1
11351-78020

1W..WU9#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-78010

1W..WU9#

 1
11381A - SEAL, ENGINE REAR OIL
90311-99002

1W..WU9#

 1
Common parts
90116-14006
90119-08386
90119-08387
90119-08389
90119-08390
90119-08391
90119-08392
90119-08399
90119-08404
90119-10289
90119-10299
90119-14008
90404-55001
