WU95L-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )WU9#

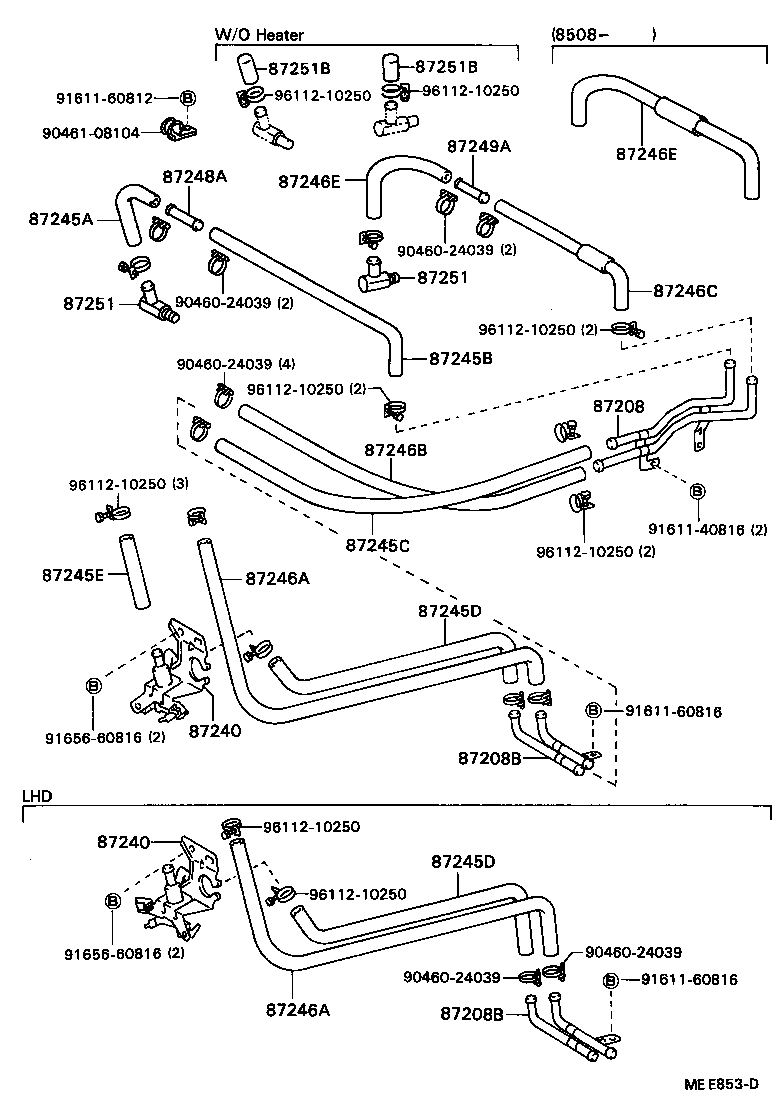

Click highlighted areas on diagram

diagram 87208 87208B 87208B 87240 87240 87245A 87245B 87245C 87245D 87245D 87245E 87246A 87246A 87246B 87246C 87246E 87246E 87248A 87249A 87251 87251 87251B 87251B 9046024039 9046024039 9046024039 9046024039 9046024039 9046108104 9161140816 9161160812 9161160816 9161160816 9165660816 9165660816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95402

RU75,85,WU9#..ARL,GEN

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95406

RU75,85,WU9#

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95406

RU75,85,WU9#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95406

RU75,85,WU9#,YU6#,7#,8#..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95406

RU75,85,WU9#,YU6#,7#,8#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95452

WU9#..ARL,GEN

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

WU9#..ARL,GEN

L=500

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-95465

RU75,85,WU9#..LHD

 1
87245D - HOSE, HEATER WATER, INLET D
99556-30500

RU75,85,WU9#

*H,L=400

 1
87245D - HOSE, HEATER WATER, INLET D
99556-30500

RU75,85,WU9#

*H,L=400

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

RU75,85,WU9#,YU6#,7#,8#

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30700

RU75,85,WU9#

*H,L=520

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30700

RU75,85,WU9#

*H,L=520

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-95464

RU75,85,WU9#..LHD

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-95452

WU9#..ARL,GEN

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30280

WU9#..ARL,GEN

*H,L=280

 1
87245-95472

WU9#..ARL,GEN

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30280

WU9#..ARL,GEN

*H,L=280

 1
87245-95472

WU9#..ARL,GEN

 1
87248A - PIPE, HEATER WATER INLET, A
87248-14090

WU9#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14090

WU9#..ARL,GEN

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

WU9#

 2
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30190

WU9#

 2
87251B - PLUG, HEATER WATER
90339-16007

WU9#..GEN

 2
87251B - PLUG, HEATER WATER
90339-16007

WU9#..GEN

 2
Common parts
90460-24039
90461-08104
91611-40816
91611-60812
91611-60816
91656-60816
96112-10250
