WU95L-MDDT3 (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1987
Engine
1W
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )WU9#..LHD

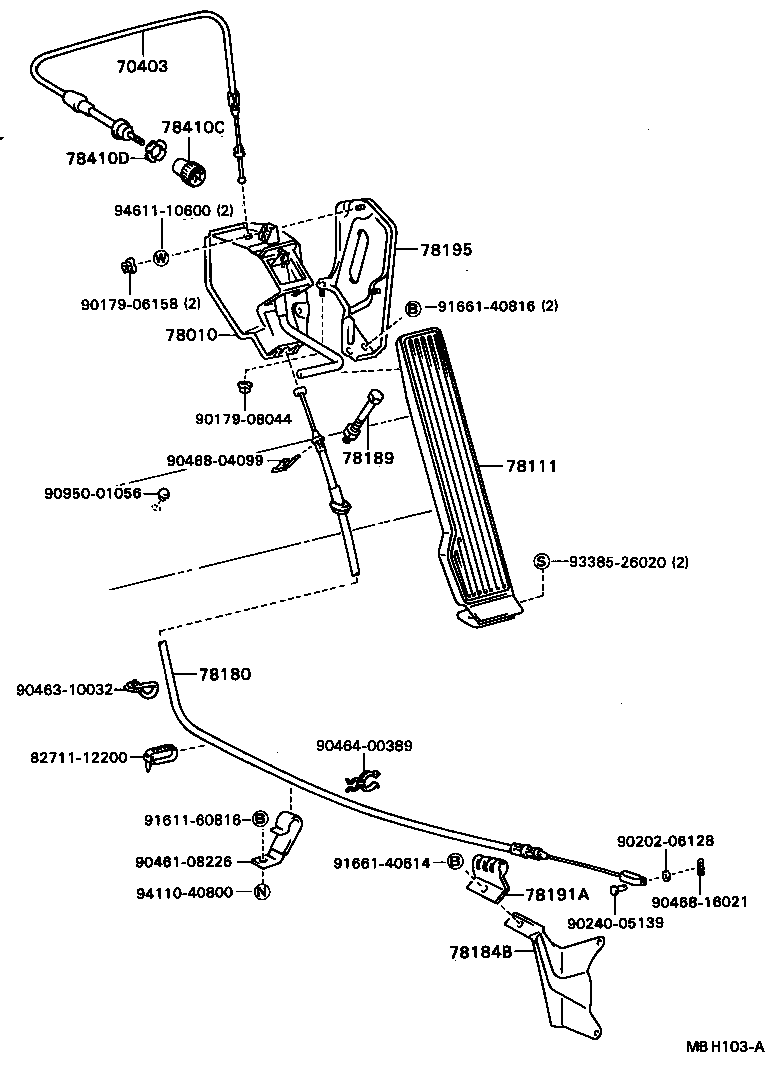

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78202-95401 |
RU75,85,WU9#,YU6#,70,80..LHD |
1 | ||
| 78202-95401 |
WU9#..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78010-95400 |
RU75,85,WU9#..LHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95470 |
WU9#..LHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-95401 |
WU9# |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-95403 |
RU75,85,WU9#..LHD |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 90461-10434 |
WU9# |
1 | ||
| 78195 - BRACKET, ACCELERATOR LINK | ||||
| 78195-95401 |
RU75,85,WU9#,YU6#,7#,8#..LHD |
1 | ||
| 78410C - KNOB, THROTTLE CABLE | ||||
| 78411-22010 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78413-95J00 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 78314-95010 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90179-06158 | ||||
| 90179-08044 | ||||
| 90202-06128 | ||||
| 90240-05139 | ||||
| 90461-08226 | ||||
| 90463-10032 | ||||
| 90464-00389 | ||||
| 90468-04099 | ||||
| 90468-16021 | ||||
| 90950-01056 | ||||
| 91611-60816 | ||||
| 91661-40614 | ||||
| 91661-40816 | ||||
| 93385-26020 | ||||
| 94110-40800 | ||||
| 94611-10600 | ||||
