WU95L-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

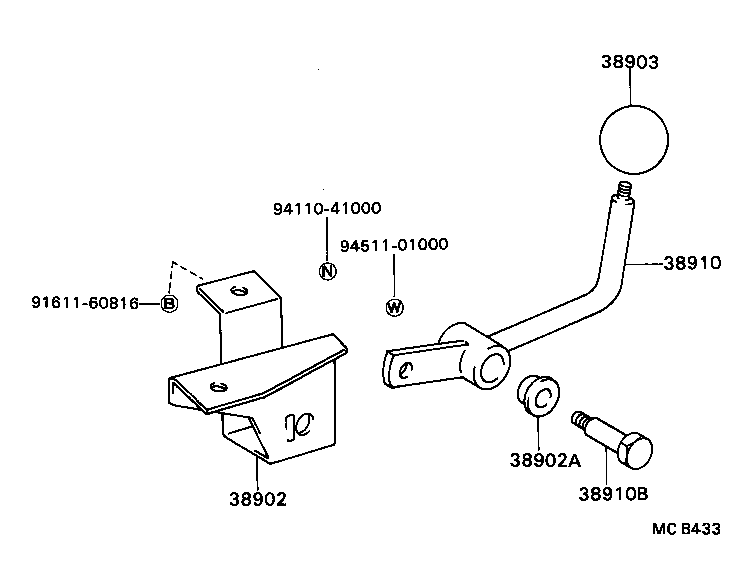

(8409- )WU9#..LHD

Click highlighted areas on diagram

diagram 38902 38902A 38903 38910 38910B 9161160816 9411041000 9451101000
Part # Description Qty Price
38902 - BRACKET SUB-ASSY, CONTROL SHAFT, UPPER
38902-93105

WU9#..LHD

 1
38902-93105

RU75,85,WU9#..LHD

 1
38902A - BUSH, CONTROL SHAFT UPPER BRACKET
90389-16001

WU9#..LHD

 2
90389-16001

RU75,85,WU9#..LHD

 2
38903 - KNOB SUB-ASSY, CONTROL
38908-93105

RU75,85,WU9#,YU6#,80..LHD..WT

 1
38908-93105

WU9#,YU60,62,8#..LHD..WT

 1
38908-96304

RU75,85,WU9#,YU6#,80..WT..(ARL,EUR,GEN)

 1
38910 - LEVER ASSY, DUMP
38901-93105

WU9#..LHD

 1
38901-93105

RU75,85,WU9#..LHD

 1
38910B - SHAFT, CONTROL LEVER
38974-93100

RU75,85,WU9#..LHD

 1
38974-93100

WU9#..LHD

 1
Common parts
91611-60816
94110-41000
94511-01000

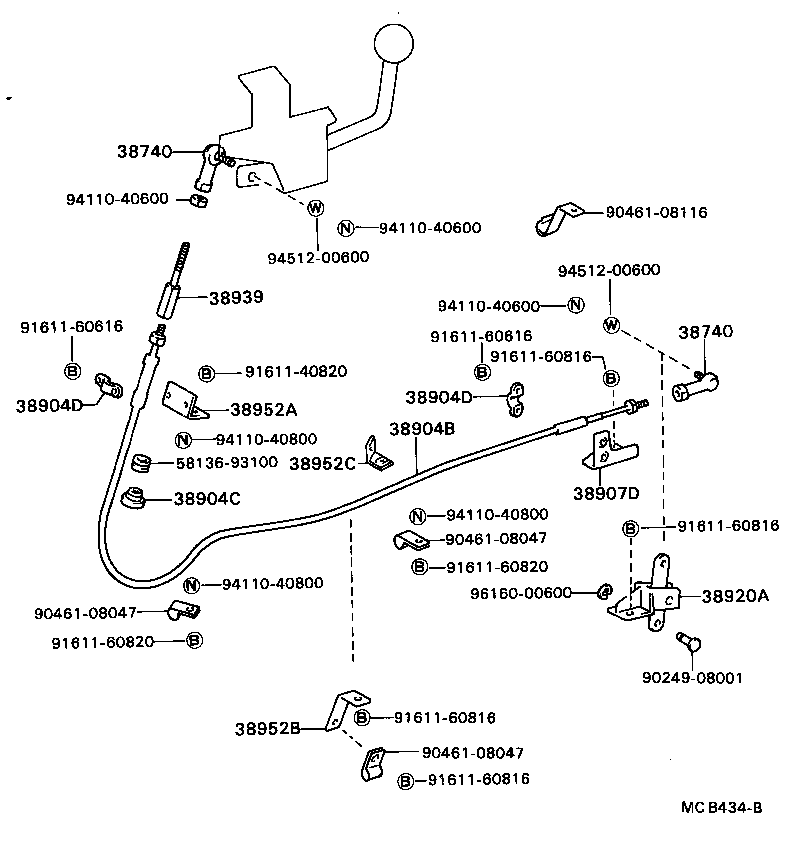

(8409- )WU9#..LHD

Click highlighted areas on diagram

diagram 38740 38740 38904B 38904C 38904D 38904D 38907D 38920A 38939 38952A 38952B 38952C 5813693100 9024908001 9046108047 9046108047 9046108047 9046108116 9161140820 9161160616 9161160616 9161160816 9161160816 9161160816 9161160816 9161160820 9161160820 9411040600 9411040600 9411040600 9411040800 9411040800 9411040800 9451200600 9451200600 9616000600
Part # Description Qty Price
38740 - END ASSY, CONNECTING ROD
33740-96301

RU75,85,WU9#,YU6#,80..WT..(ARL,EUR,GEN)

 2
33740-96301

WU9#,YU6#,8#..WT..(ARL,EUR,GEN)

 2
38740 - END ASSY, CONNECTING ROD
33740-96301

RU75,85,WU9#,YU6#,80..WT..(ARL,EUR,GEN)

 2
33740-96301

WU9#,YU6#,8#..WT..(ARL,EUR,GEN)

 2
38904B - CABLE ASSY, PUSH PULL
38930-93100

RU75,85,WU9#..LHD

 1
38930-93112

WU9#..LHD

 1
38904C - GROMMET, PUSH PULL CABLE
90480-22013

WU9#,YU6#,8#..WT..(ARL,EUR,GEN)

 1
90480-22013

RU75,85,WU9#,YU6#,80..WT..(ARL,EUR,GEN)

 1
38904D - CLAMP, CABLE PUSH PULL
38982-96302

WU9#,YU6#,8#..WT..(ARL,EUR,GEN)

 2
38982-96302

RU75,85,WU9#,YU6#,80..WT..(ARL,EUR,GEN)

 2
38904D - CLAMP, CABLE PUSH PULL
38982-96302

WU9#,YU6#,8#..WT..(ARL,EUR,GEN)

 2
38982-96302

RU75,85,WU9#,YU6#,80..WT..(ARL,EUR,GEN)

 2
38907D - STAY SUB-ASSY, POWER TAKE-OFF CONTROL
38907-93104

RU75,85,WU9#..LHD

 1
38907-93110

WU9#..LHD

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-93101

RU75,85,WU9#..LHD

 1
38920-93101

WU9#..LHD

 1
38939 - ROD, CABLE CONNECTING
38953-93100

RU75,85,WU9#..LHD

 1
38953-93100

WU9#..LHD

 1
38952A - BRACKET, CONTROL CABLE CLAMP, NO.1
38961-93100

RU75,85,WU9#..LHD

 1
38961-93100

WU9#..LHD

 1
38952B - BRACKET, CONTROL CABLE CLAMP, NO.2
38954-93106

WU9#..LHD

 1
38954-93104

RU75,85,WU9#..LHD

 1
Common parts
58136-93100
90249-08001
90461-08047
90461-08116
91611-40820
91611-60616
91611-60816
91611-60820
94110-40600
94110-40800
94512-00600
96160-00600
