WU95L-MDDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

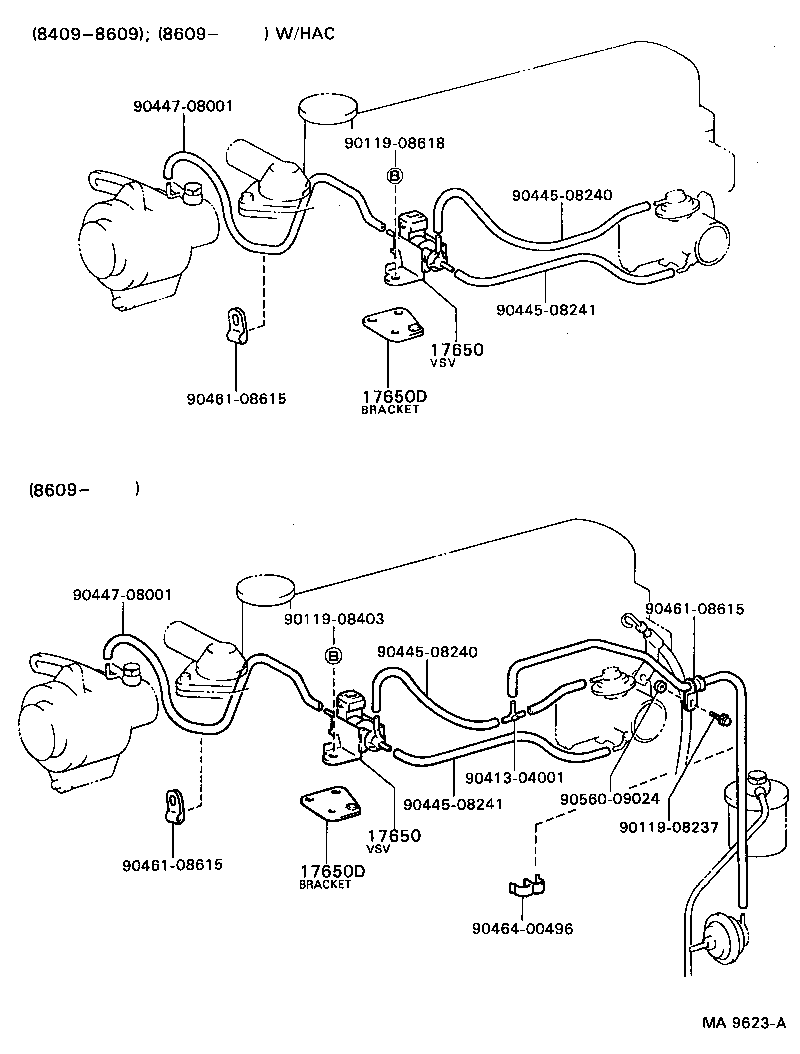

Click highlighted areas on diagram

diagram 9541110030 9541110130 9541110160 9541119995
Part # Description Qty Price
Common parts
95411-10030
95411-10130
95411-10160
95411-19995

(8409- )1W

Click highlighted areas on diagram

diagram 17650 17650 17650D 17650D 9011908237 9011908403 9011908618 9041304001 9044508240 9044508240 9044508241 9044508241 9044708001 9044708001 9046108615 9046108615 9046108615 9046400496 9056009024
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
89570-89102

1W..WU9#

 1
89570-89103

1W..WU9#

 1
17650 - VALVE ASSY, VACUUM SWITCHING
89570-89102

1W..WU9#

 1
89570-89103

1W..WU9#

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-89101

1W..WU9#

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
89579-89101

1W..WU9#

 1
Common parts
90119-08237
90119-08403
90119-08618
90413-04001
90445-08240
90445-08241
90447-08001
90461-08615
90464-00496
90560-09024
