WU95L-MDDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

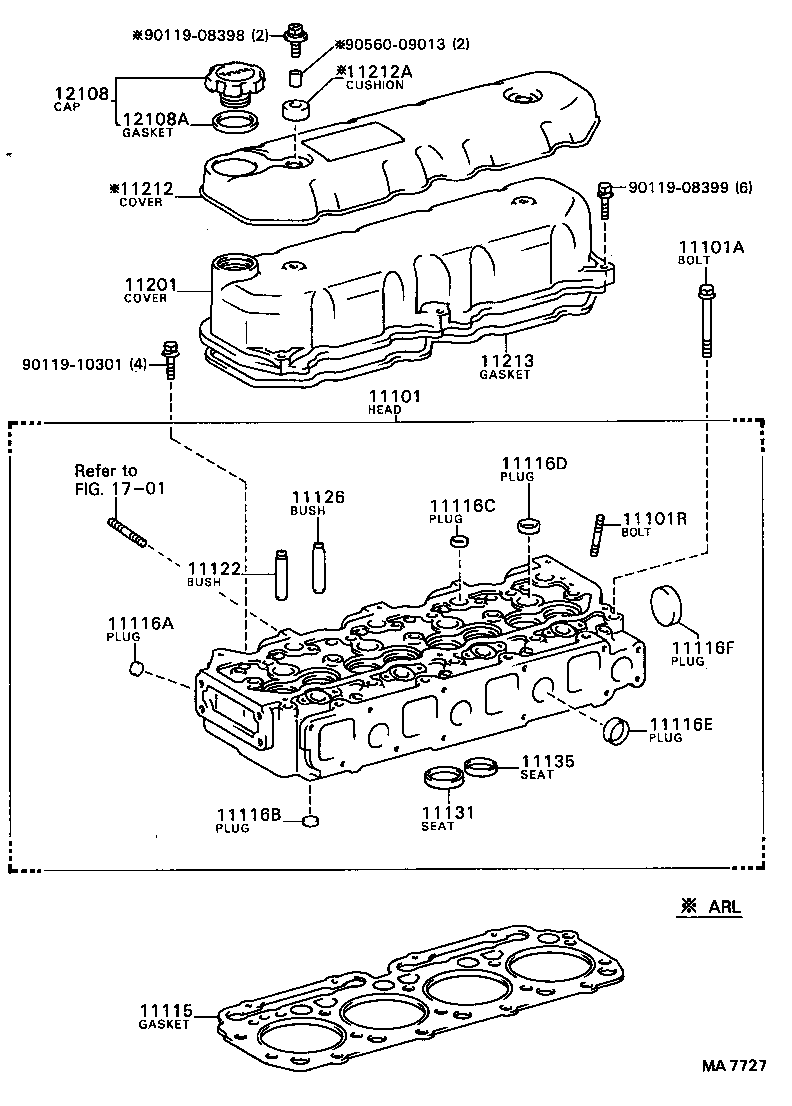

Click highlighted areas on diagram

diagram 11101 11101A 11101R 11115 11116A 11116B 11116C 11116D 11116E 11116F 11122 11126 11131 11135 11201 11212 11212A 11213 12108 12108A 1701 9011908398 9011908399 9011910301 9056009013
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11110-78020

1W..WU9#..GEN,SA

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-12073

1W..WU9#

 13
11101R - BOLT, STUD(FOR FUEL PIPE)
90116-08173

1W..WU9#

 8
11115 - GASKET, CYLINDER HEAD
11115-78010

1W..WU9#

 1
11115-78011

1W..WU9#

 1
11116A - PLUG, TIGHT, NO.1
90331-14005

1W..WU9#

OD=14

 4
11116B - PLUG, TIGHT, NO.2
90331-22001

1W..WU9#

OD=22

 4
11116C - PLUG, TIGHT, NO.3
90331-24001

1W..WU9#

OD=24

 4
11116D - PLUG, TIGHT, NO.4
90331-26001

1W..WU9#

OD=26

 4
11116E - PLUG, TIGHT, NO.5
90331-30001

1W..WU9#

OD=30

 4
11116F - PLUG, TIGHT, NO.6
90331-50002

1W..WU9#

OD=50

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-78010

1W..WU9#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-78010

1W..WU9#

STD

 4
11131 - SEAT, INTAKE VALVE
11131-78010

1W..WU9#

STD

 4
11135 - SEAT, EXHAUST VALVE
11135-78010

1W..WU9#

STD

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-78010

1W..WU9#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-78010

1W..WU9#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

1W..WU9#

 1
12180-70010

1W..WU9#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1W..WU9#

 1
Common parts
90119-08398
90119-08399
90119-10301
90560-09013
Linked diagrams
1701
