WU90R-MDDTQ3 (1984)
Toyota Dyna

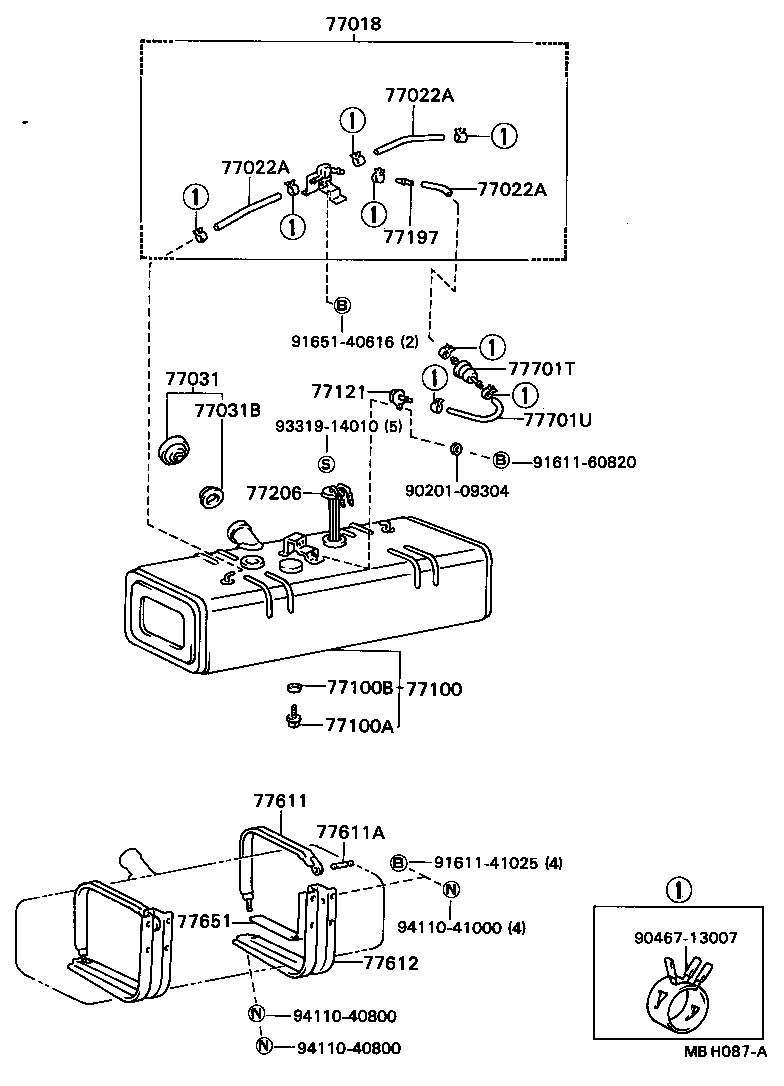

(8409- )WU90..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-55010 |
WU90..ARL |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08010 |
WU90..ARL *H,L=70,ID=7.6 |
1 | ||
| 95332-08030 |
YU60..T1;WU90..ARL *H,L=280,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08010 |
WU90..ARL *H,L=70,ID=7.6 |
1 | ||
| 95332-08030 |
YU60..T1;WU90..ARL *H,L=280,ID=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08010 |
WU90..ARL *H,L=70,ID=7.6 |
1 | ||
| 95332-08030 |
YU60..T1;WU90..ARL *H,L=280,ID=7.6 |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-55080 |
WU9# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-27010 |
WU9# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36660 |
WU90..ARL |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77258-36010 |
WU90..ARL |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 77198-35010 |
WU90..ARL |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-36191 |
RU75,85,WU9#,YU8# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36150 |
YU61,63;WU90,YU60,62..ARL |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
RU75,85,WU9#,YU6#,8#..L1,L2,T1,T3 |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77633-36111 |
YU61,63;WU90,YU60,62..ARL |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36100 |
RU75,85,WU9#,YU6#,8#..L1,L2,T3 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10012 |
WU90..ARL |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-08030 |
WU90..ARL *H,L=240,ID=7.6 |
1 | ||
| Common parts | ||||
| 90201-09304 | ||||
| 90467-13007 | ||||
| 91611-41025 | ||||
| 91611-60820 | ||||
| 91651-40616 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||

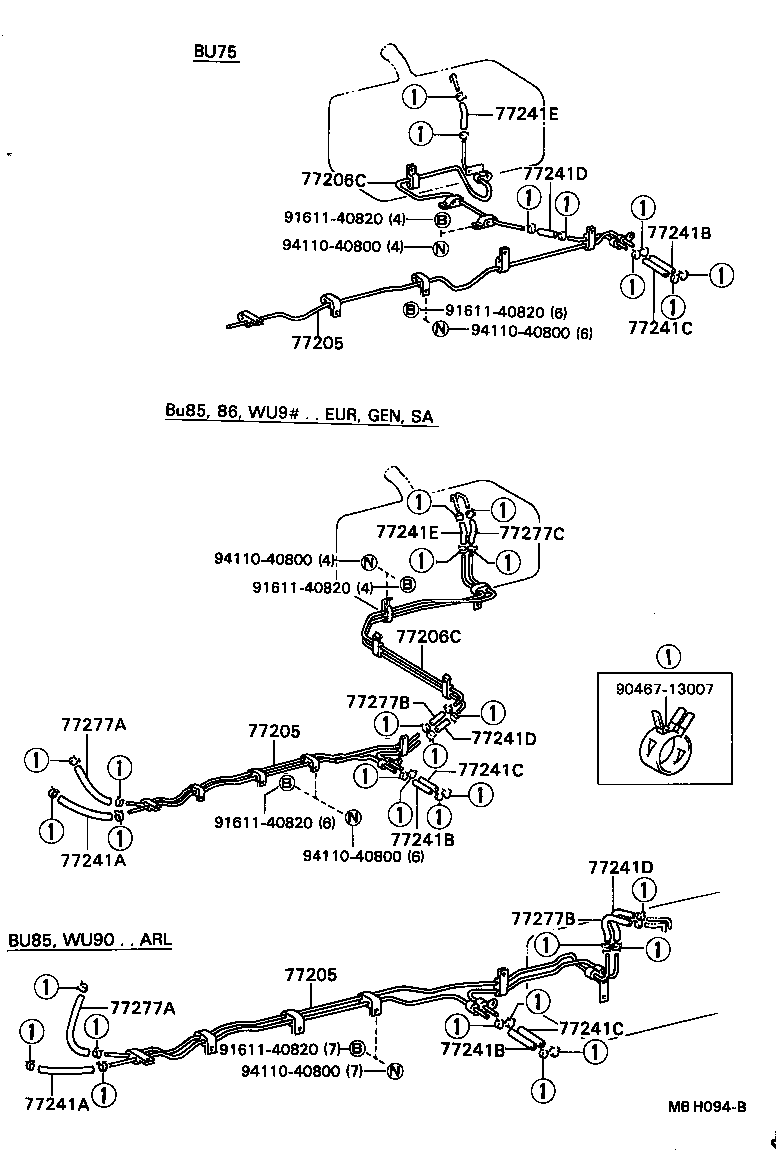

(8409-8410)WU9# ; (8410- )WU9#..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36210 |
WU90..ARL |
1 | ||
| 77205-36211 |
WU90..ARL |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36210 |
WU90..ARL |
1 | ||
| 77205-36211 |
WU90..ARL |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36210 |
WU90..ARL |
1 | ||
| 77205-36211 |
WU90..ARL |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
WU9# *H,L=160,ID=7.6 |
1 | ||
| 95332-08020 |
WU9#..ARL,GEN *H,L=140,ID=7.6 |
1 | ||
| 77259-36030 |
WU9#..ARL,GEN |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
WU9# *H,L=160,ID=7.6 |
1 | ||
| 95332-08020 |
WU9#..ARL,GEN *H,L=140,ID=7.6 |
1 | ||
| 77259-36030 |
WU9#..ARL,GEN |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
WU9# *H,L=160,ID=7.6 |
1 | ||
| 95332-08020 |
WU9#..ARL,GEN *H,L=140,ID=7.6 |
1 | ||
| 77259-36030 |
WU9#..ARL,GEN |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 77259-36040 |
WU9#..ARL,GEN |
1 | ||
| 95332-08020 |
WU9#..ARL,GEN *H,L=140,ID=7.6 |
1 | ||
| 95332-08020 |
WU9# *H,L=160,ID=7.6 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 77259-36040 |
WU9#..ARL,GEN |
1 | ||
| 95332-08020 |
WU9#..ARL,GEN *H,L=140,ID=7.6 |
1 | ||
| 95332-08020 |
WU9# *H,L=160,ID=7.6 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 77259-36040 |
WU9#..ARL,GEN |
1 | ||
| 95332-08020 |
WU9#..ARL,GEN *H,L=140,ID=7.6 |
1 | ||
| 95332-08020 |
WU9# *H,L=160,ID=7.6 |
1 | ||
| 77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
WU90..ARL *H,L=280,ID=7.6 |
1 | ||
| 77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
WU90..ARL *H,L=280,ID=7.6 |
1 | ||
| 77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
WU90..ARL *H,L=280,ID=7.6 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-08020 |
WU9#..ARL,GEN *H,L=180,ID=7.6 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-08020 |
WU9#..ARL,GEN *H,L=180,ID=7.6 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-08030 |
WU90..ARL *H,L=280,ID=7.6 |
1 | ||
| 95332-08040 |
WU9#..ARL,GEN *H,L=320,ID=7.6 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-08030 |
WU90..ARL *H,L=280,ID=7.6 |
1 | ||
| 95332-08040 |
WU9#..ARL,GEN *H,L=320,ID=7.6 |
1 | ||
| Common parts | ||||
| 90467-13007 | ||||
| 91611-40820 | ||||
| 94110-40800 | ||||
