WU90R-MDDTQ3 (1984)
Toyota Dyna
(8409- )RU75,85,WU9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-36320 |
WU9#..RHD |
1 | ||
| Common parts | ||||
| 90101-14015 | ||||
| 90101-14477 | ||||
| 90119-10238 | ||||
| 90119-10239 | ||||
| 90170-12161 | ||||
| 90170-14006 | ||||
| 90201-14005 | ||||
| 90204-27020 | ||||
(8409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-36020 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 04445-36020 |
RU75,85,WU9#,YU60,80..(T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 04445-36040 |
RU75,85,WU9#,YU60,62,8#..(T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-36020 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 04455-36020 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-36014 |
WU90..RHD..(ARL,GEN) |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-36050 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 44015-36050 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 44016 - CASE SUB-ASSY, WORM BEARING | ||||
| 44016-36030 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 44016-36030 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90029-21002 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 90029-21002 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 44101C - RING, HOLE SNAP(FOR STEERING WORM OIL SEAL) | ||||
| 90029-52002 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 90029-52002 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20005 |
RU75,85,WU9#..ARL,GEN ID=74 |
1 | ||
| 96711-19009 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 90029-20006 |
RU75,85,WU9#..ARL,GEN ID=79.4 |
1 | ||
| 96711-19009 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 90029-20005 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=74 |
1 | ||
| 90029-20006 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=79.4 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20005 |
RU75,85,WU9#..ARL,GEN ID=74 |
1 | ||
| 96711-19009 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 90029-20006 |
RU75,85,WU9#..ARL,GEN ID=79.4 |
1 | ||
| 96711-19009 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 90029-20005 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=74 |
1 | ||
| 90029-20006 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=79.4 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20005 |
RU75,85,WU9#..ARL,GEN ID=74 |
1 | ||
| 96711-19009 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 90029-20006 |
RU75,85,WU9#..ARL,GEN ID=79.4 |
1 | ||
| 96711-19009 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 90029-20005 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=74 |
1 | ||
| 90029-20006 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=79.4 |
1 | ||
| 44101G - SEAL, DUST(FOR STEERING WORM) | ||||
| 90029-20700 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 90029-20700 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20007 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=39.4,ID=39.4 |
1 | ||
| 90029-20009 |
RU75,85,WU9#..ARL,GEN ID=41,ID=42,INNER |
1 | ||
| 90029-20007 |
RU75,85,WU9#..ARL,GEN ID=39.4,ID=39.4 |
1 | ||
| 90029-20009 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=41,ID=42,INNER |
1 | ||
| 96711-35042 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=42,OUTER |
1 | ||
| 96711-35042 |
RU75,85,WU9#..ARL,GEN ID=42,OUTER |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20007 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=39.4,ID=39.4 |
1 | ||
| 90029-20009 |
RU75,85,WU9#..ARL,GEN ID=41,ID=42,INNER |
1 | ||
| 90029-20007 |
RU75,85,WU9#..ARL,GEN ID=39.4,ID=39.4 |
1 | ||
| 90029-20009 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=41,ID=42,INNER |
1 | ||
| 96711-35042 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=42,OUTER |
1 | ||
| 96711-35042 |
RU75,85,WU9#..ARL,GEN ID=42,OUTER |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20007 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=39.4,ID=39.4 |
1 | ||
| 90029-20009 |
RU75,85,WU9#..ARL,GEN ID=41,ID=42,INNER |
1 | ||
| 90029-20007 |
RU75,85,WU9#..ARL,GEN ID=39.4,ID=39.4 |
1 | ||
| 90029-20009 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=41,ID=42,INNER |
1 | ||
| 96711-35042 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=42,OUTER |
1 | ||
| 96711-35042 |
RU75,85,WU9#..ARL,GEN ID=42,OUTER |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-56602 |
RU75,85,WU9#..ARL,GEN ID=42 |
1 | ||
| 90029-56602 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=42 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-56602 |
RU75,85,WU9#..ARL,GEN ID=42 |
1 | ||
| 90029-56602 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=42 |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90116-14004 |
RU75,85,WU9#..ARL,GEN |
2 | ||
| 44107Q - HOUSING SUB-ASSY, STEERING W/NAME PLATE | ||||
| 44107-36120 |
WU90..RHD..(ARL,GEN) |
1 | ||
| 44108C - COVER SUB-ASSY, SECTOR | ||||
| 44108-36050 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 44108-36050 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20009 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 90029-20008 |
RU75,85,WU9#..ARL,GEN ID=84.4 |
1 | ||
| 90029-20009 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 90029-20008 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=84.4 |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20009 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 90029-20008 |
RU75,85,WU9#..ARL,GEN ID=84.4 |
1 | ||
| 90029-20009 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 90029-20008 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) ID=84.4 |
1 | ||
| 44108E - RING(FOR SECTOR COVER) | ||||
| 90029-56602 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 90029-56602 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-36120 |
WU90..RHD..(ARL,GEN) |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-36120 |
WU90..RHD..(ARL,GEN) |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14477 |
RU75,85,WU9#..ARL,GEN |
2 | ||
| 44142 - NUT, LOCK | ||||
| 94115-51400 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 94115-51400 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 44163A - RING, POWER PISTON BACK UP | ||||
| 44163-36030 |
RU75,85,WU9#..ARL,GEN |
2 | ||
| 44163-36030 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
2 | ||
| 44164A - RING, POWER PISTON | ||||
| 44164-36030 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
2 | ||
| 44164-36030 |
RU75,85,WU9#..ARL,GEN |
2 | ||
| 44165 - RING, SEAL, NO.1 | ||||
| 44165-36030 |
RU75,85,WU9#..ARL,GEN |
2 | ||
| 44165-36030 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
2 | ||
| 44166 - RING, SEAL, NO.2 | ||||
| 44166-36030 |
RU75,85,WU9#..ARL,GEN |
2 | ||
| 44166-36030 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
2 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 44167-37010 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-36011 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 44168-36011 |
RU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-36300 |
WU90..RHD..(ARL,GEN) |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-30171 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-30040 |
RU75,85,WU9#..ARL,GEN |
1 | ||
| Common parts | ||||
| 90101-10435 | ||||
| 90170-14006 | ||||
| 90201-14005 | ||||
| 91611-61025 | ||||
| 94512-01000 | ||||

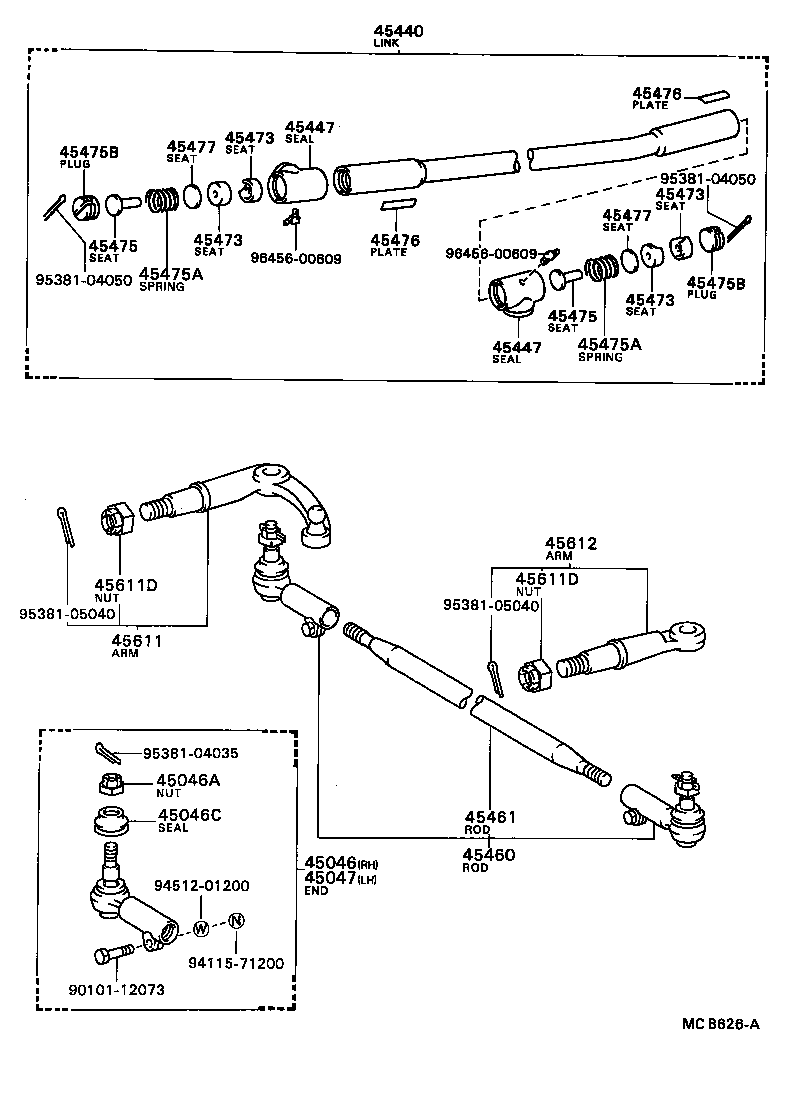

(8409- )WU9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39145 |
WU9# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18001 |
WU9# |
2 | ||
| 45046C - SEAL, DUST(FOR TIE ROD END) | ||||
| 45479-36040 |
WU9# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39105 |
WU9# |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45441-39265 |
WU90..RHD..(ARL,GEN) W/POWER STEERING |
1 | ||
| 45441-39275 |
WU9#..RHD |
1 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-36050 |
WU9#..RHD |
2 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-36050 |
WU9#..RHD |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39185 |
WU9# |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-36050 |
WU9# |
1 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-56010 |
WU9# |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-56010 |
WU9# |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-56010 |
WU9# |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-56010 |
WU9# |
4 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-55030 |
WU9# |
2 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-55030 |
WU9# |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-65559 |
WU9# |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-65559 |
WU9# |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-33001 |
WU9# |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-33001 |
WU9# |
2 | ||
| 45476 - PLATE, TURNING STOPPER | ||||
| 45476-56010 |
WU9# |
2 | ||
| 45476 - PLATE, TURNING STOPPER | ||||
| 45476-56010 |
WU9# |
2 | ||
| 45477 - PLATE, STOPPER | ||||
| 45477-56010 |
WU9# |
2 | ||
| 45477 - PLATE, STOPPER | ||||
| 45477-56010 |
WU9# |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45601-39095 |
WU9#..RHD |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90171-27001 |
WU9# |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90171-27001 |
WU9# |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-39065 |
WU9#..RHD |
1 | ||
| Common parts | ||||
| 90101-12073 | ||||
| 94115-71200 | ||||
| 94512-01200 | ||||
| 95381-04035 | ||||
| 95381-04050 | ||||
| 95381-05040 | ||||
| 96456-00609 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
