WU90R-MDDTN3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )YU60,62..T3 ; (8409- )RU75,85,WU9#,YU61,63,8#..GEN,SA

Click highlighted areas on diagram

diagram 77018 77018 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77031 77031B 77100 77100A 77100B 77121 77121 77197 77206 77275 77611 77611A 77612 77651 77701T 8271189104 9017908146 9046110592 9046713007 9161141025 9161160820 9161160820 9161160820 9165140616 9165140616 9331914010 9411040800 9411040800 9411041000 9613230600
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36130

RU75,85,WU9#,YU6#,8#..(L1,L2,T3)..(EUR,GEN,SA)

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36130

RU75,85,WU9#,YU6#,8#..(L1,L2,T3)..(EUR,GEN,SA)

 1
77031 - CAP ASSY, FUEL TANK
77310-55080

WU9#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-27010

WU9#

 1
77100 - TANK ASSY, FUEL
77001-36710

YU60..WT;RU75,85,WU9#,YU80..GEN,SA

 1
77001-36710

YU60,62..WT..(ARL,GEN);RU75,85,WU9#,YU8#..GEN,SA

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

RU75,85,WU9#,YU6#,7#,8#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

RU75,85,WU9#,YU6#,7#,8#

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

YU60,62;RU75,85,WU9#,YU61,63,7#,8#..GEN,SA

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

YU60,62;RU75,85,WU9#,YU61,63,7#,8#..GEN,SA

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77017-36191

RU75,85,WU9#,YU8#

 1
77611 - BAND, FUEL TANK
77601-36140

RU75,85,WU9#,YU60,62,8#..T3..(EUR,GEN,SA)

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

RU75,85,WU9#,YU6#,8#..L1,L2,T1,T3

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77633-36090

RU75,85,WU9#,YU60,62,8#..T3..(EUR,GEN,SA)

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36100

RU75,85,WU9#,YU6#,8#..L1,L2,T3

 2
Common parts
82711-89104
90179-08146
90461-10592
90467-13007
91611-41025
91611-60820
91651-40616
93319-14010
94110-40800
94110-41000
96132-30600

(8409-8410)WU9# ; (8410- )WU9#..ARL,GEN

Click highlighted areas on diagram

diagram 77205 77205 77205 77206C 77206C 77241A 77241A 77241B 77241B 77241B 77241C 77241C 77241C 77241D 77241D 77241D 77241E 77241E 77277A 77277A 77277B 77277B 77277C 9046713007 9161140820 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77206-36250

WU9#..GEN,SA

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77206-36250

WU9#..GEN,SA

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77206-36250

WU9#..GEN,SA

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-36220

WU90..GEN,SA

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-36220

WU90..GEN,SA

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08030

WU9#..SA

*H,L=260,ID=7.6

 1
95332-06060

WU9#..SA

*H,L=420

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08030

WU9#..SA

*H,L=260,ID=7.6

 1
95332-06060

WU9#..SA

*H,L=420

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

WU9#

*H,L=160,ID=7.6

 1
95332-08030

WU9#..SA

*H,L=280,ID=7.6

 1
95332-08100

WU9#..SA

*H,L=900,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

WU9#

*H,L=160,ID=7.6

 1
95332-08030

WU9#..SA

*H,L=280,ID=7.6

 1
95332-08100

WU9#..SA

*H,L=900,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

WU9#

*H,L=160,ID=7.6

 1
95332-08030

WU9#..SA

*H,L=280,ID=7.6

 1
95332-08100

WU9#..SA

*H,L=900,ID=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08020

WU9#

*H,L=160,ID=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08020

WU9#

*H,L=160,ID=7.6

 1
77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1)
95332-08020

WU9#

*H,L=160,ID=7.6

 1
77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)
95332-08020

WU90..GEN,SA

*H,L=180,ID=7.6

 1
77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)
95332-08020

WU90..GEN,SA

*H,L=180,ID=7.6

 1
77241D - HOSE, FUEL, NO.4 (FOR MAIN TUBE, NO.1)
95332-08020

WU90..GEN,SA

*H,L=180,ID=7.6

 1
77241E - HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1)
95332-08030

WU9#..GEN,SA

*H,L=280,ID=7.6

 1
77241E - HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1)
95332-08030

WU9#..GEN,SA

*H,L=280,ID=7.6

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-08060

WU9#..SA

*H,L=600,ID=7.6

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-08060

WU9#..SA

*H,L=600,ID=7.6

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08020

WU90..GEN,SA

*H,L=180,ID=7.6

 1
95332-08030

WU9#..SA

*H,L=300,ID=7.6

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08020

WU90..GEN,SA

*H,L=180,ID=7.6

 1
95332-08030

WU9#..SA

*H,L=300,ID=7.6

 1
77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1)
95332-08030

WU9#..GEN,SA

*H,L=280,ID=7.6

 1
Common parts
90467-13007
91611-40820
94110-40800

(8410- )WU9#..SA

Click highlighted areas on diagram

diagram 77241A 77241A 77241A 77241B 77241B 77277A 77277B 9046108422 9046110061 9046110534 9046400234 9046400332 9046713007 9048001004 9161160820 9161160820 9161160820 9411040800 9411040800 9411040800 9613230600
Part # Description Qty Price

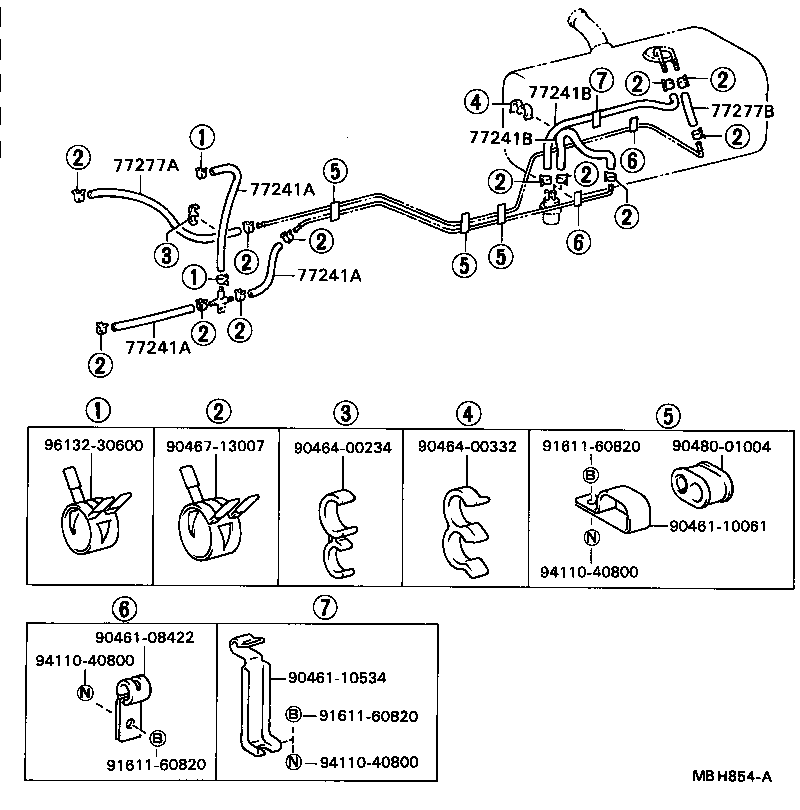

77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08030

WU9#..SA

*H,L=260,ID=7.6

 1
95332-06060

WU9#..SA

*H,L=420

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08030

WU9#..SA

*H,L=260,ID=7.6

 1
95332-06060

WU9#..SA

*H,L=420

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08030

WU9#..SA

*H,L=260,ID=7.6

 1
95332-06060

WU9#..SA

*H,L=420

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

WU9#

*H,L=160,ID=7.6

 1
95332-08030

WU9#..SA

*H,L=280,ID=7.6

 1
95332-08100

WU9#..SA

*H,L=900,ID=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08020

WU9#

*H,L=160,ID=7.6

 1
95332-08030

WU9#..SA

*H,L=280,ID=7.6

 1
95332-08100

WU9#..SA

*H,L=900,ID=7.6

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-08060

WU9#..SA

*H,L=600,ID=7.6

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08020

WU90..GEN,SA

*H,L=180,ID=7.6

 1
95332-08030

WU9#..SA

*H,L=300,ID=7.6

 1
Common parts
90461-08422
90461-10061
90461-10534
90464-00234
90464-00332
90467-13007
90480-01004
91611-60820
94110-40800
96132-30600
