WU90R-MDDTN3 (1984)
Toyota Dyna

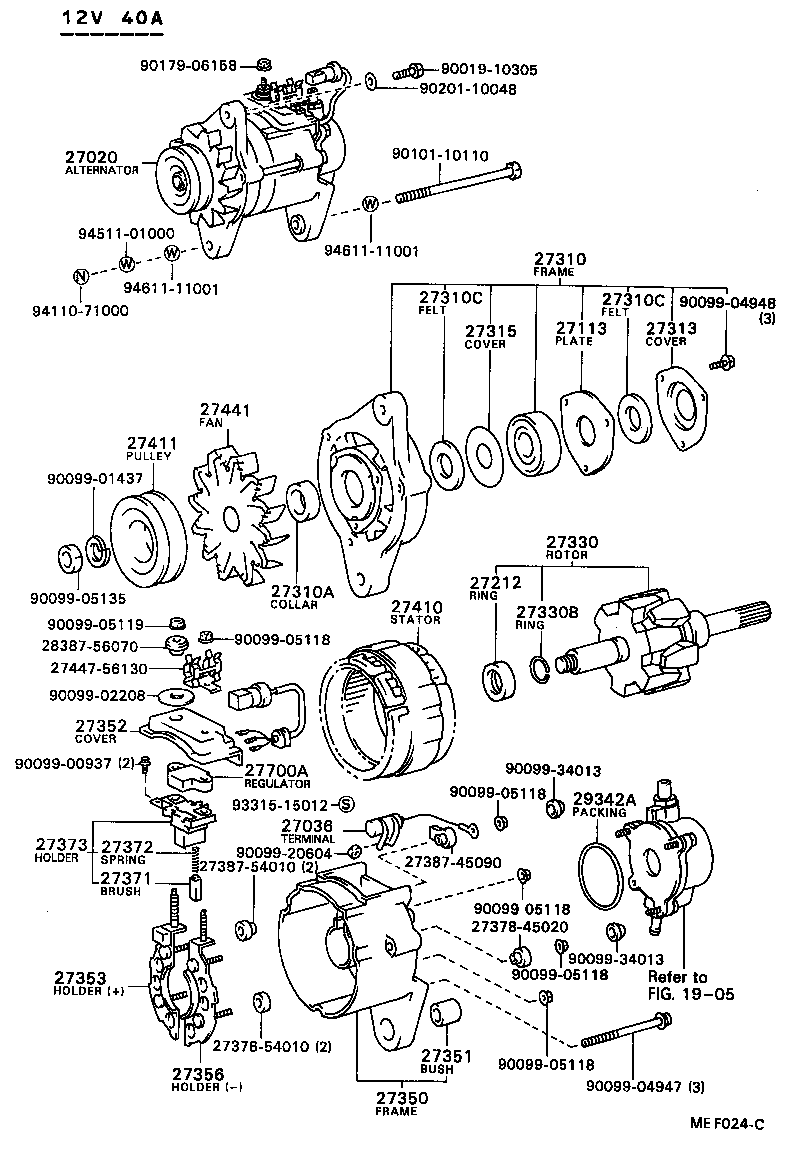

(8409- )1W
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27040-78030 |
1W..WU9# 12V 40A,12V 40A,W/VACUUM PUMP |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 90099-52066 |
1W..WU9# 12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
1W..WU9# 12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
1W..WU9# 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-78010 |
1W..WU9# 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
1W..WU9# 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
1W..WU9# 12V 40A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
1W..WU9# 12V 40A |
2 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
1W..WU9# 12V 40A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
1W..WU9# 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-78010 |
1W..WU9# 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
1W..WU9# 12V 40A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56140 |
1W..WU9# 12V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
1W..WU9# 12V 40A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-54070 |
1W..WU9# 12V 40A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27356-78020 |
1W..WU9# 12V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27353-78010 |
1W..WU9# 12V 40A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
1W..WU9# 12V 40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
1W..WU9# 12V 40A |
2 | ||
| 27373 - HOLDER, ALTERNATOR BRUSH, A | ||||
| 27373-57070 |
1W..WU9# 12V 40A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-78010 |
1W..WU9# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27430-78010 |
1W..WU9# 12V 40A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
1W..WU9# 12V 40A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57060 |
1W..WU9# 12V 40A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
1W..WU9# 12V 40A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27447-56130 | ||||
| 28387-56070 | ||||
| 90019-10305 | ||||
| 90099-00937 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-20604 | ||||
| 90099-34013 | ||||
| 90101-10110 | ||||
| 90179-06158 | ||||
| 90201-10048 | ||||
| 93315-15012 | ||||
| 94110-71000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 1905 | ||||

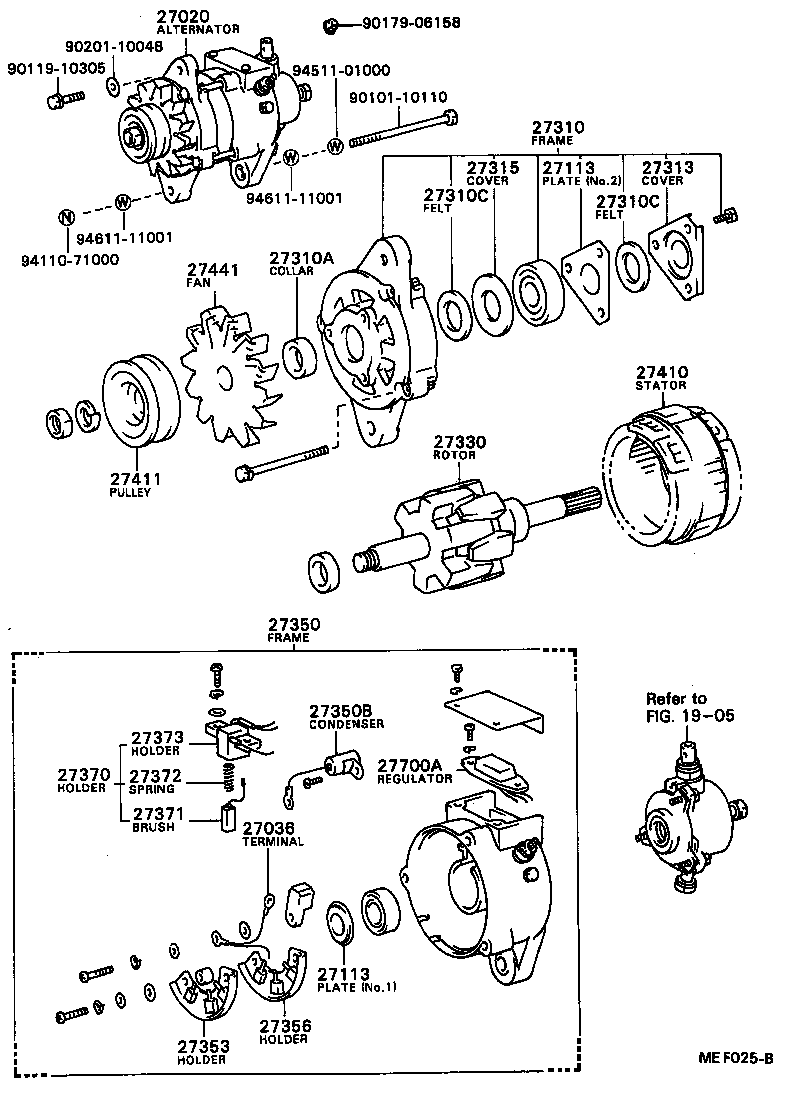

(8409- )1W
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27040-78030 |
1W..WU9# 12V 40A,12V 40A,W/VACUUM PUMP |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 90099-52066 |
1W..WU9# 12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
1W..WU9# 12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
1W..WU9# 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-78010 |
1W..WU9# 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
1W..WU9# 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
1W..WU9# 12V 40A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
1W..WU9# 12V 40A |
2 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
1W..WU9# 12V 40A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
1W..WU9# 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-78010 |
1W..WU9# 12V 40A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-56140 |
1W..WU9# 12V 40A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27356-78020 |
1W..WU9# 12V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27353-78010 |
1W..WU9# 12V 40A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
1W..WU9# 12V 40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
1W..WU9# 12V 40A |
2 | ||
| 27373 - HOLDER, ALTERNATOR BRUSH, A | ||||
| 27373-57070 |
1W..WU9# 12V 40A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-78010 |
1W..WU9# 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27430-78010 |
1W..WU9# 12V 40A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
1W..WU9# 12V 40A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-57060 |
1W..WU9# 12V 40A |
1 | ||
| Common parts | ||||
| 90101-10110 | ||||
| 90119-10305 | ||||
| 90179-06158 | ||||
| 90201-10048 | ||||
| 94110-71000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| Linked diagrams | ||||
| 1905 | ||||
