WU90R-MDDT3 (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

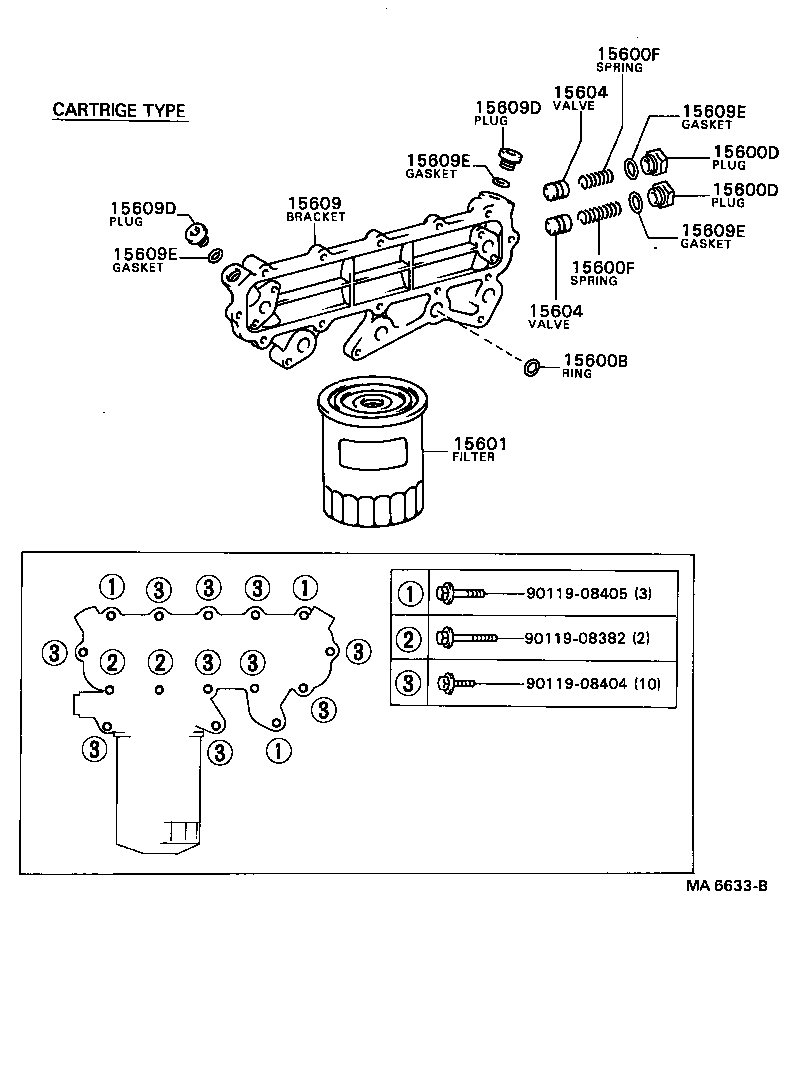

Click highlighted areas on diagram

diagram 15600B 15600D 15600D 15600F 15600F 15601 15604 15604 15609 15609D 15609D 15609E 15609E 15609E 15609E 9011908382 9011908404 9011908405
Part # Description Qty Price
15600B - RING, O, NO.1(FOR OIL FILTER)
90301-19005

1W..WU9#

 4
15600D - PLUG(FOR OIL FILTER)
15798-78010

1W..WU9#

 3
15600D - PLUG(FOR OIL FILTER)
15798-78010

1W..WU9#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
15661-78020

1W..WU9#

NO.2

 1
15661-78010

1W..WU9#

NO.1

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
15661-78020

1W..WU9#

NO.2

 1
15661-78010

1W..WU9#

NO.1

 2
15601 - FILTER SUB-ASSY, OIL
15601-78010

1W..WU9#

 1
15601-78020

1W..WU9#..GEN

ELEMENT TYPE

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15624-78010

1W..WU9#

 3
15604 - VALVE SUB-ASSY, OIL SAFETY
15624-78010

1W..WU9#

 3
15609 - BRACKET SUB-ASSY, OIL FILTER
15701-78010

1W..WU9#

 1
15701-78020

1W..WU9#..GEN

ELEMENT TYPE

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20006

1W..WU9#

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20006

1W..WU9#

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU9#

 5
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU9#

 5
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU9#

 5
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU9#

 5
Common parts
90119-08382
90119-08404
90119-08405

(8409- )1W

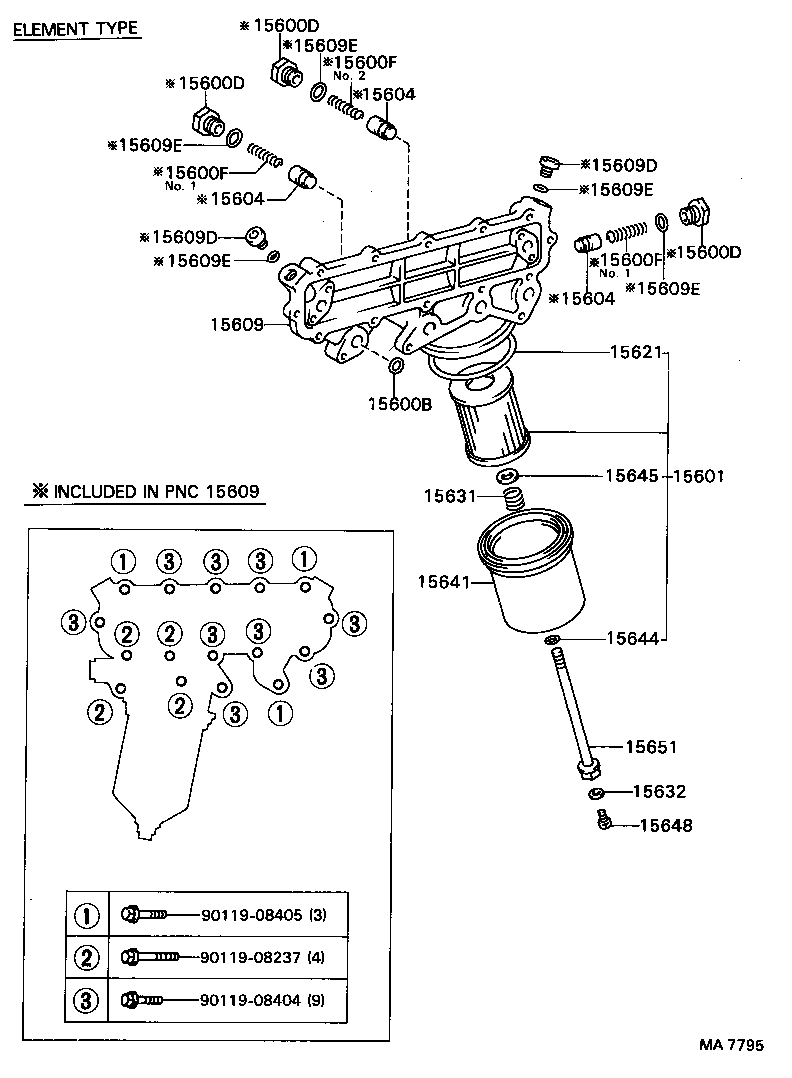

Click highlighted areas on diagram

diagram 15600B 15600D 15600D 15600D 15600F 15600F 15600F 15601 15604 15604 15604 15609 15609D 15609D 15609E 15609E 15609E 15609E 15609E 15621 15631 15632 15641 15644 15645 15648 15651 9011908237 9011908404 9011908405
Part # Description Qty Price
15600B - RING, O, NO.1(FOR OIL FILTER)
90301-19005

1W..WU9#

 4
15600D - PLUG(FOR OIL FILTER)
15798-78010

1W..WU9#

 3
15600D - PLUG(FOR OIL FILTER)
15798-78010

1W..WU9#

 3
15600D - PLUG(FOR OIL FILTER)
15798-78010

1W..WU9#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
15661-78020

1W..WU9#

NO.2

 1
15661-78010

1W..WU9#

NO.1

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
15661-78020

1W..WU9#

NO.2

 1
15661-78010

1W..WU9#

NO.1

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
15661-78020

1W..WU9#

NO.2

 1
15661-78010

1W..WU9#

NO.1

 2
15601 - FILTER SUB-ASSY, OIL
15601-78010

1W..WU9#

 1
15601-78020

1W..WU9#..GEN

ELEMENT TYPE

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15624-78010

1W..WU9#

 3
15604 - VALVE SUB-ASSY, OIL SAFETY
15624-78010

1W..WU9#

 3
15604 - VALVE SUB-ASSY, OIL SAFETY
15624-78010

1W..WU9#

 3
15609 - BRACKET SUB-ASSY, OIL FILTER
15701-78010

1W..WU9#

 1
15701-78020

1W..WU9#..GEN

ELEMENT TYPE

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20006

1W..WU9#

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20006

1W..WU9#

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU9#

 5
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU9#

 5
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU9#

 5
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU9#

 5
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90301-99025

1W..WU9#

 5
15621 - GASKET, OIL FILTER BODY
90301-99040

1W..WU9#..GEN

ELEMENT TYPE

 1
15631 - SPRING, OIL FILTER ELEMENT SUPPORT
15615-78010

1W..WU9#..GEN

ELEMENT TYPE

 1
15632 - GASKET, OIL FILTER ELEMENT
90301-07008

1W..WU9#..GEN

ELEMENT TYPE

 1
15641 - CASE, OIL FILTER
15614-78010

1W..WU9#..GEN

ELEMENT TYPE

 1
15644 - GASKET, OIL FILTER CARTRIDGE GUIDE
90301-15005

1W..WU9#..GEN

ELEMENT TYPE

 1
15645 - WASHER, OIL FILTER CARTRIDGE GUIDE
15629-78010

1W..WU9#..GEN

ELEMENT TYPE

 1
15648 - PLUG, OIL FILTER DRAIN
15643-78010

1W..WU9#..GEN

ELEMENT TYPE

 1
15651 - BOLT(FOR OIL FILTER GUIDE)
15651-78010

1W..WU9#..GEN

ELEMENT TYPE

 1
Common parts
90119-08237
90119-08404
90119-08405
