WU90R-MDDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )WU9#..RHD

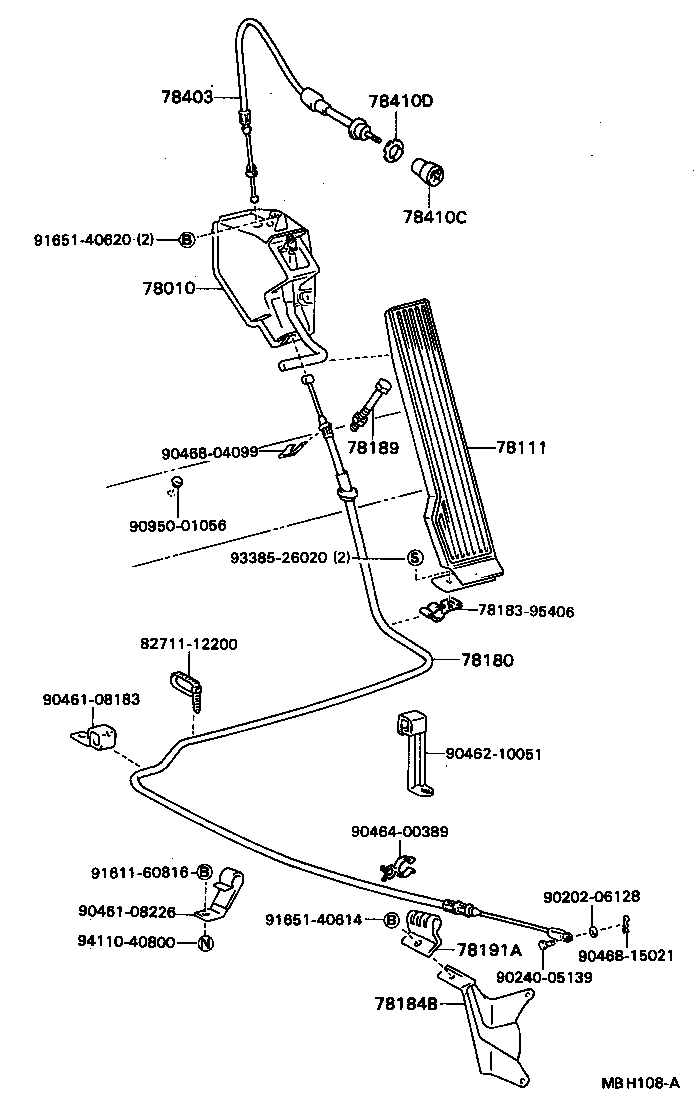

Click highlighted areas on diagram

diagram 78010 78111 78180 7818395406 78184B 78189 78191A 78403 78410C 78410D 8271112200 9020206128 9024005139 9046108183 9046108226 9046210051 9046400389 9046804099 9046815021 9095001056 9161160816 9165140614 9165140620 9338526020 9411040800
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78202-95402

RU85,WU9#..RHD

 1
78111 - PEDAL, ACCELERATOR
78110-95410

RU85,WU9#,YU60,62,8#..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95468

WU9#..RHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95401

WU9#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95400

RU85,WU9#,YU60,62,8#..RHD

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
90461-10434

WU9#

 1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78404-95400

WU9#,YU60,80..RHD

 1
78404-95011

RU85,WU9#,YU60,62,8#..RHD

 1
78410C - KNOB, THROTTLE CABLE
78411-22010

RU75,85,WU9#,YU6#,7#,8#

 1
78410D - NUT, THROTTLE
78413-95J00

RU75,85,WU9#,YU6#,70,80

 1
78314-95010

RU75,85,WU9#,YU6#,7#,8#

 1
Common parts
78183-95406
82711-12200
90202-06128
90240-05139
90461-08183
90461-08226
90462-10051
90464-00389
90468-04099
90468-15021
90950-01056
91611-60816
91651-40614
91651-40620
93385-26020
94110-40800
