WU90R-MDDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44629 44635 44642 44696 44730 44758 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-36090

WU9#

 1
04443-36091

WU9#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-36220

WU9#

 1
44608-25150

RU85,WU9#

 1
44610 - BOOSTER ASSY, BRAKE
44610-36320

WU9#..RHD

 1
44610-36321

WU9#..RHD

 1
44642 - PISTON, BRAKE BOOSTER
44642-36220

WU9#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

WU9#

 1
Common parts
90179-08038

(8409- )

Click highlighted areas on diagram

diagram 44704 44729 44730 44743 44754B 44761 44764 44764 44764A 44764F 44768 44768 44771 44772 44774 44774 44776 44778 44778 9011908453 9011910429 9017908146 9046110408 9046110494 9046110494 9046110573 9046110573 9046110573 9046110573 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9165140816 9165140816 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411041000
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-36160

WU9#..RHD

 1
44729 - GASKET, VACUUM TUBE
44729-36020

RU75,85,WU9#,YU6#,7#,8#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

WU9#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09103

WU9#

 1
44754B - BRACKET, VACUUM TUBE
44754-36030

RU85,WU9#..RHD

 1
44764 - TUBE, BOOSTER VACUUM
44764-36330

RU85,WU9#..RHD

 1
44764 - TUBE, BOOSTER VACUUM
44764-36330

RU85,WU9#..RHD

 1
44764A - HOSE, BOOSTER VACUUM
95441-09200

WU9#

 1
44764F - WAY(FOR BOOSTER VACUUM TUBE)
90413-09028

WU9#..RHD

 1
44768 - TUBE, BOOSTER VACUUM
44768-36020

RU85,WU9#,YU60,62,8#..RHD

 1
44768-36040

WU9#..RHD

W/CLUTCH BOOSTER

 1
44768 - TUBE, BOOSTER VACUUM
44768-36020

RU85,WU9#,YU60,62,8#..RHD

 1
44768-36040

WU9#..RHD

W/CLUTCH BOOSTER

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-36060

WU9#..RHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-14032

WU9#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36110

WU9#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36110

WU9#

 1
44776 - HOSE, BRAKE BOOSTER
44776-36050

RU85,WU9#..RHD

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-36010

WU9#..RHD

 1
44778-36030

WU9#..RHD

W/CLUTCH BOOSTER

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-36010

WU9#..RHD

 1
44778-36030

WU9#..RHD

W/CLUTCH BOOSTER

 1
Common parts
90119-08453
90119-10429
90179-08146
90461-10408
90461-10494
90461-10573
90467-16002
91611-60820
91651-40816
94110-40800
94110-41000

(8409- )

Click highlighted areas on diagram

diagram 44704 44729 44730 44743 44754B 44761 44764 44764 44764A 44764F 44768 44768 44771 44772 44774 44774 44774 44776 44778 44778 9011908063 9011908453 9011910429 9017908146 9040509084 9040509085 9046110573 9046110573 9046110573 9046110573 9046110573 9046110708 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9165140816 9165140816 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411041000
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-36160

WU9#..RHD

 1
44729 - GASKET, VACUUM TUBE
44729-36020

RU75,85,WU9#,YU6#,7#,8#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

WU9#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09103

WU9#

 1
44754B - BRACKET, VACUUM TUBE
44754-36030

RU85,WU9#..RHD

 1
44764 - TUBE, BOOSTER VACUUM
44764-36330

RU85,WU9#..RHD

 1
44764 - TUBE, BOOSTER VACUUM
44764-36330

RU85,WU9#..RHD

 1
44764A - HOSE, BOOSTER VACUUM
95441-09200

WU9#

 1
44764F - WAY(FOR BOOSTER VACUUM TUBE)
90413-09028

WU9#..RHD

 1
44768 - TUBE, BOOSTER VACUUM
44768-36020

RU85,WU9#,YU60,62,8#..RHD

 1
44768-36040

WU9#..RHD

W/CLUTCH BOOSTER

 1
44768 - TUBE, BOOSTER VACUUM
44768-36020

RU85,WU9#,YU60,62,8#..RHD

 1
44768-36040

WU9#..RHD

W/CLUTCH BOOSTER

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-36060

WU9#..RHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-14032

WU9#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36110

WU9#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36110

WU9#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36110

WU9#

 1
44776 - HOSE, BRAKE BOOSTER
44776-36050

RU85,WU9#..RHD

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-36010

WU9#..RHD

 1
44778-36030

WU9#..RHD

W/CLUTCH BOOSTER

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-36010

WU9#..RHD

 1
44778-36030

WU9#..RHD

W/CLUTCH BOOSTER

 1
Common parts
90119-08063
90119-08453
90119-10429
90179-08146
90405-09084
90405-09085
90461-10573
90461-10708
90467-16002
91611-60820
91651-40816
94110-40800
94110-41000

(8409- )

Click highlighted areas on diagram

diagram 44729 44729 44730F 44754B 44754B 44764 44764 44768 44768 44771 44771 44774 44774 44776 44776 9046110573 9046110573 9046110573 9046110573 9046110573 9046212040 9046212040 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9161140820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9165140816 9165140816 9165140816 9165140816 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-36020

RU75,85,WU9#,YU6#,7#,8#

 1
44729 - GASKET, VACUUM TUBE
44729-36020

RU75,85,WU9#,YU6#,7#,8#

 1
44754B - BRACKET, VACUUM TUBE
44754-36030

RU85,WU9#..RHD

 1
44754B - BRACKET, VACUUM TUBE
44754-36030

RU85,WU9#..RHD

 1
44764 - TUBE, BOOSTER VACUUM
44764-36330

RU85,WU9#..RHD

 1
44764 - TUBE, BOOSTER VACUUM
44764-36330

RU85,WU9#..RHD

 1
44768 - TUBE, BOOSTER VACUUM
44768-36020

RU85,WU9#,YU60,62,8#..RHD

 1
44768-36040

WU9#..RHD

W/CLUTCH BOOSTER

 1
44768 - TUBE, BOOSTER VACUUM
44768-36020

RU85,WU9#,YU60,62,8#..RHD

 1
44768-36040

WU9#..RHD

W/CLUTCH BOOSTER

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-36060

WU9#..RHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-36060

WU9#..RHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36110

WU9#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36110

WU9#

 1
44776 - HOSE, BRAKE BOOSTER
44776-36050

RU85,WU9#..RHD

 1
44776 - HOSE, BRAKE BOOSTER
44776-36050

RU85,WU9#..RHD

 1
Common parts
90461-10573
90462-12040
90467-16002
91611-40820
91611-60820
91651-40816
94110-40800

(8409- )

Click highlighted areas on diagram

diagram 44729 44729 44730F 44730F 44764 44764 44764A 44765 44768 44768 44771 44771 44774 44774 44776 44776 9011910429 9011910429 9046110573 9046110573 9046110573 9046110573 9046110573 9046110708 9046110708 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9165140816 9165140816 9165140816 9165140816 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411041000 9411041000
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-36020

RU75,85,WU9#,YU6#,7#,8#

 1
44729 - GASKET, VACUUM TUBE
44729-36020

RU75,85,WU9#,YU6#,7#,8#

 1
44764 - TUBE, BOOSTER VACUUM
44764-36330

RU85,WU9#..RHD

 1
44764 - TUBE, BOOSTER VACUUM
44764-36330

RU85,WU9#..RHD

 1
44764A - HOSE, BOOSTER VACUUM
95441-09200

WU9#

 1
44768 - TUBE, BOOSTER VACUUM
44768-36020

RU85,WU9#,YU60,62,8#..RHD

 1
44768-36040

WU9#..RHD

W/CLUTCH BOOSTER

 1
44768 - TUBE, BOOSTER VACUUM
44768-36020

RU85,WU9#,YU60,62,8#..RHD

 1
44768-36040

WU9#..RHD

W/CLUTCH BOOSTER

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-36060

WU9#..RHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-36060

WU9#..RHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36110

WU9#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-36110

WU9#

 1
44776 - HOSE, BRAKE BOOSTER
44776-36050

RU85,WU9#..RHD

 1
44776 - HOSE, BRAKE BOOSTER
44776-36050

RU85,WU9#..RHD

 1
Common parts
90119-10429
90461-10573
90461-10708
90467-16002
91611-60820
91651-40816
94110-40800
94110-41000

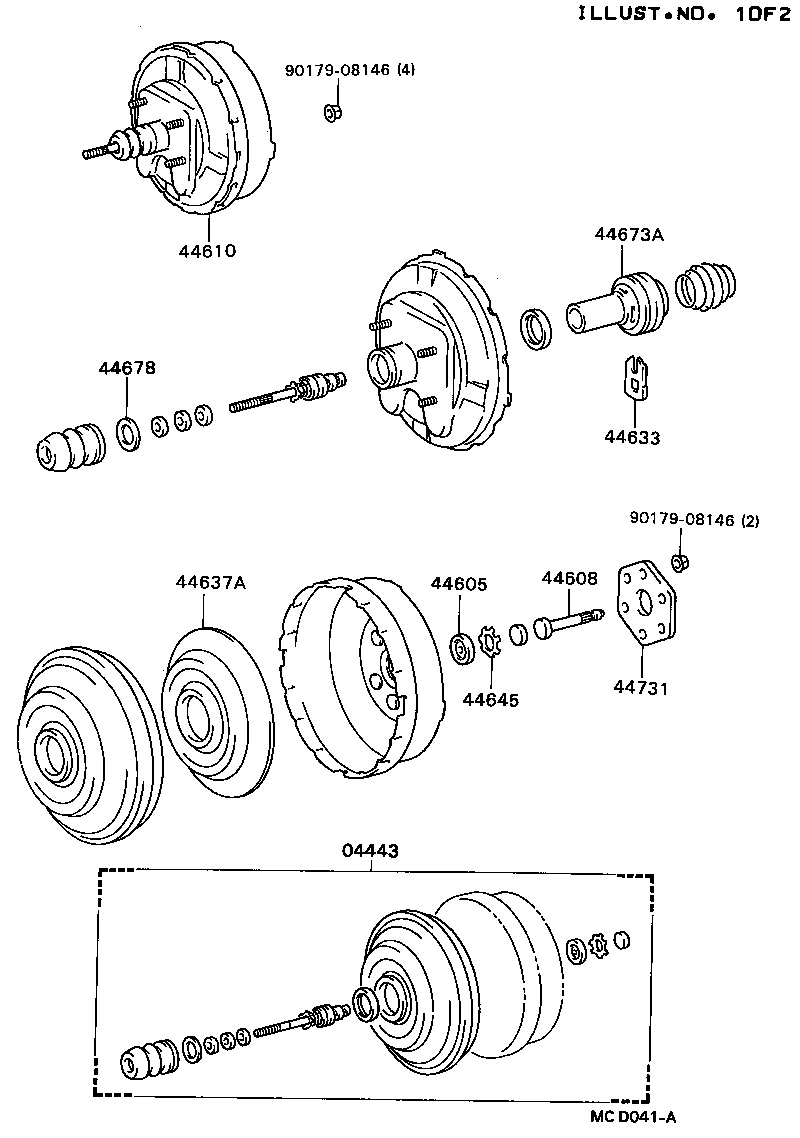

(8508- )WU9#

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44678 44731 9017908146 9017908146
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-36090

WU9#

 1
04443-36091

WU9#

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-36220

WU9#

 1
44605-36220

RU85,WU9#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-36220

WU9#

 1
44608-25150

RU85,WU9#

 1
44610 - BOOSTER ASSY, BRAKE
44610-36320

WU9#..RHD

 1
44610-36321

WU9#..RHD

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

RU85,WU9#

 1
44633-22020

WU9#

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-25150

RU85,WU9#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-36220

WU9#

 1
44645-36220

RU85,WU9#

 1
44673A - BODY, BOOSTER VALVE
44673-36321

WU9#

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-22020

WU9#

 1
44678-28130

RU85,WU9#

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44647-36220

WU9#

 1
44647-25150

RU85,WU9#

 1
Common parts
90179-08146
