WU90R-MDDT (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1987
Engine
1W
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )WU9#

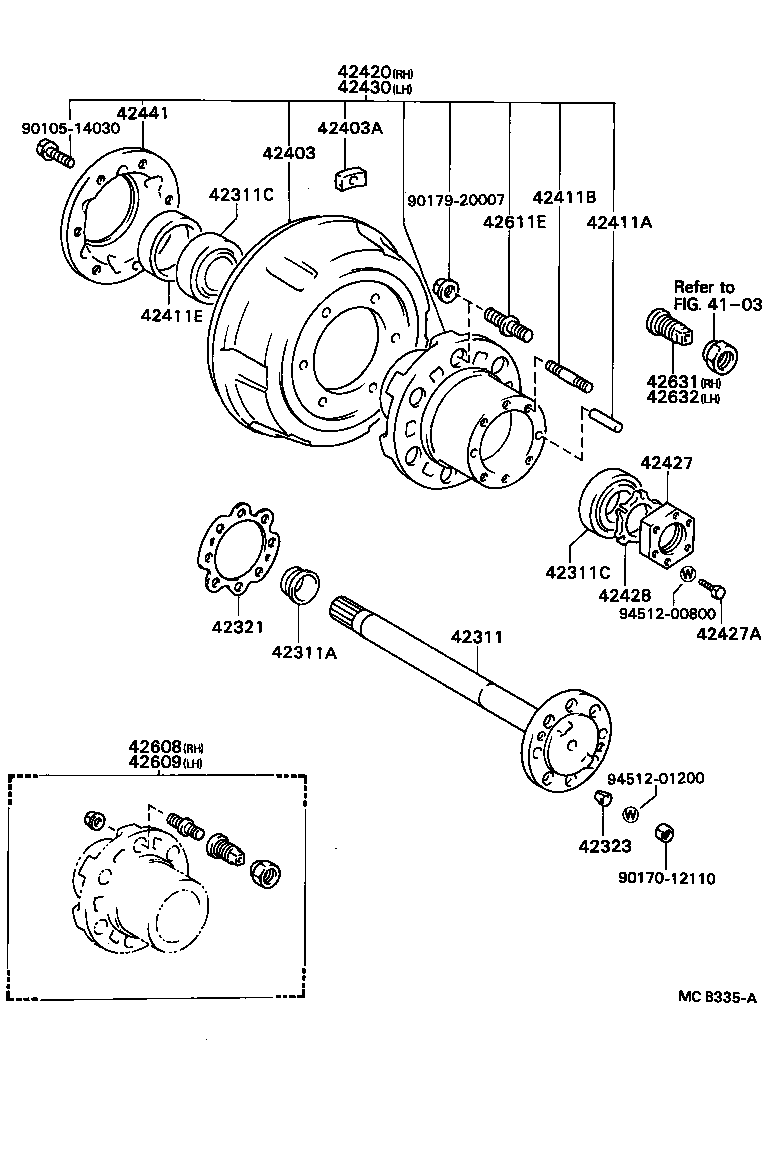

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36130 |
WU9# |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-41001 |
WU9# |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90368-57046 |
WU9# OUTER |
2 | ||
| 90368-66006 |
WU9# INNER |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90368-57046 |
WU9# OUTER |
2 | ||
| 90368-66006 |
WU9# INNER |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36020 |
WU9# |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36020 |
WU9# |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36110 |
WU9# |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01117 |
RU75,85,WU9#,YU6#,80..WT 10G,10G |
1 | ||
| 90937-01122 |
RU75,85,WU9#,YU6#,8#..WT 60G,60G |
1 | ||
| 90937-01120 |
RU75,85,WU9#,YU6#,80..WT 40G,40G |
1 | ||
| 90937-01119 |
RU75,85,WU9#,YU6#,80..WT 30G,30G |
1 | ||
| 90937-01118 |
RU75,85,WU9#,YU6#,80..WT 20G,20G |
1 | ||
| 90937-01121 |
WU9# 50G,50G |
1 | ||
| 90937-01120 |
WU9# 40G,40G |
1 | ||
| 90937-01121 |
RU75,85,WU9#,YU6#,80..WT 50G,50G |
1 | ||
| 90937-01117 |
WU9# 10G,10G |
1 | ||
| 90937-01119 |
WU9# 30G,30G |
1 | ||
| 90937-01118 |
WU9# 20G,20G |
1 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-13066 |
WU9# |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-12009 |
WU9# |
12 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-88102 |
WU9# |
2 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36120 |
WU9# |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36020 |
WU9# |
2 | ||
| 42427A - BOLT (FOR REAR AXLE BEARING LOCK NUT SET) | ||||
| 90109-08015 |
WU9# |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 90214-57002 |
WU9# |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36120 |
WU9# |
1 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-36040 |
WU9# |
2 | ||
| 42608 - BOLT SUB-ASSY, REAR AXLE HUB, RH | ||||
| 42608-36040 |
WU9# |
6 | ||
| 42609 - BOLT SUB-ASSY, REAR AXLE HUB, LH | ||||
| 42609-36040 |
WU9# |
6 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02045 |
RU75,85,WU9#,YU6#,8#..WT RH |
6 | ||
| 90942-02046 |
RU75,85,WU9#,YU6#,8#..WT LH |
6 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-55031 |
RU75,85,WU9#,YU6#,8#..WT |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-55031 |
RU75,85,WU9#,YU6#,8#..WT |
6 | ||
| Common parts | ||||
| 90105-14030 | ||||
| 90170-12110 | ||||
| 90179-20007 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| Linked diagrams | ||||
| 4103 | ||||
