WU90R-MDDT (1984)
Toyota Dyna

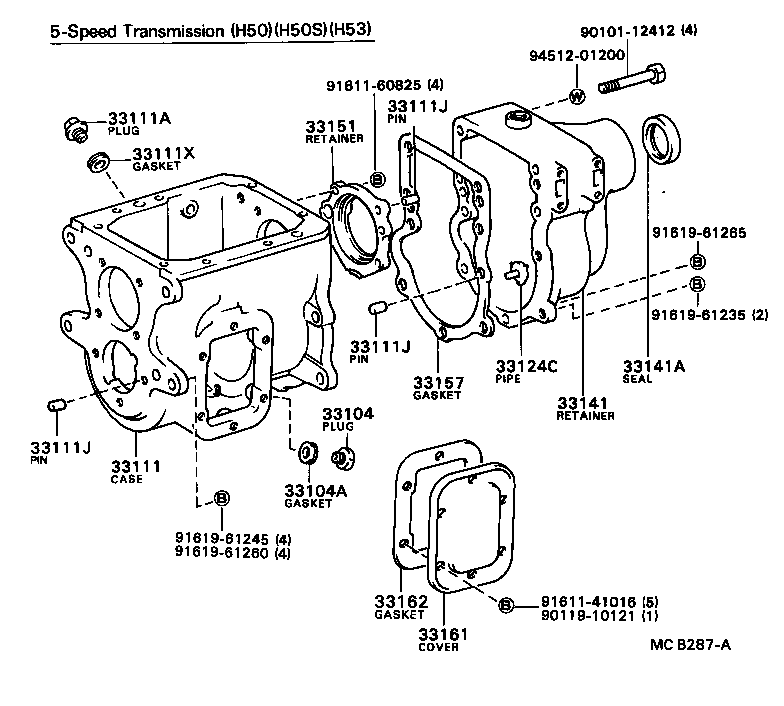

(8409-8508)WU9# ; (8508- )WU9#..ARL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
WU9#..GEN |
1 | ||
| 90341-18057 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-36080 |
WU9# |
1 | ||
| 33101-36050 |
WU9#..GEN |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12216 |
RU75,85,WU9#,YU6#,70,80 L=14,OD=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
RU75,85,WU9#,YU6#,7#,8# L=17,OD=12 |
2 | ||
| 90250-10214 |
WU9# L=14,OD=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
RU75,85,WU9#,YU6#,7#,8# L=14,OD=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
RU75,85,WU9#,YU6#,70,80 L=17,OD=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12216 |
RU75,85,WU9#,YU6#,70,80 L=14,OD=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
RU75,85,WU9#,YU6#,7#,8# L=17,OD=12 |
2 | ||
| 90250-10214 |
WU9# L=14,OD=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
RU75,85,WU9#,YU6#,7#,8# L=14,OD=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
RU75,85,WU9#,YU6#,70,80 L=17,OD=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12216 |
RU75,85,WU9#,YU6#,70,80 L=14,OD=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
RU75,85,WU9#,YU6#,7#,8# L=17,OD=12 |
2 | ||
| 90250-10214 |
WU9# L=14,OD=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
RU75,85,WU9#,YU6#,7#,8# L=14,OD=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
RU75,85,WU9#,YU6#,70,80 L=17,OD=12 |
2 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
WU9#..GEN |
1 | ||
| 33124-36010 |
WU9# |
1 | ||
| 33141 - RETAINER, TRANSMISSION BEARING, REAR | ||||
| 33141-36090 |
WU9# |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-45001 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 90311-48011 |
WU9#..GEN |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-36030 |
WU9# |
1 | ||
| 33017-36010 |
WU9#..GEN |
1 | ||
| 33157 - GASKET, TRANSMISSION CASE, NO.2 | ||||
| 33142-36030 |
WU9# |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| Common parts | ||||
| 90101-12412 | ||||
| 90119-10121 | ||||
| 91611-41016 | ||||
| 91611-60825 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91619-61260 | ||||
| 91619-61265 | ||||
| 94512-01200 | ||||

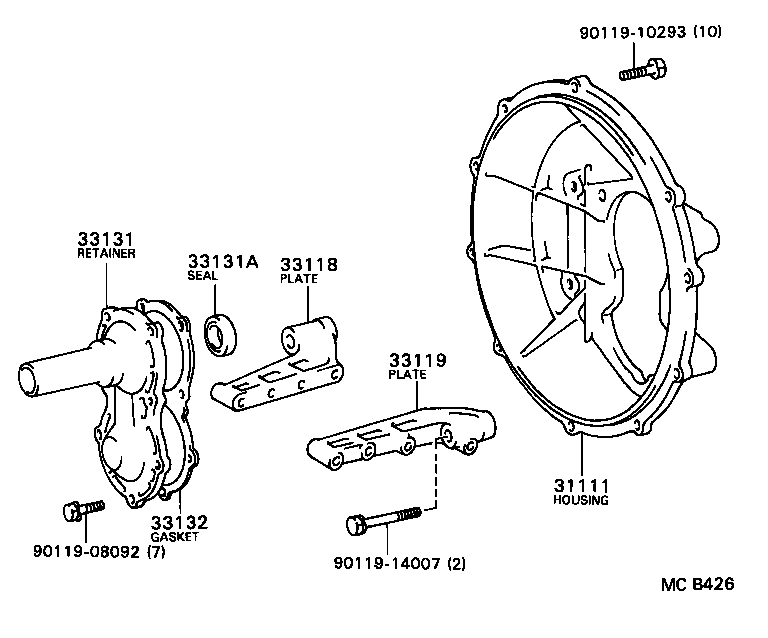

(8409-8508)WU9# ; (8508- )WU9#..GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36130 |
WU9# |
1 | ||
| 31111-36210 |
WU9#..GEN |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-89102 |
WU9# |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-89101 |
WU9# |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-60020 |
WU9# |
1 | ||
| 33018-36050 |
WU9#..GEN |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-28004 |
WU9# |
1 | ||
| 90311-32012 |
WU9#..GEN |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-36010 |
WU9# |
1 | ||
| Common parts | ||||
| 90119-08092 | ||||
| 90119-10293 | ||||
| 90119-14007 | ||||
(8508- )WU9#..GEN ; (8508- )RU75,85,YU6#,7#,8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
WU9#..GEN |
1 | ||
| 90341-18057 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-36080 |
WU9# |
1 | ||
| 33101-36050 |
WU9#..GEN |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-16050 |
WU9#..GEN OD=12,L=17 |
3 | ||
| 96411-11600 |
WU9#..GEN OD=12,L=17 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12216 |
RU75,85,WU9#,YU6#,70,80 L=14,OD=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
RU75,85,WU9#,YU6#,7#,8# L=17,OD=12 |
2 | ||
| 90250-10214 |
WU9# L=14,OD=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
RU75,85,WU9#,YU6#,7#,8# L=14,OD=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
RU75,85,WU9#,YU6#,70,80 L=17,OD=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12216 |
RU75,85,WU9#,YU6#,70,80 L=14,OD=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
RU75,85,WU9#,YU6#,7#,8# L=17,OD=12 |
2 | ||
| 90250-10214 |
WU9# L=14,OD=10,OD=10,L=14 |
1 | ||
| 90250-12216 |
RU75,85,WU9#,YU6#,7#,8# L=14,OD=12,OD=12,L=14 |
2 | ||
| 90250-12146 |
RU75,85,WU9#,YU6#,70,80 L=17,OD=12 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
WU9#..GEN L=11,OD=11,OD=11 |
1 | ||
| 90253-13017 |
WU9#..GEN L=12,OD=13,OD=13 |
2 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36030 |
WU9#..GEN |
1 | ||
| 33124-36010 |
WU9# |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-60020 |
WU9# |
1 | ||
| 33018-36050 |
WU9#..GEN |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-28004 |
WU9# |
1 | ||
| 90311-32012 |
WU9#..GEN |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-45001 |
RU75,85,WU9#,YU6#,70,80 |
1 | ||
| 90311-48011 |
WU9#..GEN |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-36030 |
WU9# |
1 | ||
| 33017-36010 |
WU9#..GEN |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
RU75,85,WU9#,YU6#,7#,8# |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
WU9#..GEN |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10121 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 91611-60610 | ||||
| 91611-60812 | ||||
| 91611-61016 | ||||
| 91611-61030 | ||||
| 91611-61045 | ||||
