WU90R-MDDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 9046816142 9411041000 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-36110

WU9#..RHD

W/CLUTCH BOOSTER

 1
31301-36120

RU85,WU9#..RHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35004

RU75,85,WU9#,YU6#,7#,8#

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

RU75,85,WU9#,YU6#,7#,8#

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

RU75,85,WU9#,YU6#,7#,8#

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

RU75,85,WU9#,YU6#,7#,8#

 2
31321 - PAD, CLUTCH PEDAL
31321-36010

RU75,85,WU9#,YU6#,7#,8#

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

RU75,85,WU9#,YU6#,7#,8#

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

RU75,85,WU9#,YU6#,7#,8#

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

RU75,85,WU9#,YU6#,7#,8#

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

RU75,85,WU9#,YU6#,7#,8#

 1
Common parts
90468-16142
94110-41000
94120-40800
94512-01000

(8409- )WU9#

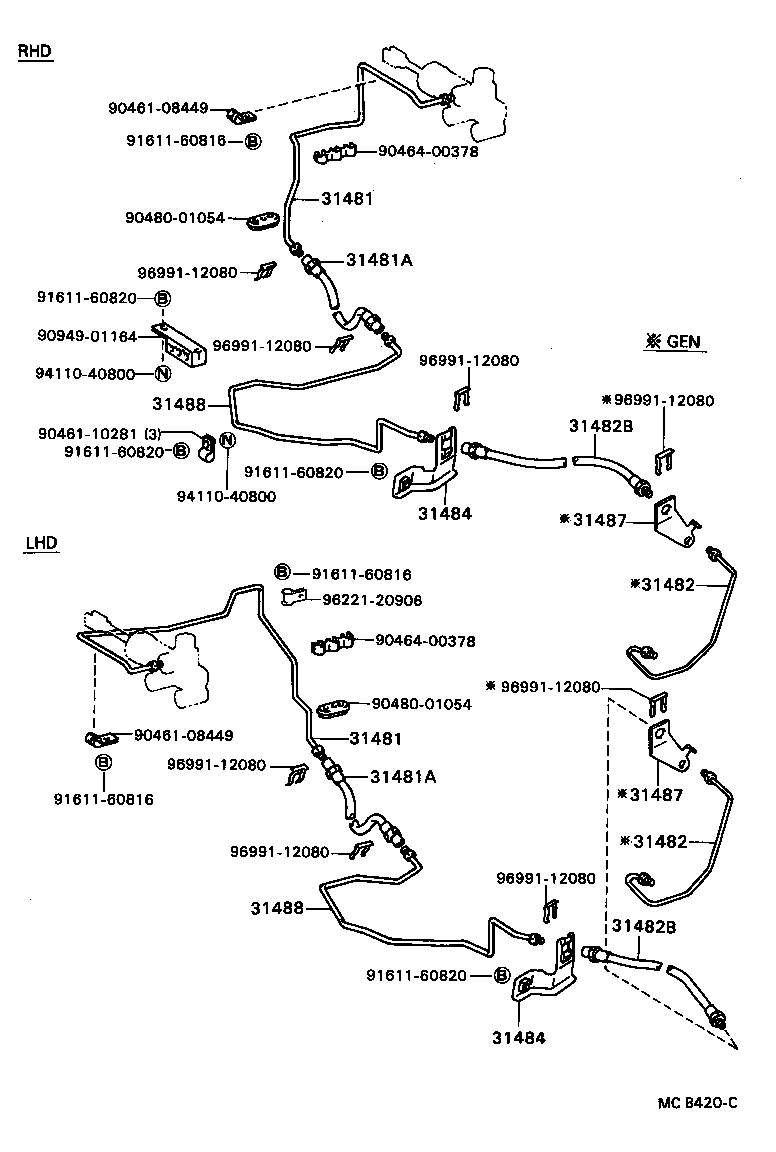

Click highlighted areas on diagram

diagram 31481 31481 31481A 31481A 31482 31482 31482B 31482B 31484 31484 31487 31487 31488 31488 9046108449 9046108449 9046110281 9046400378 9046400378 9048001054 9048001054 9094901164 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9161160820 9411040800 9411040800 9622120906 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-36250

WU9#..RHD

W/CLUTCH BOOSTOR

 1
31481-36240

RU85,WU9#..RHD

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-36250

WU9#..RHD

W/CLUTCH BOOSTOR

 1
31481-36240

RU85,WU9#..RHD

 1
31481A - HOSE, CLUTCH, NO.1
96932-34305

RU75,85,WU9#

 1
31481A - HOSE, CLUTCH, NO.1
96932-34305

RU75,85,WU9#

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-36181

WU9#..GEN

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-36181

WU9#..GEN

 1
31482B - HOSE, CLUTCH, NO.2
90931-01030

WU9#..GEN

 1
90931-01013

WU9#

 1
31482B - HOSE, CLUTCH, NO.2
90931-01030

WU9#..GEN

 1
90931-01013

WU9#

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-36090

WU9#..ARL,GEN

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-36090

WU9#..ARL,GEN

 1
31487 - PLATE, RELEASE TUBE SET
31487-36130

WU9#..GEN

 1
31487 - PLATE, RELEASE TUBE SET
31487-36130

WU9#..GEN

 1
31488 - TUBE, CONNECTOR TO TUBE CONNECTOR
31488-36330

WU9#..RHD

 1
31488-36210

WU9#..RHD

 1
31488 - TUBE, CONNECTOR TO TUBE CONNECTOR
31488-36330

WU9#..RHD

 1
31488-36210

WU9#..RHD

 1
Common parts
90461-08449
90461-10281
90464-00378
90480-01054
90949-01164
91611-60816
91611-60820
94110-40800
96221-20906
96991-12080
