WU90R-MDDT (1984)
Toyota Dyna
Production
Sep 1984
-
Aug 1987
Engine
1W
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )1W

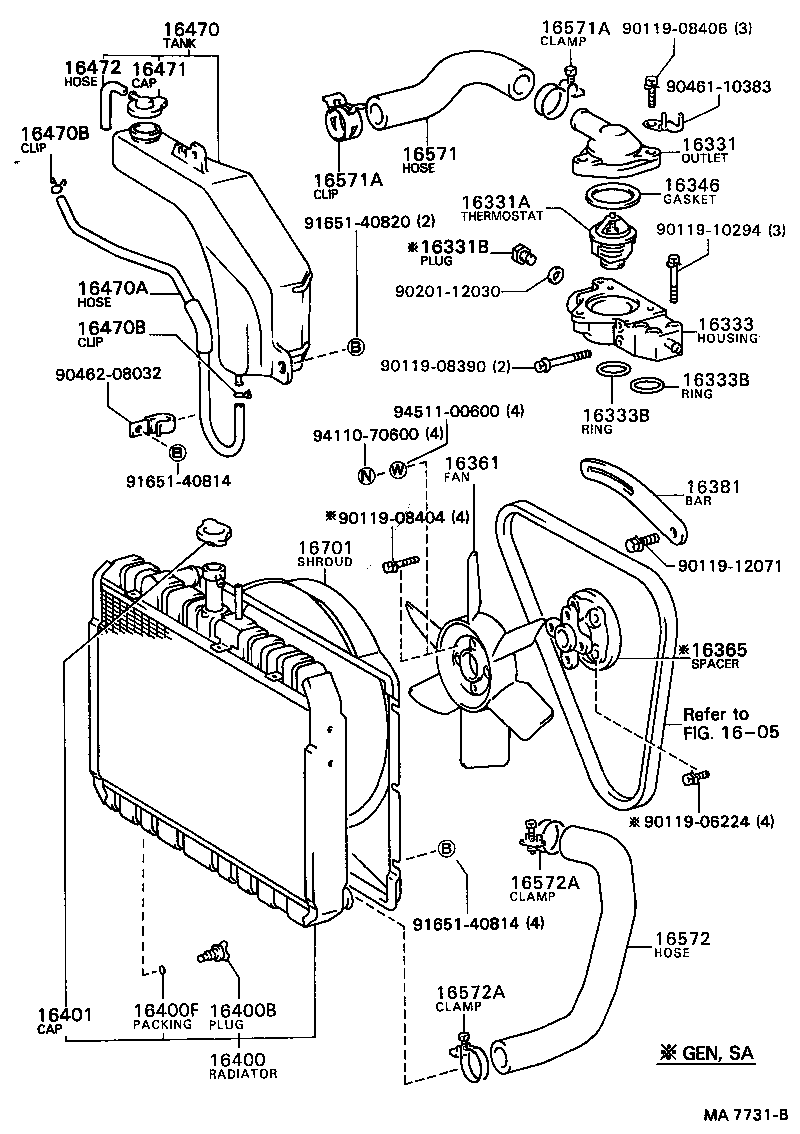

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-78010 |
1W..WU9# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03076 |
1W..WU9# *WAX 82-95 |
1 | ||
| 90916-03067 |
1W..WU9# *WAX 82-95,*WAX 82-95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90341-12010 |
1W..WU9#..GEN,SA |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78010 |
1W..WU9# |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90301-31001 |
1W..WU9# |
2 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 90301-31001 |
1W..WU9# |
2 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-78010 |
1W..WU9# |
1 | ||
| 16361 - FAN | ||||
| 16361-78020 |
1W..WU9#..GEN |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-78010 |
1W..WU9#..GEN,SA |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-78020 |
1W..WU9# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-58120 |
1W..WU9#..GEN |
1 | ||
| 16400-58121 |
1W..WU9#..GEN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24051 |
1W..WU9#..ARL,GEN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
1W..WU9#..ARL,GEN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1W..WU9# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-58020 |
1W..WU9# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12143 |
1W..WU9# L=620 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1W..WU9# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1W..WU9# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-56070 |
1W..WU9# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
1W..WU9# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-78020 |
1W..WU9# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1W..WU9# RADIATOR SIDE |
1 | ||
| 96111-10510 |
1W..WU9# WATER OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1W..WU9# RADIATOR SIDE |
1 | ||
| 96111-10510 |
1W..WU9# WATER OUTLET SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-78010 |
1W..WU9# |
1 | ||
| 16572-78011 |
1W..WU9# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-55008 |
1W..WU9# WATER PUMP SIDE |
1 | ||
| 96111-10560 |
1W..WU9# WATER PUMP SIDE |
1 | ||
| 96111-10510 |
1W..WU9# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-55008 |
1W..WU9# WATER PUMP SIDE |
1 | ||
| 96111-10560 |
1W..WU9# WATER PUMP SIDE |
1 | ||
| 96111-10510 |
1W..WU9# RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-58040 |
1W..WU9# |
1 | ||
| Common parts | ||||
| 90119-06224 | ||||
| 90119-08390 | ||||
| 90119-08404 | ||||
| 90119-08406 | ||||
| 90119-10294 | ||||
| 90119-12071 | ||||
| 90201-12030 | ||||
| 90461-10383 | ||||
| 90462-08032 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 94110-70600 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 1605 | ||||
