WU90R-MDDT (1984)

Toyota Dyna

Production Sep 1984 - Aug 1987
Engine 1W
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )1W

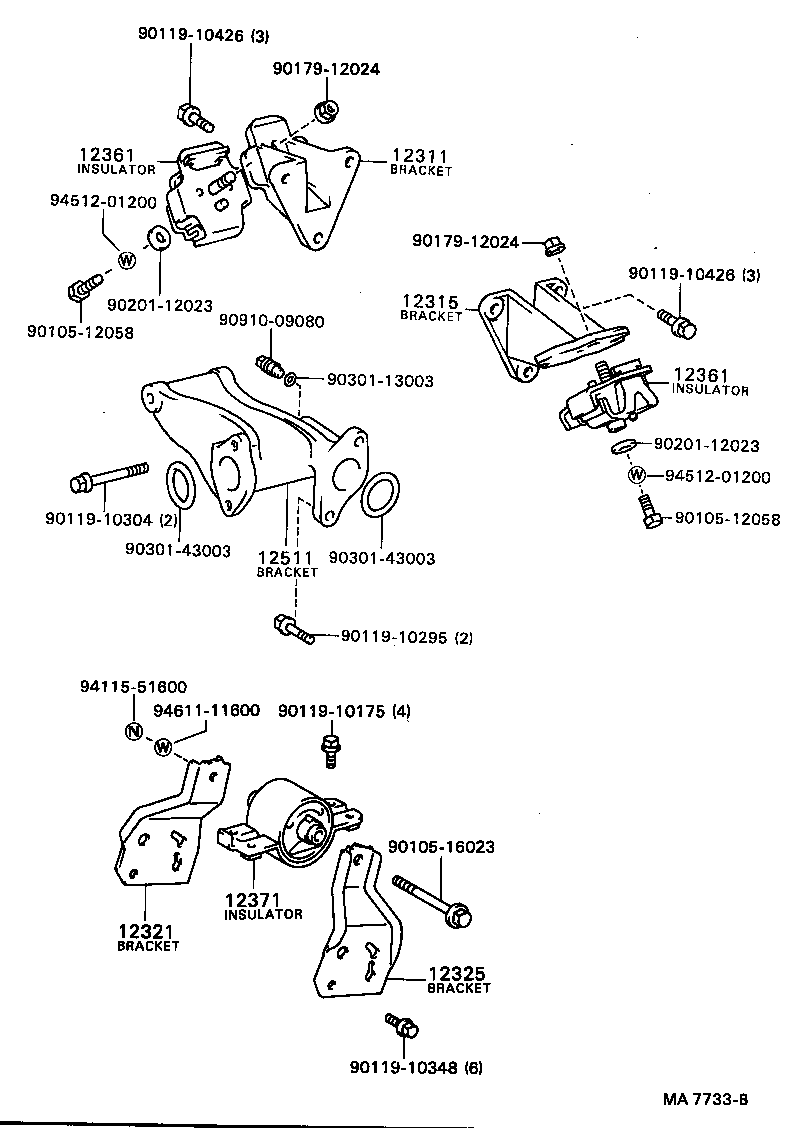

Click highlighted areas on diagram

diagram 12311 12315 12321 12325 12361 12361 12371 12511 9010512058 9010512058 9010516023 9011910175 9011910295 9011910304 9011910348 9011910426 9011910426 9017912024 9017912024 9020112023 9020112023 9030113003 9030143003 9030143003 9091009080 9411551600 9451201200 9451201200 9461111600
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-78020

1W..WU9#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12311-78020

1W..WU9#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-58040

1W..WU9#

 1
12321-58050

1W..WU9#..GEN

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-58050

1W..WU9#..GEN

 1
12325-58040

1W..WU9#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58040

1W..WU9#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-58040

1W..WU9#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-56040

1W..WU9#

 1
12371-56040

1W..WU9#..ARL,GEN

 1
12371-56041

1W..WU9#..ARL,GEN

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-78010

1W..WU9#

 1
Common parts
90105-12058
90105-16023
90119-10175
90119-10295
90119-10304
90119-10348
90119-10426
90179-12024
90201-12023
90301-13003
90301-43003
90910-09080
94115-51600
94512-01200
94611-11600
